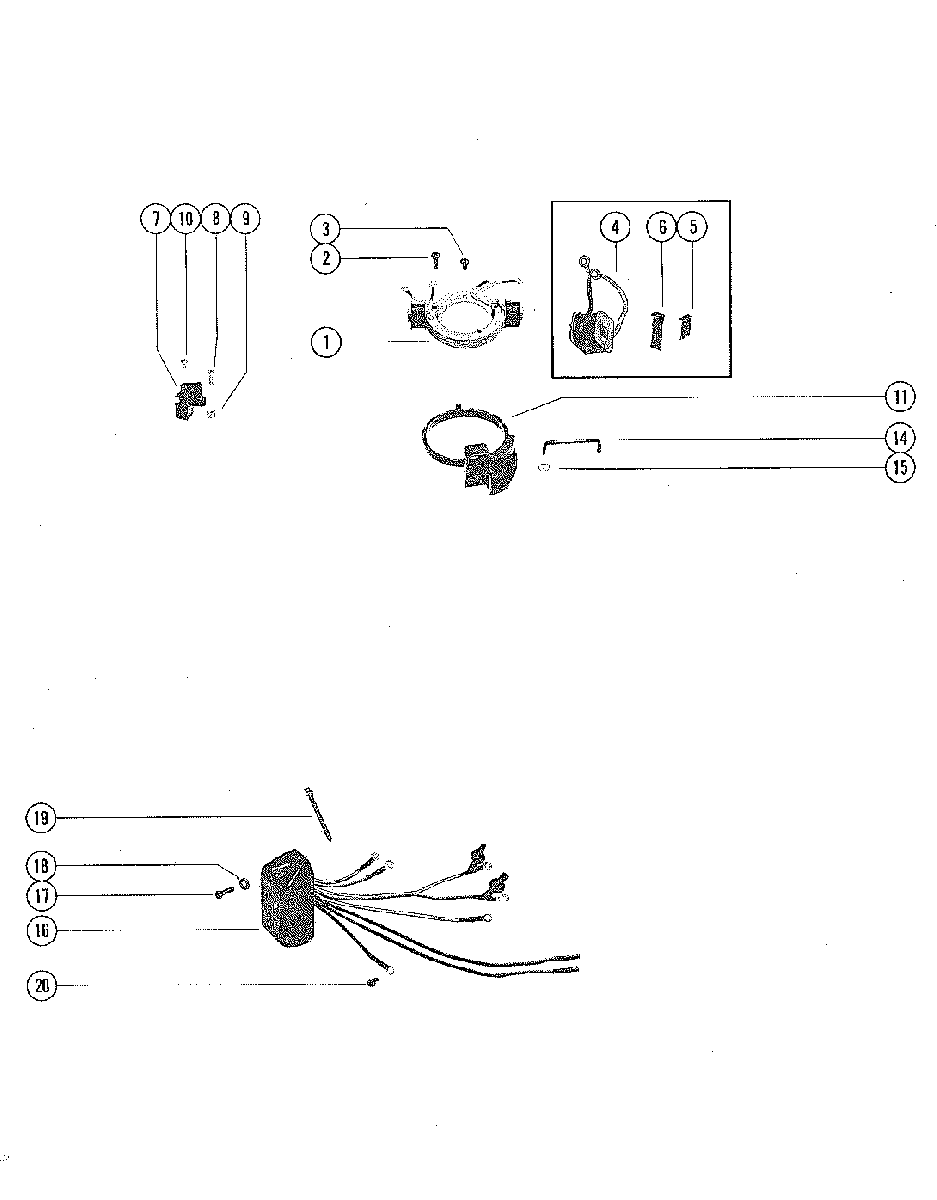

IGNITION COMPONENTS для Mercury - 75 8051350 THRU 8058019
-
№АртикулНазвание
-
1339-5209A9 STATOR ASSEMBLYSTATOR ASSEMBLY
-
210-66707 SCREW, STATOR TO END CAP (7/8")SCREW, STATOR TO END CAP (7/8")
-
310-35400 SCREW, STATOR TO END CAP (3/8")SCREW, STATOR TO END CAP (3/8")
-
4339-6119A1 COIL ASSEMBLY (5 1/2" AND 6 3/8" LEADS)COIL ASSEMBLY (5 1/2" AND 6 3/8" LEADS)
-
4339-6120A1 COIL ASSEMBLY (1 3/4" AND 3 1/2" LEADS)COIL ASSEMBLY (1 3/4" AND 3 1/2" LEADS)
-
554-59538T CLIP, COIL RETAININGCLIP, COIL RETAINING
-
654-65927 CLIP, COIL RETAININGCLIP, COIL RETAINING
-
786-85365 TERMINAL BLOCK, STATORTERMINAL BLOCK, STATOR
-
810-38055 SCREW, TERMINAL BLOCK TO STATOR (5/8")SCREW, TERMINAL BLOCK TO STATOR (5/8")
-
911-46438 NUT, TERMINAL BLOCK SCREWNUT, TERMINAL BLOCK SCREW
-
11338-7283A3 TRIGGER HOUSING ASSEMBLYTRIGGER HOUSING ASSEMBLY
-
1442501 LINK, TRIGGER HOUSING TO THROTTLE LEVERLINK, TRIGGER HOUSING TO THROTTLE LEVER
-
1511-65110 NUT, PUSH - LINK TO TRIGGER HOUSINGNUT, PUSH - LINK TO TRIGGER HOUSING
-
16899883229 SWITCH BOXSWITCH BOX
-
1710-69022 SCREW, SWITCH ATTACHING (1/2")SCREW, SWITCH ATTACHING (1/2")
-
1812-56681 WASHER, SWITCH BOX ATTACHING SCREWWASHER, SWITCH BOX ATTACHING SCREW
-
1961990 STA-STRAPSTA-STRAP
-
2010-45218 SCREW, GROUND LEAD TO CYLINDER BLOCKSCREW, GROUND LEAD TO CYLINDER BLOCK
Все узлы модели:
- BOTTOM COWL AND STOP SWITCH ASSEMBLY
- CARBURETOR AND CHOKE ASSEMBLY
- CARBURETOR ASSEMBLY, COMPLETE
- CLAMP BRACKET ASSEMBLY
- CRANKSHAFT AND MAIN BEARING ASSEMBLY
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- ELECTRIC COMPONENTS
- FLYWHEEL AND IGNITION COIL
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)
- • IGNITION COMPONENTS
- PISTON AND CONNECTING ROD ASSEMBLY
- SHIFT CONTROL LINKAGE
- STEERING HANDLE ASSEMBLY
- SWIVEL BRACKET ASSEMBLY
- THROTTLE CONTROL LINKAGE
- TOP COWL AND STARTER ASSEMBLY
