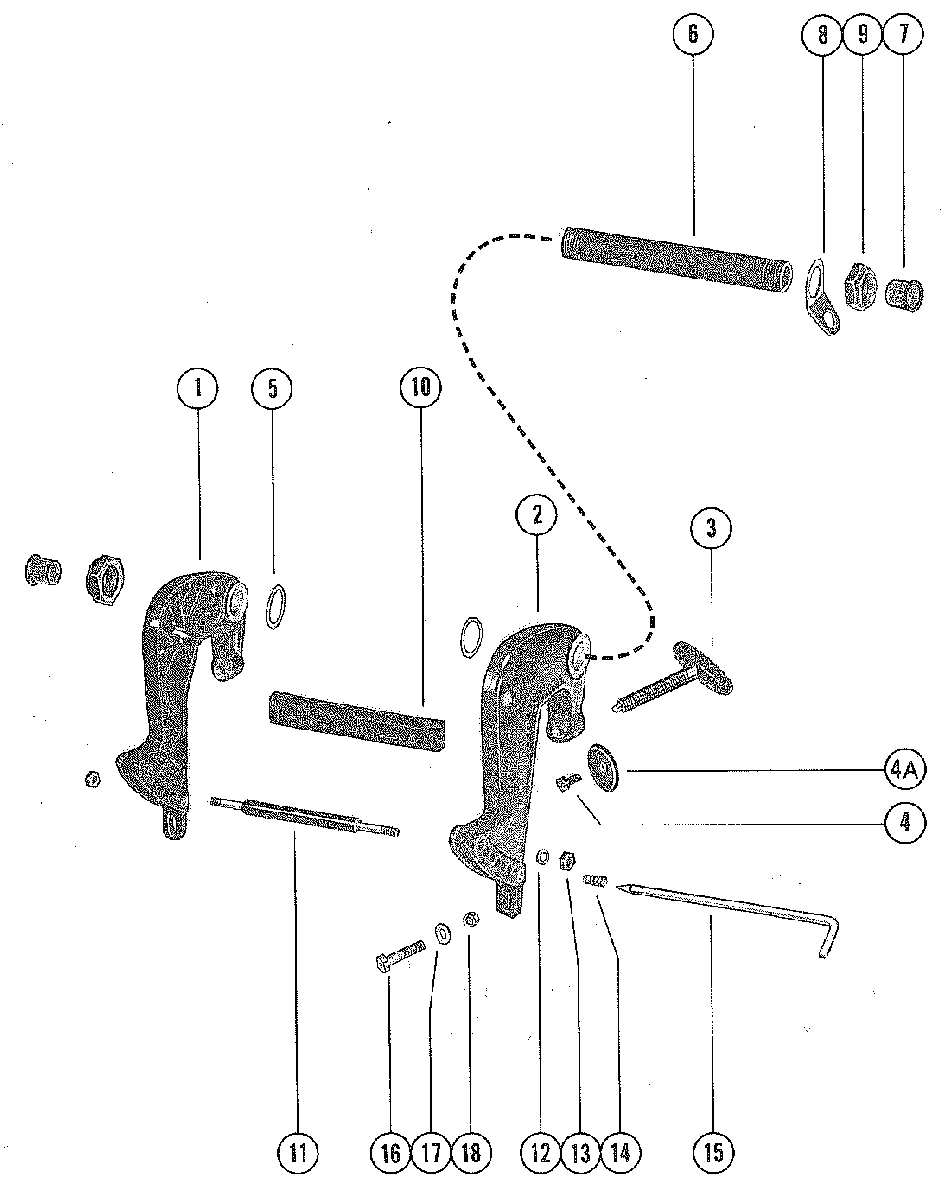

CLAMP BRACKET ASSEMBLY для Mercury - 75 8051350 THRU 8058019
-
№АртикулНазвание
-
11468-5570A3 CLAMP BRACKET ASSEMBLY (PORT)
WASHER ATTACHED WITH A RETAINING RING.CLAMP BRACKET ASSEMBLY (PORT)
WASHER ATTACHED WITH A RETAINING RING. -
21467-5571A3 CLAMP BRACKET ASSEMBLY (STARBOARD)
WASHER ATTACHED WITH A RETAINING RING.CLAMP BRACKET ASSEMBLY (STARBOARD)
WASHER ATTACHED WITH A RETAINING RING. -
310-77190A3 THUMB SCREW ASSEMBLY
WASHER ATTACHED WITH A RETAINING RING.THUMB SCREW ASSEMBLY
WASHER ATTACHED WITH A RETAINING RING. -
11468-5570A3 CLAMP BRACKET ASSEMBLY (PORT)
WASHER ATTACHED WITH A SCREWCLAMP BRACKET ASSEMBLY (PORT)
WASHER ATTACHED WITH A SCREW -
21467-5571A3 CLAMP BRACKET ASSEMBLY (STARBOARD)
WASHER ATTACHED WITH A SCREWCLAMP BRACKET ASSEMBLY (STARBOARD)
WASHER ATTACHED WITH A SCREW -
310-77190A3 THUMB SCREW ASSEMBLY
WASHER ATTACHED WITH A SCREWTHUMB SCREW ASSEMBLY
WASHER ATTACHED WITH A SCREW -
410-768042 SCREW, THUMB SCREW
WASHER ATTACHED WITH A SCREWSCREW, THUMB SCREW
WASHER ATTACHED WITH A SCREW -
4A12-818884 WASHER, THUMB SCREW
WASHER ATTACHED WITH A SCREWWASHER, THUMB SCREW
WASHER ATTACHED WITH A SCREW -
512-71421 WASHER, TILT TUBE - CLAMP TO SWIVEL BRACKETWASHER, TILT TUBE - CLAMP TO SWIVEL BRACKET
-
696962 TILT TUBE, CLAMP TO SWIVEL BRACKETTILT TUBE, CLAMP TO SWIVEL BRACKET
-
719-39333 PLUG, TILT TUBEPLUG, TILT TUBE
-
854-8M0085928 CLIP, SAFETY CHAIN - TILT TUBECLIP, SAFETY CHAIN - TILT TUBE
-
911-858869 NUT, TILT TUBE FASTENINGNUT, TILT TUBE FASTENING
-
1071420 HANDLE, CARRYINGHANDLE, CARRYING
-
1116-71417 STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
1213-26992 LOCKWASHER, CLAMP BRACKET STUDLOCKWASHER, CLAMP BRACKET STUD
-
1311-29598 NUT, CLAMP BRACKET STUDNUT, CLAMP BRACKET STUD
-
1424-62143 SPRING, TILT LOCK PINSPRING, TILT LOCK PIN
-
1517-71418A2 TILT LOCK PIN ASSEMBLYTILT LOCK PIN ASSEMBLY
-
1610-67982 BOLT, CLAMP BRACKET TO BOATBOLT, CLAMP BRACKET TO BOAT
-
1712-67983 WASHER, CLAMP BRACKET SCREWWASHER, CLAMP BRACKET SCREW
-
1811-8267098 NUT, CLAMP BRACKET SCREWNUT, CLAMP BRACKET SCREW
