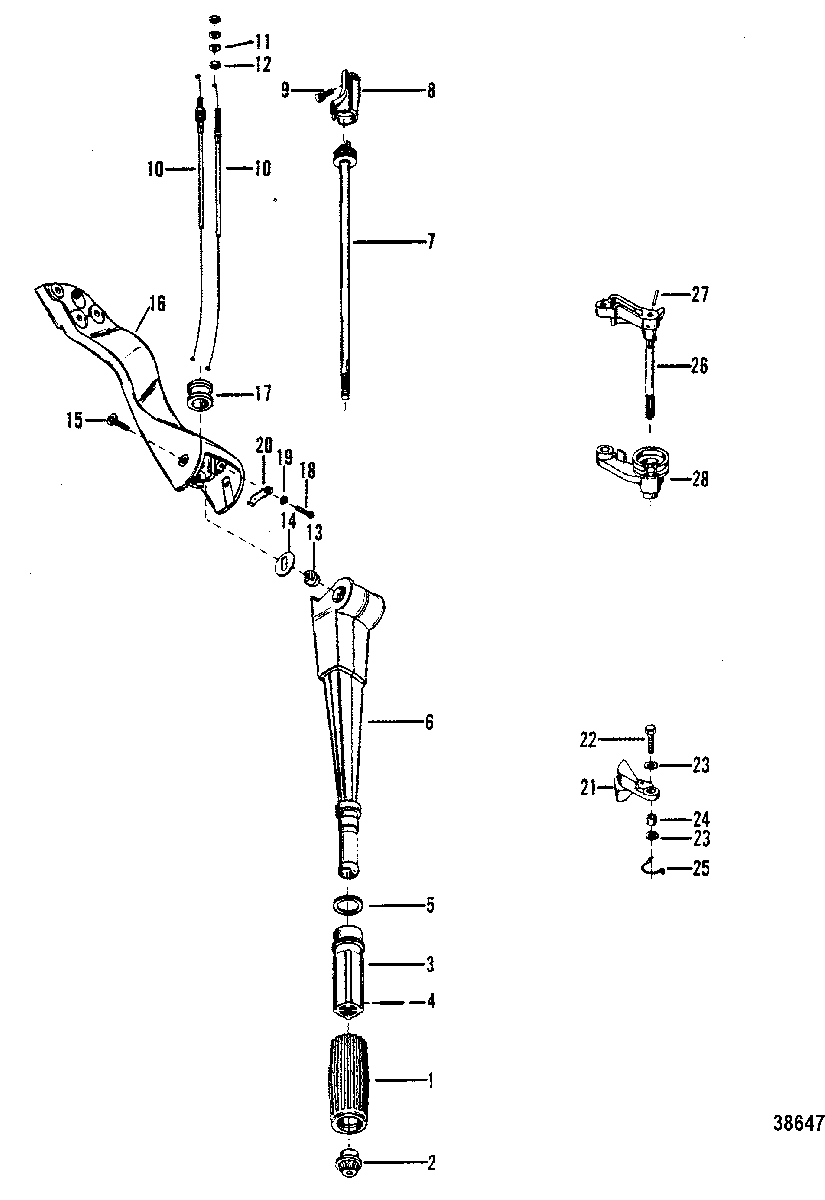

STEERING HANDLE AND THROTTLE LINKAGE для Mercury - 7.5 7125388 & Up

  • №
    Артикул
    Название
  • -
    77194A2 HANDLE ASSEMBLY, Steering
    HANDLE ASSEMBLY, Steering
  • 1
    60854 GRIP, HANDLE
    GRIP, HANDLE
  • 2
    77237 CAP, HANDLE
    CAP, HANDLE
  • 3
    77238A1 HANDLE, THROTTLE SHAFT
    HANDLE, THROTTLE SHAFT
  • 4
    17-31656 PIN, STEERING HANDLE
    PIN, STEERING HANDLE
  • 5
    12-62252 WASHER
    THROTTLE HANDLE TO STEERING ARM
    WASHER
    THROTTLE HANDLE TO STEERING ARM
  • 6
    77194 ARM, STEERING HANDLE
    ARM, STEERING HANDLE
  • 7
    97379 SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 7
    973791 SHAFT, Throttle
    (180 cc SailPower)
    SHAFT, Throttle
    (180 cc SailPower)
  • 8
    77203 BLOCK, CABLE GUIDE
    BLOCK, CABLE GUIDE
  • 9
    10-69069 SCREW, (.250-28 x .750), BLOCK TO STEERING ARM
    SCREW, (.250-28 x .750), BLOCK TO STEERING ARM
  • 10
    86210 CABLE, THROTTLE
    CABLE, THROTTLE
  • 11
    12-37998 WASHER, THROTTLE CABLE
    WASHER, THROTTLE CABLE
  • 12
    11-21825 NUT, (.250-28), THROTTLE CABLE
    NUT, (.250-28), THROTTLE CABLE
  • 13
    48003 PIVOT, STEERING HANDLE TO BRACKET
    PIVOT, STEERING HANDLE TO BRACKET
  • 14
    15-48002015 SHIM (.015)
    SHIM (.015)
  • 15
    10-96138 SCREW, (.250-28 x .620)
    SCREW, (.250-28 x .620)
  • 16
    96432F1 BRACKET, STEERING ARM
    BRACKET, STEERING ARM
  • 17
    25-67272 GROMMET, STEERING ARM BRACKET
    GROMMET, STEERING ARM BRACKET
  • 18
    10-62233 SCREW, (#10-16 x .625)
    SCREW, (#10-16 x .625)
  • 19
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, DETENT SPRING
    WASHER, (.192 x .375 x .0312) Stainless Steel, DETENT SPRING
  • 20
    24-72847 SPRING, DETENT - STEERING HANDLE
    SPRING, DETENT - STEERING HANDLE
  • 21
    86212 FOLLOWER, OVER - SPEED LIMITER
    FOLLOWER, OVER - SPEED LIMITER
  • 22
    10-20653 SCREW, (.250-28 x 1.00)
    SCREW, (.250-28 x 1.00)
  • 23
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, SPEED LIMITER FOLLOWER SCREW
    WASHER, (.281 x .500 x .060) Stainless Steel, SPEED LIMITER FOLLOWER SCREW
  • 24
    23-63320 BUSHING, SPEED LIMITER FOLLOWER SCREW
    BUSHING, SPEED LIMITER FOLLOWER SCREW
  • 25
    24-39042 SPRING, NEUTRAL SPEED LIMITER FOLLOWER
    SPRING, NEUTRAL SPEED LIMITER FOLLOWER
  • 26
    66374A2 LEVER ASSEMBLY, THROTTLE CONTROL
    LEVER ASSEMBLY, THROTTLE CONTROL
  • 27
    17-76207 PIN, Roll, THROTTLE CONTROL LEVER
    PIN, Roll, THROTTLE CONTROL LEVER
  • 28
    86070 SPOOL, THROTTLE
    SPOOL, THROTTLE
