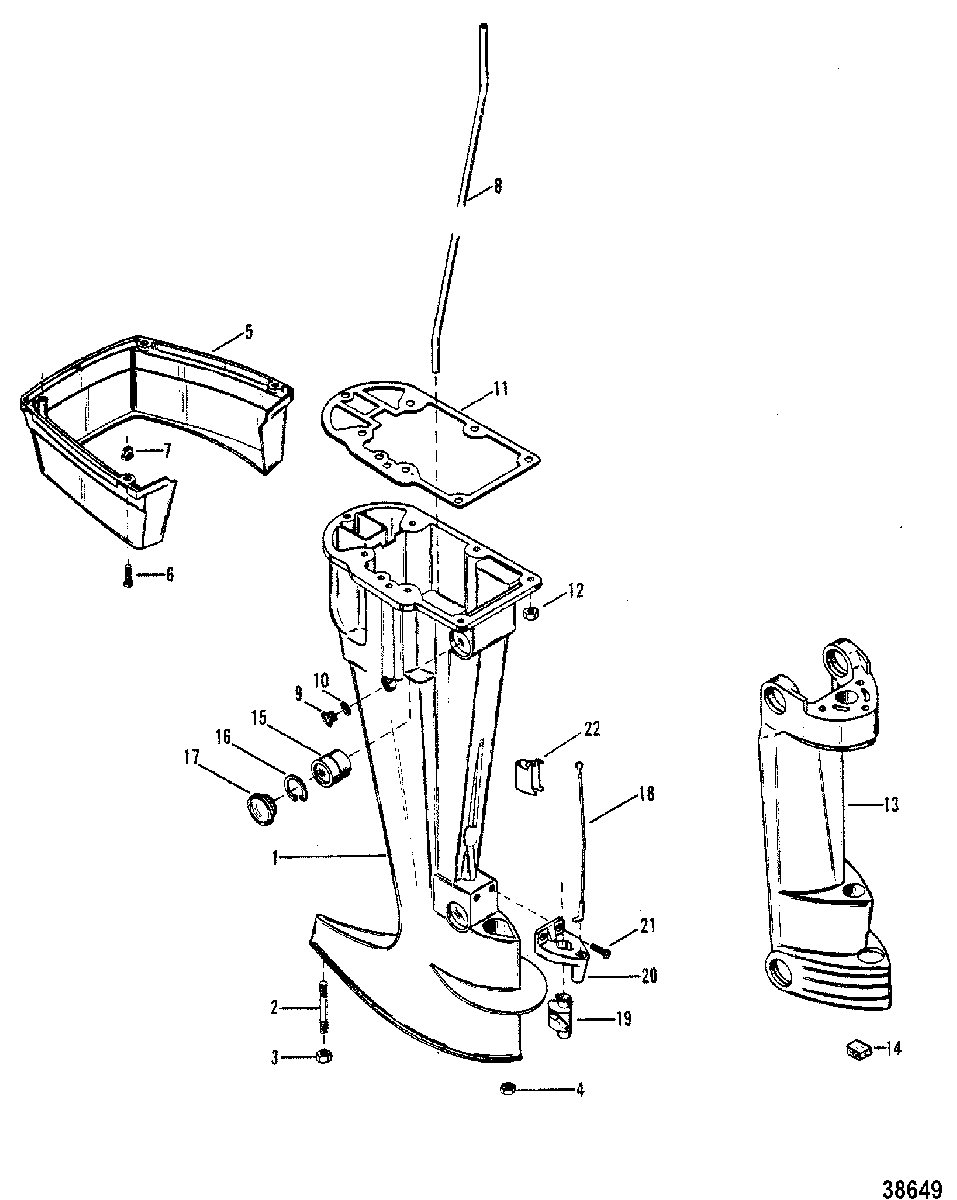

DRIVESHAFT HOUSING ASSEMBLY для Mercury - 7.5 7125388 & Up

  • №
    Артикул
    Название
  • 1
    1556-8451A1 HOUSING ASSEMBLY, Driveshaft
    (SHORT SHAFT)
    HOUSING ASSEMBLY, Driveshaft
    (SHORT SHAFT)
  • 1
    1558-8453A1 HOUSING ASSEMBLY, Driveshaft
    (LONG SHAFT)
    HOUSING ASSEMBLY, Driveshaft
    (LONG SHAFT)
  • 2
    16-66373 STUD
    STUD
  • 3
    11-82670911 NUT, (.312-24) Stainless Steel
    NUT, (.312-24) Stainless Steel
  • 4
    11-8M0042636 NUT, (.375-24)
    NUT, (.375-24)
  • 5
    96515F1 COVER, TRIM
    COVER, TRIM
  • 6
    10-69013 SCREW, (#10-16 x .880), TRIM COVER
    SCREW, (#10-16 x .880), TRIM COVER
  • 7
    25-8M0079730 GROMMET, TRIM COVER SCREW
    GROMMET, TRIM COVER SCREW
  • 8
    32-39061 TUBE, WATER
    (SHORT SHAFT)
    TUBE, WATER
    (SHORT SHAFT)
  • 8
    32-39062 TUBE, WATER
    (LONG SHAFT)
    TUBE, WATER
    (LONG SHAFT)
  • 9
    10-79953Q04 SCREW, (.375-16 x .250), FLUSH - DRIVE SHAFT HOUSING
    SCREW, (.375-16 x .250), FLUSH - DRIVE SHAFT HOUSING
  • 10
    12-191833 WASHER, SEALING - FLUSH SCREW
    WASHER, SEALING - FLUSH SCREW
  • 11
    27-39050 GASKET
    GASKET
  • 12
    11-24652 NUT, (.250-28)
    NUT, (.250-28)
  • 13
    1559-8448A2 SADDLE ASSEMBLY
    SADDLE ASSEMBLY
  • 14
    64076 BUMPER, THRUST - SADDLE
    BUMPER, THRUST - SADDLE
  • 15
    79896A1 MOUNT, LOWER AND UPPER
    (SHORT SHAFT)
    MOUNT, LOWER AND UPPER
    (SHORT SHAFT)
  • 15
    79896A1 MOUNT, UPPER
    (LONG SHAFT)
    MOUNT, UPPER
    (LONG SHAFT)
  • 15
    79895A1 MOUNT, LOWER
    (LONG SHAFT)
    MOUNT, LOWER
    (LONG SHAFT)
  • 16
    53-26406 RING, RETAINING - UPPER AND LOWER MOUNT
    RING, RETAINING - UPPER AND LOWER MOUNT
  • 17
    79907 COVER, LOWER MOUNT
    COVER, LOWER MOUNT
  • 18
    71057 LINK ROD, REVERSE LOCK
    LINK ROD, REVERSE LOCK
  • 19
    65216 CAM, REVERSE LOCK
    CAM, REVERSE LOCK
  • 20
    72007 RETAINER, REVERSE LOCK CAM
    RETAINER, REVERSE LOCK CAM
  • 21
    10-65414 SCREW, CAM RETAINER (3/4")
    SCREW, CAM RETAINER (3/4")
  • 22
    93145 BLOCK, DRIVE SHAFT
    (LONG SHAFT)
    BLOCK, DRIVE SHAFT
    (LONG SHAFT)
  • -
    27-89014A80 GASKET SET
    GASKET SET
