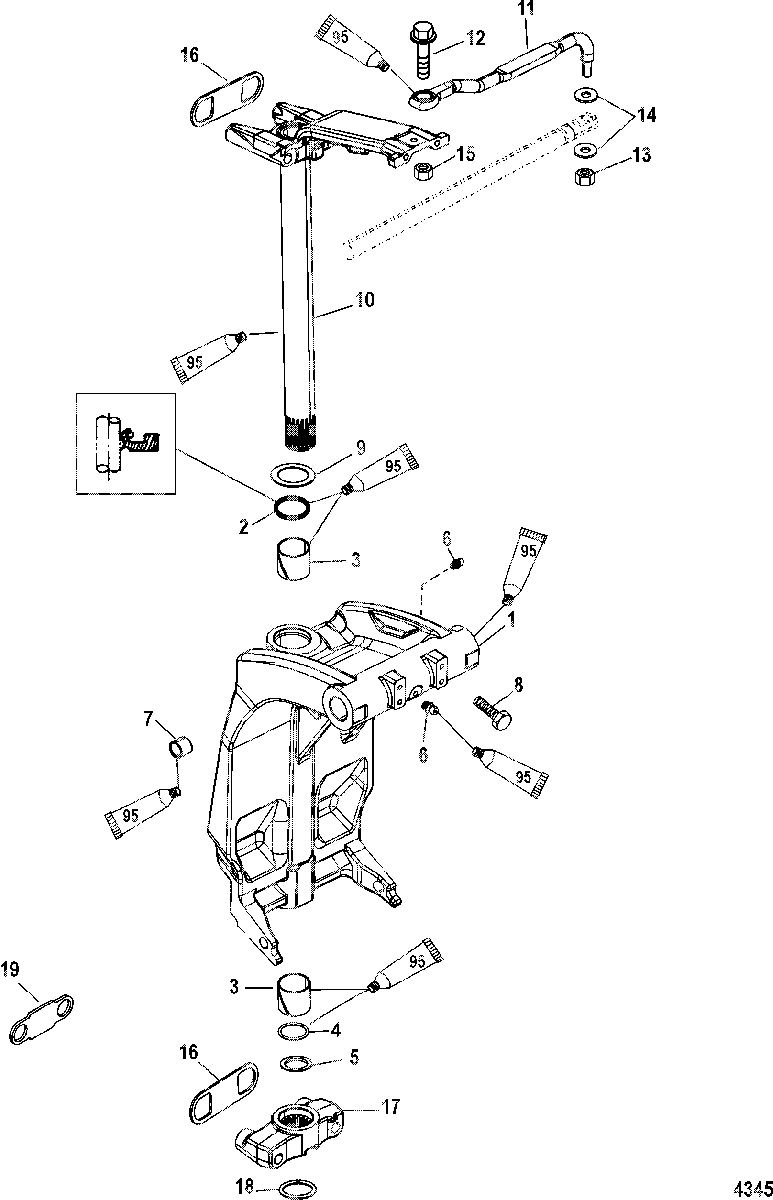

Swivel Bracket and Steering Arm для Mercury - 75 (3 CYL.) 1B000000 & Up
-
№АртикулНазвание
-
11400-8M0107419 SWIVEL BRACKETSWIVEL BRACKET
-
226-87735 SEAL, Oil, LowerSEAL, Oil, Lower
-
323-818764 BUSHINGBUSHING
-
425-33504 O-RINGO-RING
-
523-816039 SPACERSPACER
-
622-74036 FITTING, GreaseFITTING, Grease
-
723-821207 BUSHINGBUSHING
-
810-64014 SCREW, (.250-28 x .500)SCREW, (.250-28 x .500)
-
912-816432 THRUST WASHERTHRUST WASHER
-
1099661A35 SWIVEL PIN ASSEMBLYSWIVEL PIN ASSEMBLY
-
1192876A12 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
1210-849838 SCREW, (.375-24 x 1.250)SCREW, (.375-24 x 1.250)
-
1311-8M0042636 NUT, (.375-24) BrassNUT, (.375-24) Brass
-
1412-37828 WASHER, (.390 x .625 x .062) Stainless SteelWASHER, (.390 x .625 x .062) Stainless Steel
-
1511-8M0042636 NUT, (.375-24) Stainless SteelNUT, (.375-24) Stainless Steel
-
168M0000519 BUMPERBUMPER
-
17881914T01 YOKE, BottomYOKE, Bottom
-
1853-67684 RING, RetainingRING, Retaining
-
1911288001 BUMPER, Bottom Yoke (X-Long)BUMPER, Bottom Yoke (X-Long)
