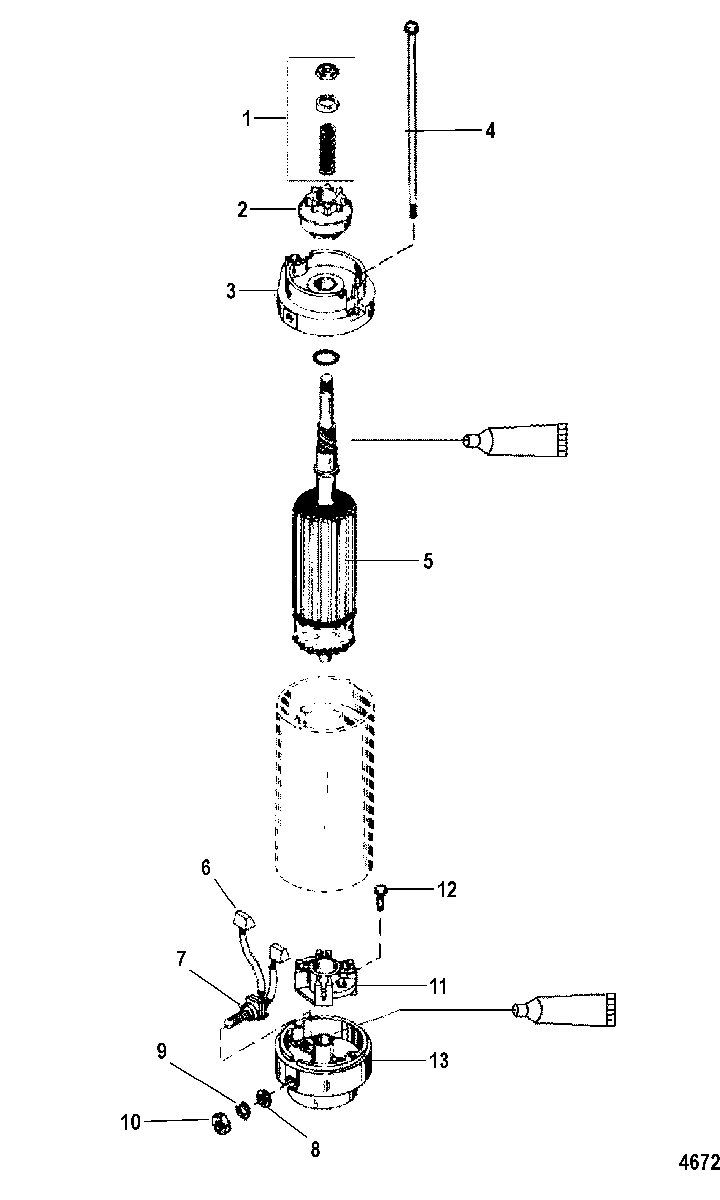

Starter Motor, Service для Mercury - 75 (3 CYL.) 1B000000 & Up
-
№АртикулНазвание
-
-50-893891T STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
-50-893891T STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
190643 DRIVE KITDRIVE KIT
-
2685753 DRIVE ASSEMBLYDRIVE ASSEMBLY
-
375660 PLATEPLATE
-
410-75385 BOLTBOLT
-
575386 ARMATUREARMATURE
-
6898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
723-57387 BUSHINGBUSHING
-
8NSS NOT SOLD SEPARATE, Washer (AMER. BOSCH #WA-1728)NOT SOLD SEPARATE, Washer (AMER. BOSCH #WA-1728)
-
913-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1011-20890 NUT, (.250-20)NUT, (.250-20)
-
11898265014 HOLDERHOLDER
-
12NSS NOT SOLD SEPARATE (AMER. BOSCH #02441-22-SC-30SM DRIVE TIGHT)NOT SOLD SEPARATE (AMER. BOSCH #02441-22-SC-30SM DRIVE TIGHT)
-
1315386001 END CAPEND CAP
