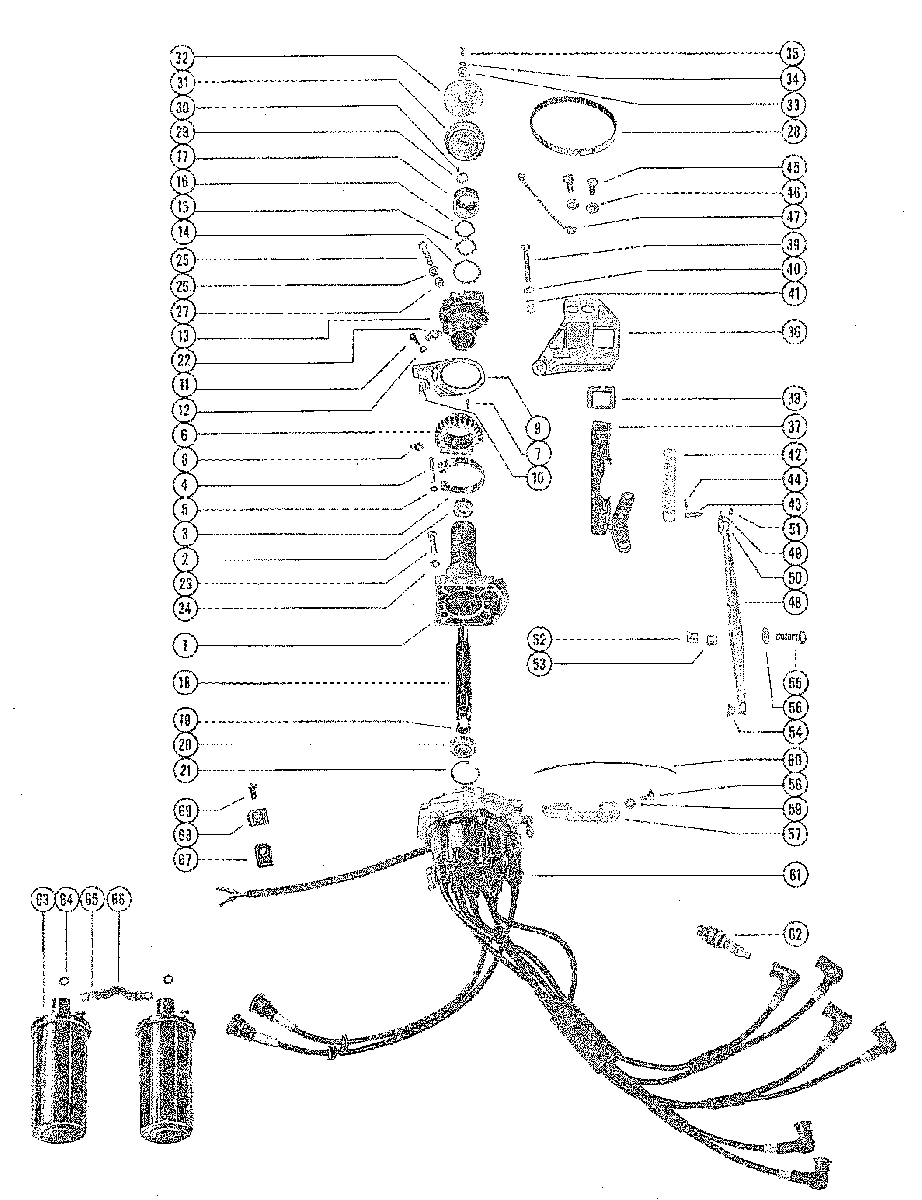

DISTRIBUTOR ADAPTOR AND PILOT ASSEMBLY для Mercury - 700 (6 CYL.) 1296411 THRU 1413610

  • №
    Артикул
    Название
  • 1
    29633A1 PILOT ASSEMBLY
    PILOT ASSEMBLY
  • 2
    30-20066 BEARING BALL - DISTRIBUTOR PILOT
    BEARING BALL - DISTRIBUTOR PILOT
  • 3
    24-29275 SPRING, HORSESHOE
    SPRING, HORSESHOE
  • 4
    17-27962 PIN, SPRING TERMINAL
    PIN, SPRING TERMINAL
  • 5
    12-29245 WASHER, SPRING TERMINAL PIN
    WASHER, SPRING TERMINAL PIN
  • 6
    43-28509A1 SECTOR GEAR AND PIN ASSEMBLY
    SECTOR GEAR AND PIN ASSEMBLY
  • 7
    17-27961 PIN SPRING RETAINER
    PIN SPRING RETAINER
  • 8
    22-69059 FITTING, GREASE - SECTOR GEAR 1
    FITTING, GREASE - SECTOR GEAR 1
  • 9
    29558A1 THROTTLE ACTUATOR ASSEMBLY
    THROTTLE ACTUATOR ASSEMBLY
  • 10
    23-26602 BUSHING, NYLON - THROTTLE ACTUATOR
    BUSHING, NYLON - THROTTLE ACTUATOR
  • 11
    10-20665 SCREW, THROTTLE ACTUATOR TO GEAR SECTO
    SCREW, THROTTLE ACTUATOR TO GEAR SECTO
  • 12
    12-847883 WASHER, THROTTLE ACTUATOR FASTENING SCREW
    WASHER, THROTTLE ACTUATOR FASTENING SCREW
  • --
    13-26996 LOCKWASHER, THROTTLE ACTUATOR FASTENING SCREW
    LOCKWASHER, THROTTLE ACTUATOR FASTENING SCREW
  • 13
    30044 ADAPTOR, DISTRIBUTOR
    ADAPTOR, DISTRIBUTOR
  • 14
    12-27939 WASHER, THRUST - DISTRIBUTOR PILOT
    WASHER, THRUST - DISTRIBUTOR PILOT
  • 15
    14-27960 TAB WASHER, CAP LOCKING
    TAB WASHER, CAP LOCKING
  • 16
    13-27959 WASHER, WAVE - TAB WASHER TENSION
    WASHER, WAVE - TAB WASHER TENSION
  • 17
    27955 CAP, ADAPTOR AND PILOT FASTENING
    CAP, ADAPTOR AND PILOT FASTENING
  • 18
    45-28473A1 DRIVE SHAFT ASSEMBLY, DISTRIBUTOR
    DRIVE SHAFT ASSEMBLY, DISTRIBUTOR
  • 19
    24-28469 SPRING, DISTRIBUTOR DRIVE SHAFT 1
    SPRING, DISTRIBUTOR DRIVE SHAFT 1
  • 20
    30-26379 BEARING, BALL - DRIVE SHAFT
    BEARING, BALL - DRIVE SHAFT
  • 21
    53-26406 RING, SNAP - BALL BEARING RETAINING
    RING, SNAP - BALL BEARING RETAINING
  • 22
    22-25094 FITTING, GREASE - ADAPTOR
    FITTING, GREASE - ADAPTOR
  • 23
    10-28668 SCREW, ADAPTOR AND PILOT TO DISTRIBUTOR
    SCREW, ADAPTOR AND PILOT TO DISTRIBUTOR
  • 24
    13-26992 LOCKWASHER, ADAPTOR AND PILOT TO DISTRIBUTOR SCREW
    LOCKWASHER, ADAPTOR AND PILOT TO DISTRIBUTOR SCREW
  • 25
    10-78841 SCREW, ADAPTOR AND PILOT TO CRANKCASE FLANGE
    SCREW, ADAPTOR AND PILOT TO CRANKCASE FLANGE
  • 26
    12-20084 WASHER, ADAPTOR AND PILOT FASTENING SCREW
    WASHER, ADAPTOR AND PILOT FASTENING SCREW
  • 27
    11-22053 NUT, ADAPTOR AND PILOT FASTENING SCREW
    NUT, ADAPTOR AND PILOT FASTENING SCREW
  • 28
    20140 BELT, TIMING
    BELT, TIMING
  • 30
    28-28657 KEY, MAGNETO DRIVING
    KEY, MAGNETO DRIVING
  • 29
    23-27957 SPACER, PULLEY TO MAGNETO ADAPTOR CAP OLD STYLE
    SPACER, PULLEY TO MAGNETO ADAPTOR CAP OLD STYLE
  • 31
    29783A2 PULLEY, DRIVEN
    PULLEY, DRIVEN
  • 32
    20136 FLANGE, DRIVEN PULLEY
    FLANGE, DRIVEN PULLEY
  • --
    29784 HUB, DRIVEN PULL NEW STYLE SEE NOTE BELOW
    HUB, DRIVEN PULL NEW STYLE SEE NOTE BELOW
  • --
    29783A1 DRIVEN PULLEY ASSEMBLY
    DRIVEN PULLEY ASSEMBLY
  • --
    17-24873 ROLL PIN, FLANGE LCOATING
    ROLL PIN, FLANGE LCOATING
  • --
    29785 FLANGE, DRIVEN PULLEY
    FLANGE, DRIVEN PULLEY
  • 33
    12-20138 WASHER, PULLEY CLAMPING SCREW
    WASHER, PULLEY CLAMPING SCREW
  • 34
    13-26996 LOCKWASHER, PULLEY CLAMPING SCREW
    LOCKWASHER, PULLEY CLAMPING SCREW
  • 35
    10-32228 SCREW, PULLEY CLAMPING
    SCREW, PULLEY CLAMPING
  • 36
    29632 BRACKET, GUIDE RACK
    BRACKET, GUIDE RACK
  • 37
    26610A5 GUIDE RACK ASSEMBLY
    GUIDE RACK ASSEMBLY
  • 38
    25-29727 GROMMET, GUIDE RACK BRACKET
    GROMMET, GUIDE RACK BRACKET
  • 39
    10-64022 SCREW, THROTTLE STOP ADJUSTING
    SCREW, THROTTLE STOP ADJUSTING
  • 40
    11-20890 NUT, THROTTLE STOP ADJUSTING SCREW
    NUT, THROTTLE STOP ADJUSTING SCREW
  • 41
    26852 CAP, NYLON - ADJUSTING SCREW
    CAP, NYLON - ADJUSTING SCREW
  • 42
    26827A1 RACK AND PIN ASSEMBLY, GUIDE RACK
    RACK AND PIN ASSEMBLY, GUIDE RACK
  • 43
    17-26816 PIN,LINK - NYLON RACK
    PIN,LINK - NYLON RACK
  • 44
    17-23757 ROLL PIN, LINK PIN TO NYLON RACK
    ROLL PIN, LINK PIN TO NYLON RACK
  • 45
    10-28636 SCREW, GUIDE RACK BRACKET TO DISTRIBUTOR ADAPTOR
    SCREW, GUIDE RACK BRACKET TO DISTRIBUTOR ADAPTOR
  • 46
    12-20533 WASHER, GUIDE RACK BRACKET FASTENING SCREW
    WASHER, GUIDE RACK BRACKET FASTENING SCREW
  • 47
    30109 GROUND STRAP ASSEMBLY, ADAPTOR TO CRANKCASE
    GROUND STRAP ASSEMBLY, ADAPTOR TO CRANKCASE
  • 48
    26598 LEVER, VERTICAL 1
    LEVER, VERTICAL 1
  • 49
    26593 LINK, VERTICAL LEVER TO NYLON RACK
    LINK, VERTICAL LEVER TO NYLON RACK
  • 50
    17-26637 RIVET, LINK TO VERTICAL LEVER
    RIVET, LINK TO VERTICAL LEVER
  • 51
    11-20110 NUT, LINK PIN TO VERTICAL LEVER LINK
    NUT, LINK PIN TO VERTICAL LEVER LINK
  • 52
    23-26599 BUSHING, NYLON - VERTICAL LEVER (1/2"I.D.)
    BUSHING, NYLON - VERTICAL LEVER (1/2"I.D.)
  • 53
    23-26603 BUSHING, STEEL - VERTICAL LEVER
    BUSHING, STEEL - VERTICAL LEVER
  • 54
    23-26600 BUSHING, NYLON - VERTICAL LEVER (1/4"I.D.)
    BUSHING, NYLON - VERTICAL LEVER (1/4"I.D.)
  • 55
    10-26638 SCREW, VERTICAL LEVER TO EXHAUST COVER
    SCREW, VERTICAL LEVER TO EXHAUST COVER
  • 56
    12-68300 WASHER,VERTICAL LEVER FASTENING SCREW
    WASHER,VERTICAL LEVER FASTENING SCREW
  • 57
    26604 LEVER, REVERSE THROTTTLE PICKUP
    LEVER, REVERSE THROTTTLE PICKUP
  • 58
    10-29155 SCREW, PICKUP LEVER TO DISTRIBUTOR HOUSIN
    SCREW, PICKUP LEVER TO DISTRIBUTOR HOUSIN
  • 59
    12-29245 WASHER, PICKUP LEVER FASTENING SCREW
    WASHER, PICKUP LEVER FASTENING SCREW
  • 60
    29156 LOCKWIRE, PICKUP LEVER FASTENING SCREW
    LOCKWIRE, PICKUP LEVER FASTENING SCREW
  • 61
    393-1282A13 DISTRIBUTOR ASSEMBLY, COMPLETE
    DISTRIBUTOR ASSEMBLY, COMPLETE
  • 62
    33-813469 SPARK PLUG
    SPARK PLUG
  • 63
    898253T24 COIL, IGNITION
    COIL, IGNITION
  • 64
    25-26543 "O"RING, IGNITION COIL
    "O"RING, IGNITION COIL
  • 65
    26454A1 JUMPER ASSEMBLY, COIL TO COIL
    JUMPER ASSEMBLY, COIL TO COIL
  • 66
    32-26627 SLEEVE, COIL JJUMPER
    SLEEVE, COIL JJUMPER
  • --
    28922 JUMPER, COIL TO COIL
    JUMPER, COIL TO COIL
  • 67
    54-24836 CLIP, DISTRIBUTOR PRIMARY GROUND LEAS (1/4-6)
    CLIP, DISTRIBUTOR PRIMARY GROUND LEAS (1/4-6)
  • 68
    8M0084613 "D" WASHER, GROUND LEAD CLIP SCREW
    "D" WASHER, GROUND LEAD CLIP SCREW
  • 69
    10-8M0113176 SCREW, DISTRIBUTOR GROUND LEAD CLIP TO CRANKCASE
    SCREW, DISTRIBUTOR GROUND LEAD CLIP TO CRANKCASE
