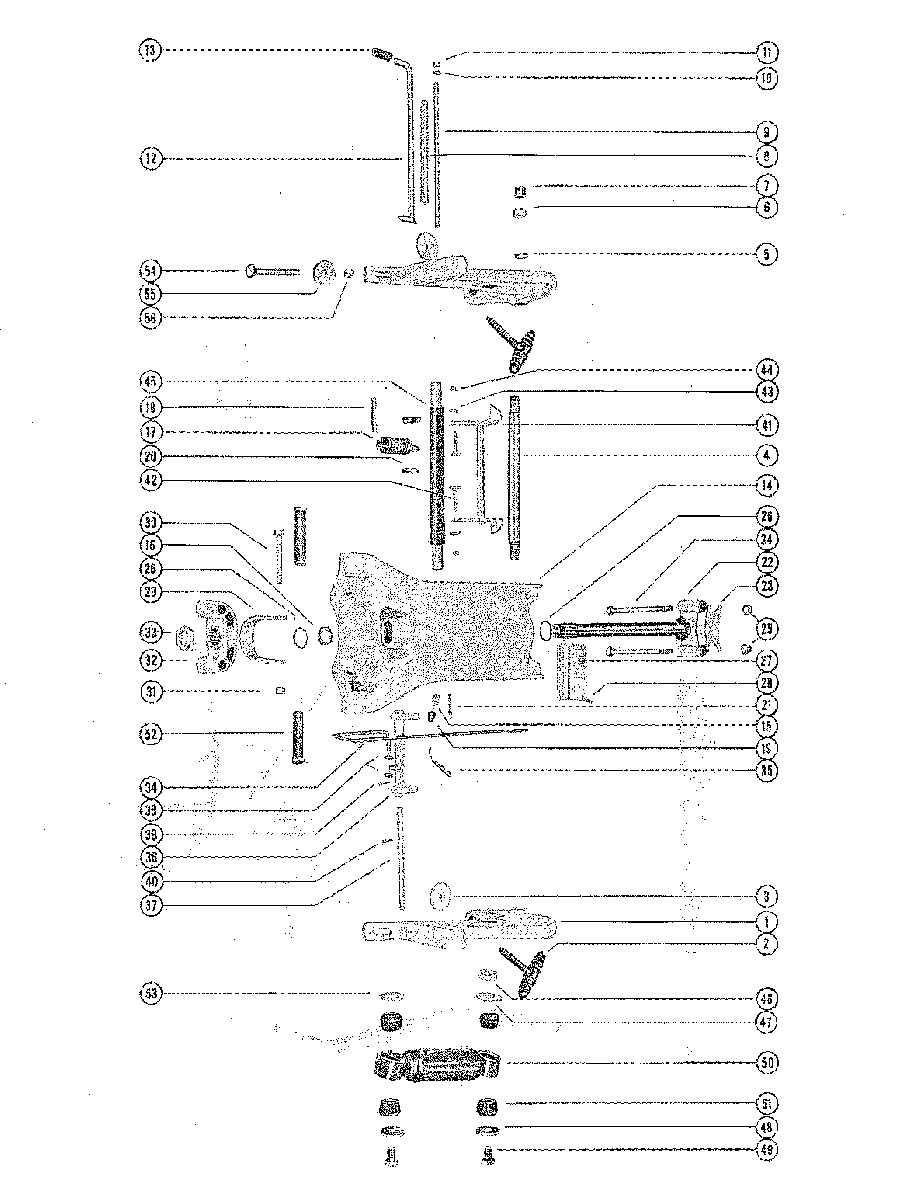

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 700 (6 CYL.) 1296411 THRU 1413610

  • №
    Артикул
    Название
  • 1
    1440-1468A1 CLAMP BRACKET ASSEMBLY
    CLAMP BRACKET ASSEMBLY
  • 2
    28403A3 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 3
    12-28404 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 4
    28122 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
    TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
  • 5
    15-25600 SHIM, CLAMP BRACKET TILT TUBE (.010-.020)
    SHIM, CLAMP BRACKET TILT TUBE (.010-.020)
  • 6
    11-8M2014641 NUT, TILT TUBE FASTENING
    NUT, TILT TUBE FASTENING
  • 7
    25606 CAP, PLASTIC - TILT TUBE
    CAP, PLASTIC - TILT TUBE
  • 8
    23-59624 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 9
    16-59625 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 10
    13-26993 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
  • 11
    11-22053 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 12
    17-8M0026068 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 13
    32-28052 SLEEVE, RUBBER - TILT LOCK PIN BUMPER
    SLEEVE, RUBBER - TILT LOCK PIN BUMPER
  • 14
    1446-1592A1 SWIVEL BRACKET ASSEMBLY
    SWIVEL BRACKET ASSEMBLY
  • 15
    22-69059 FITTING, GREASE
    FITTING, GREASE
  • 16
    26-32911 OIL SEAL (SEE NOTE BELOW)
    OIL SEAL (SEE NOTE BELOW)
  • 16
    26-32911 OIL SEAL (SEE NOTE BELOW)
    OIL SEAL (SEE NOTE BELOW)
  • 17
    24-94891 SPRING, COIL - SWIVEL BRACKET
    SPRING, COIL - SWIVEL BRACKET
  • 18
    17-28658 PIN, COIL SPRING MOUNTING
    PIN, COIL SPRING MOUNTING
  • 19
    19-77633Q LUBRICAP, SWIVEL PIN GEAR FITTING
    LUBRICAP, SWIVEL PIN GEAR FITTING
  • 20
    23-28688 SPACER, RUBBER - COIL SPRING POSITIONING
    SPACER, RUBBER - COIL SPRING POSITIONING
  • 21
    17-25598 PIN, REVERSE LOCK SPRING ATTACHING
    PIN, REVERSE LOCK SPRING ATTACHING
  • 22
    17-28211A1 SWIVEL PIN AND TOP YOKE ASSEMBLY
    SWIVEL PIN AND TOP YOKE ASSEMBLY
  • 23
    28203 BUMPER, TOP YOKE
    BUMPER, TOP YOKE
  • 24
    10-28255 BOLT, TOP YOKE TO UPPER MOUNT
    BOLT, TOP YOKE TO UPPER MOUNT
  • 25
    1397-2218 NUT, TOP YOKE BOLT FASTENING
    NUT, TOP YOKE BOLT FASTENING
  • 26
    12-25176 WASHER, SWIVEL PIN - LOWER (TOP WASHER OPTIONAL)
    WASHER, SWIVEL PIN - LOWER (TOP WASHER OPTIONAL)
  • 27
    38-29537 SERIAL PLATE
    SERIAL PLATE
  • 28
    10-25612 SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
    SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
  • 29
    28205T STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET
    STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET
  • 30
    10-28200 SCREW, STRAP STOP TO DRIVE SHAFT HOUSING
    SCREW, STRAP STOP TO DRIVE SHAFT HOUSING
  • 31
    11-25269 NUT, STRAP STOP FASTENING SCREW
    NUT, STRAP STOP FASTENING SCREW
  • 32
    30197 YOKE, BOTTOM
    YOKE, BOTTOM
  • 32
    30197 YOKE, BOTTOM
    YOKE, BOTTOM
  • 33
    11-71956 NUT, SWIVEL PIN RETAINING
    NUT, SWIVEL PIN RETAINING
  • 34
    29484 ROD, PUSH - REVERSE LOCK
    ROD, PUSH - REVERSE LOCK
  • 35
    24-26625 SPRING, REVERSE LOCK TENSION
    SPRING, REVERSE LOCK TENSION
  • 36
    26903A4 REVERSE LOCK ASSEMBLY
    REVERSE LOCK ASSEMBLY
  • 37
    56349 SHAFT, REVERSE LOCK PIVOT
    SHAFT, REVERSE LOCK PIVOT
  • 38
    12-20546 WASHER, PUSH ROD
    WASHER, PUSH ROD
  • 39
    18-25191 COTTER PIN, PUSH ROD TO REVERSE LOCK
    COTTER PIN, PUSH ROD TO REVERSE LOCK
  • 40
    18-45882 COTTER PIN, REVERSE LOCK TO SHAFT
    COTTER PIN, REVERSE LOCK TO SHAFT
  • 41
    30200A1 TILT STOP LEVER ASSEMBLY
    TILT STOP LEVER ASSEMBLY
  • 42
    10-28339 SCREW, TILT STOP LEVER ANCHOR
    SCREW, TILT STOP LEVER ANCHOR
  • 43
    13-20846 WASHER, WAVE - LEVER ANCHOR SCREW
    WASHER, WAVE - LEVER ANCHOR SCREW
  • 44
    11-20184 NUT, LEVER ANCHOR SCREW
    NUT, LEVER ANCHOR SCREW
  • 45
    55-28416 PIN, UPPER SHOCK MOUNTING
    PIN, UPPER SHOCK MOUNTING
  • 46
    23-28199 SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET
    SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET
  • 47
    12-28196 WASHER, UPPER BUSHING RETAINER (INNER)
    WASHER, UPPER BUSHING RETAINER (INNER)
  • 48
    12-28421 WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)
    WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)
  • 49
    10-28450 SCREW, NYLOCK - UPPER AND LOWER SHOCK MOUNTING PIN
    SCREW, NYLOCK - UPPER AND LOWER SHOCK MOUNTING PIN
  • 50
    55-28209 SHOCK ABSORBER
    SHOCK ABSORBER
  • 51
    23-28198 BUSHING, RUBBER - SHOCK ABSORBER
    BUSHING, RUBBER - SHOCK ABSORBER
  • 52
    55-696531 PIN, LOWER SHOCK MOUNTING
    PIN, LOWER SHOCK MOUNTING
  • 53
    12-840400 WASHER, LOWER BUSHING RETAINER (INNER)
    WASHER, LOWER BUSHING RETAINER (INNER)
  • 54
    10-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOM
    BOLT, CLAMP BRACKET TO BOAT TRANSOM
  • 55
    12-46765 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 56
    11-82670912 NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
