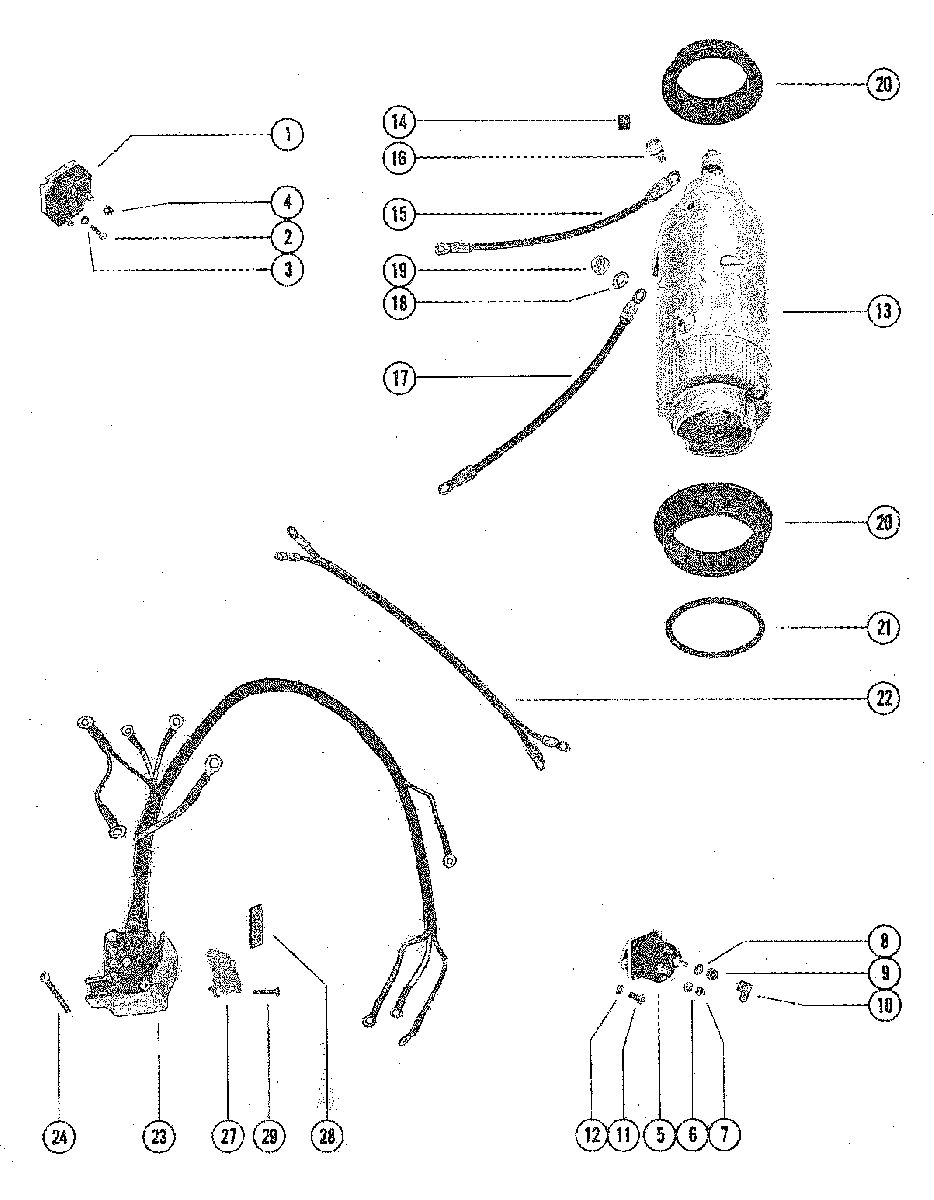

STARTER MOTOR, STARTER SOLENOID AND RECTIFIER ASSEMBLY для Mercury - 70 (3 CYL.) 9135825 THRU 9255130
-
№АртикулНазвание
-
18M0058226 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
210-38055 SCREW, RECTIFIER TO PLATE (5/8")SCREW, RECTIFIER TO PLATE (5/8")
-
313-26996 LOCKWASHER, RECTIFIER SCREWLOCKWASHER, RECTIFIER SCREW
-
411-45076 NUT, RECTIFIER TERMINALNUT, RECTIFIER TERMINAL
-
589-853654A1 STARTER SOLENOIDSTARTER SOLENOID
-
613-26996 LOCKWASHER, SOLENOID TERMINAL (#10)LOCKWASHER, SOLENOID TERMINAL (#10)
-
711-68219 NUT, SOLENOID TERMINAL (#10)NUT, SOLENOID TERMINAL (#10)
-
813-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")LOCKWASHER, SOLENOID TERMINAL (5/16")
-
911-68292 NUT, SOLENOID TERMINAL (5/16")NUT, SOLENOID TERMINAL (5/16")
-
1046265 BOOT, TERMINAL-STARTER SOLENOIDBOOT, TERMINAL-STARTER SOLENOID
-
1110-69054 SCREEW, SOLENOID TO ATTENUATOR (3/4")SCREEW, SOLENOID TO ATTENUATOR (3/4")
-
1213-26992 LOCKWAHER, SOLENOID SCREWLOCKWAHER, SOLENOID SCREW
-
1350-44369A1 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
148M0043376 STOP, RUBBER-STARTER MOTORSTOP, RUBBER-STARTER MOTOR
-
1584-60872 CABLE
STARTER TO SOUND ATTENTUATOR-BLACK (9 1/2")CABLE
STARTER TO SOUND ATTENTUATOR-BLACK (9 1/2") -
1610-69035 SCREW, CABLE TO STARTER MOTOR (5/8")SCREW, CABLE TO STARTER MOTOR (5/8")
-
1784-93389A6 CABLE
SOLENOID TO STARTER MOTOR-YELLOW (9 1/2")CABLE
SOLENOID TO STARTER MOTOR-YELLOW (9 1/2") -
1813-26992 LOCKWASHER, STARTER MOTOR TERMINALLOCKWASHER, STARTER MOTOR TERMINAL
-
1911-20890 NUT, STARTER MOTOR TERMINALNUT, STARTER MOTOR TERMINAL
-
2023-8M0034918 COLLAR, RUBBER-STARTER MOUNTCOLLAR, RUBBER-STARTER MOUNT
-
2123-56774 SPACER, COLLAR TO MOUNTING BRACKETSSPACER, COLLAR TO MOUNTING BRACKETS
-
2284-62862A4 CABLE, BATTERY TO STARTER SOLENOIDCABLE, BATTERY TO STARTER SOLENOID
-
2384-73204 WIRING HARNESS (INTERNAL)WIRING HARNESS (INTERNAL)
-
2410-72202 SCREW, WIRING HARNESS ATACHING (1 1/8")SCREW, WIRING HARNESS ATACHING (1 1/8")
-
2760114A1 BRACKER ASSEMBLY, WIRING HARNESSBRACKER ASSEMBLY, WIRING HARNESS
-
2826-60925 SEAL, WIRING HARNESS BRACKETSEAL, WIRING HARNESS BRACKET
-
2910-89778 SCREW
WIRING HARNESS BRACKET MOUNTING (2 1/8")SCREW
WIRING HARNESS BRACKET MOUNTING (2 1/8")
