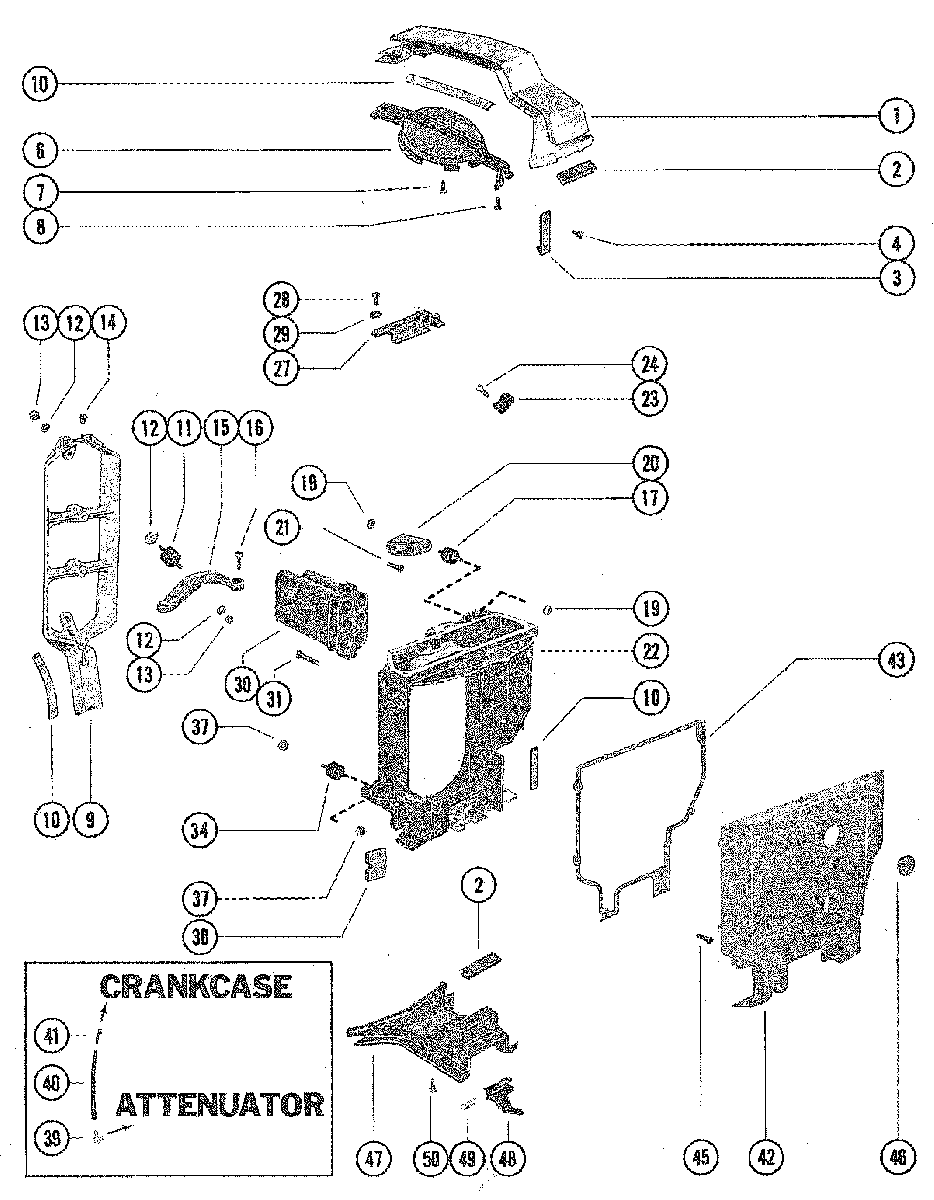

COWL SUPPORT BRACKETS для Mercury - 70 (3 CYL.) 9135825 THRU 9255130

  • №
    Артикул
    Название
  • 1
    73641A1 BRACKET, COWL SUPPORT-TOP
    BRACKET, COWL SUPPORT-TOP
  • 2
    62444 SEAL
    RUBBER- TOP BRACKET AND COVER MOUNTING PLATE
    SEAL
    RUBBER- TOP BRACKET AND COVER MOUNTING PLATE
  • 3
    79652 CLIP, TOP COWL SUPPORT BRACKET
    UNITED STATES 4977156 AND BELOW
    AUSTRALIA 8050199 AND BELOW
    BELGIUM 9196960 AND BELOW
    CANADA 7110997 AND BELOW
    CLIP, TOP COWL SUPPORT BRACKET
    UNITED STATES 4977156 AND BELOW
    AUSTRALIA 8050199 AND BELOW
    BELGIUM 9196960 AND BELOW
    CANADA 7110997 AND BELOW
  • 3
    79652 CLIP, TOP COWL SUPPORT BRACKET
    UNITED STATES 4977157 AND UP
    AUSTRALIA 8050200 AND UP
    BELGIUM 9196961 AND UP
    CANADA 7110998 AND UP
    CLIP, TOP COWL SUPPORT BRACKET
    UNITED STATES 4977157 AND UP
    AUSTRALIA 8050200 AND UP
    BELGIUM 9196961 AND UP
    CANADA 7110998 AND UP
  • 4
    10-48408 SCREW, CLIP TO TOP COWL SUPPORT (1/2")
    SCREW, CLIP TO TOP COWL SUPPORT (1/2")
  • 6
    79490 SHIELD, FLYWHEEL
    UNITED STATES 4977156 AND BELOW
    AUSTRALIA 8050199 AND BELOW
    BELGIUM 9196960 AND BELOW CANADA 7110997 AND BELOW
    SHIELD, FLYWHEEL
    UNITED STATES 4977156 AND BELOW
    AUSTRALIA 8050199 AND BELOW
    BELGIUM 9196960 AND BELOW CANADA 7110997 AND BELOW
  • 6
    79490 SHIELD, FLYWHEEL
    UNITED STATES 4977157 AND UP
    AUSTRALIA 8050200 AND UP
    BELGIUM 9196961 AND UP
    CANADA 7110998 AND UP
    SHIELD, FLYWHEEL
    UNITED STATES 4977157 AND UP
    AUSTRALIA 8050200 AND UP
    BELGIUM 9196961 AND UP
    CANADA 7110998 AND UP
  • 7
    10-37656 SCREW, SHIELD TO TOP SUPPORT BRACKET (5/8")
    SCREW, SHIELD TO TOP SUPPORT BRACKET (5/8")
  • 8
    10-48408 SCREW, SHIELD TO TOP SUPPORT BRACKET (1/2")
    SCREW, SHIELD TO TOP SUPPORT BRACKET (1/2")
  • 9
    74510A2 BRACKET, COWL SUPPORT - REAR
    BRACKET, COWL SUPPORT - REAR
  • 10
    698761 SEAL, REAR BRACKET AND TOP BRACKET
    SEAL, REAR BRACKET AND TOP BRACKET
  • 11
    90435 MOUNT
    RUBBER-BRACE TO REAR TO REAR SUPPORT BRACKET
    MOUNT
    RUBBER-BRACE TO REAR TO REAR SUPPORT BRACKET
  • 12
    12-69057 WASHER
    RUBBER MOUNT TO REAR SUPPORT BRACKET
    WASHER
    RUBBER MOUNT TO REAR SUPPORT BRACKET
  • 13
    11-20184 NUT
    RUBBER MOUNT TO REAR SUPPORT BRACKET
    NUT
    RUBBER MOUNT TO REAR SUPPORT BRACKET
  • 14
    269011 STOP, RUBBER-RAR SUPPORT BRACKET
    STOP, RUBBER-RAR SUPPORT BRACKET
  • 15
    60116 BRACE, REAR COWL SUPPORT BRACKET (TOP)
    BRACE, REAR COWL SUPPORT BRACKET (TOP)
  • 16
    10-76596 SCREW
    SUPPORT BRK. BRACE TO CYL. BLOCK COVER (1 1/4")
    SCREW
    SUPPORT BRK. BRACE TO CYL. BLOCK COVER (1 1/4")
  • 17
    90435 MOUNT
    RUBBER-FRONT SUPPORT BRACKET TO BRACKET
    MOUNT
    RUBBER-FRONT SUPPORT BRACKET TO BRACKET
  • 19
    11-36069 NUT
    RUBBER MOUNT TO FRONT SUPPORT BRACKET
    NUT
    RUBBER MOUNT TO FRONT SUPPORT BRACKET
  • 20
    71097 BRACKET, RUBBER MOUNT
    BRACKET, RUBBER MOUNT
  • 21
    10-824941 SCREW, BRACKET TO CRANKCASE (3/4")
    SCREW, BRACKET TO CRANKCASE (3/4")
  • 22
    79489 ATTENUATOR, SOUND
    UNITED STATES 4977156 AND BELOW
    AUSTRALIA 8050199 AND BELOW
    BELGIUM 9196960 AND BELOW
    CANADA 7110997 AND BELOW
    ATTENUATOR, SOUND
    UNITED STATES 4977156 AND BELOW
    AUSTRALIA 8050199 AND BELOW
    BELGIUM 9196960 AND BELOW
    CANADA 7110997 AND BELOW
  • 22
    79489 ATTENUATOR, SOUND
    UNITED STATES 4977157 AND UP
    AUSTRALIA 8050200 AND UP
    BELGIUM 9196961 AND UP
    CANADA 7110998 AND UP
    ATTENUATOR, SOUND
    UNITED STATES 4977157 AND UP
    AUSTRALIA 8050200 AND UP
    BELGIUM 9196961 AND UP
    CANADA 7110998 AND UP
  • 23
    54-28700 CLAMP, WIRES TO SOUND ATTENUATOR
    CLAMP, WIRES TO SOUND ATTENUATOR
  • 24
    10-98253 SCREW, CLAMP SCREW
    SCREW, CLAMP SCREW
  • 27
    75841 COVER, MANUAL CHOKE
    COVER, MANUAL CHOKE
  • 28
    10-38055 SCREW, COVER TO TOP COVER
    SCREW, COVER TO TOP COVER
  • 29
    12-56681 WASHSER, COVER SCREW
    WASHSER, COVER SCREW
  • 30
    73986 AIR MANIFOLD
    AIR MANIFOLD
  • 31
    10-69093 SCREW, AIR MANIFOLD TO SOUND ATTENUATOR
    SCREW, AIR MANIFOLD TO SOUND ATTENUATOR
  • 34
    90435 MOUNT, RUBBER-FRONT SUPPORT TO STARTER MOTOR COVER
    MOUNT, RUBBER-FRONT SUPPORT TO STARTER MOTOR COVER
  • 37
    11-36069 NUT, RUBBER MOUNT ATTACHING
    NUT, RUBBER MOUNT ATTACHING
  • 38
    76410 SEAL, FUEL CONNECTOR-SOUND ATTENUATOR
    SEAL, FUEL CONNECTOR-SOUND ATTENUATOR
  • 39
    21-428671 CONNECTOR, ATTENUATOR
    CONNECTOR, ATTENUATOR
  • 40
    32-9938779 TUBE, VENT (LOWER)
    TUBE, VENT (LOWER)
  • 41
    22-15133 ELBOW, CRANKCASE VENT (PRESS IN)
    ELBOW, CRANKCASE VENT (PRESS IN)
  • 42
    76578 COVER, SOUND ATTENUATOR (FRONT)
    COVER, SOUND ATTENUATOR (FRONT)
  • 43
    27-76579 GASKET, FRONT COVER
    UNITED STATES 5128279 AND BELOW
    AUSTRALIA 8056219 AND BELOW
    BELGIUM 9207525 AND BELOW
    CANADA 7110997 AND BELOW
    GASKET, FRONT COVER
    UNITED STATES 5128279 AND BELOW
    AUSTRALIA 8056219 AND BELOW
    BELGIUM 9207525 AND BELOW
    CANADA 7110997 AND BELOW
  • 45
    10-37571 SCREW
    FRONT COVER TO SOUND ATTENUATOR (1/2")
    SCREW
    FRONT COVER TO SOUND ATTENUATOR (1/2")
  • 46
    19-73336 PLUG, FRONT COVER
    PLUG, FRONT COVER
  • 47
    76251A1 PLATE ASSEMBLY, FRONT COVER MOUNTING
    PLATE ASSEMBLY, FRONT COVER MOUNTING
  • 48
    76264 LATCH, FRONT COVER ATTACHING
    LATCH, FRONT COVER ATTACHING
  • 49
    24-60295 SPRING, FRONT COVER LATCH
    SPRING, FRONT COVER LATCH
  • 50
    10-28635 SCREW
    COVER PLATE TO SUPPORT BRACKET (5/8")
    SCREW
    COVER PLATE TO SUPPORT BRACKET (5/8")
  • -
    27-88449A32 GASKET SET
    GASKET SET
  • -
    27-88449A32 GASKET SET
    GASKET SET
