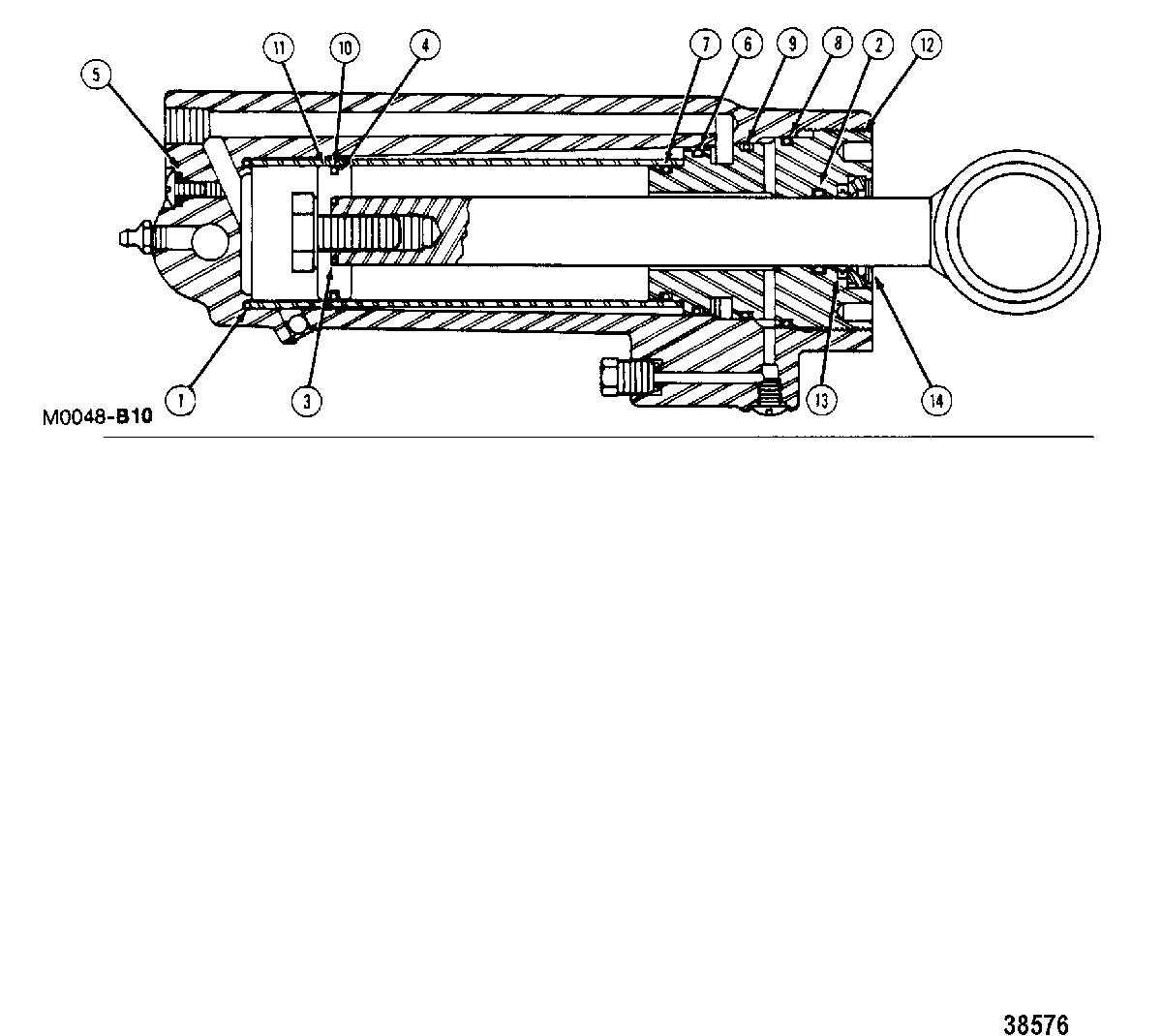

POWER TRIM CYLINDER REPAIR KITS(USE WITH 76509A3) для Mercury - 70 (3 CYL.) 7145938 THRU 7208332
-
№АртикулНазвание
-
-64507A1 REPAIR KIT (SEE NOTE BELOW)REPAIR KIT (SEE NOTE BELOW)
-
1N.S.S. Not Sold Separate, O-RING (1-1/2" X 1-5/8" X 1/16")Not Sold Separate, O-RING (1-1/2" X 1-5/8" X 1/16")
-
2N.S.S. Not Sold Separate (3/4" X 15/16" X 1/8")Not Sold Separate (3/4" X 15/16" X 1/8")
-
3N.S.S. Not Sold Separate, O-RING (5/8" X 3/4" X 1/16")Not Sold Separate, O-RING (5/8" X 3/4" X 1/16")
-
4N.S.S. Not Sold Separate, O-RING (1-1/4" X 1-7/16" X 1/16")Not Sold Separate, O-RING (1-1/4" X 1-7/16" X 1/16")
-
5N.S.S. Not Sold Separate, O-RING (7/32" X 11/32" X 1/16")Not Sold Separate, O-RING (7/32" X 11/32" X 1/16")
-
6N.S.S. Not Sold Separate, O-RING (1-5/8" X 1-13/16" X 1/8")Not Sold Separate, O-RING (1-5/8" X 1-13/16" X 1/8")
-
7N.S.S. Not Sold Separate, O-RING (1-5/16" X 1-1/2" X 1/8")Not Sold Separate, O-RING (1-5/16" X 1-1/2" X 1/8")
-
8N.S.S. Not Sold Separate, O-RING (1-7/8" X 2" X 1/8")Not Sold Separate, O-RING (1-7/8" X 2" X 1/8")
-
9N.S.S. Not Sold Separate, O-RING (1-3/4" X 1-15/16" X 1/8")Not Sold Separate, O-RING (1-3/4" X 1-15/16" X 1/8")
-
10N.S.S. Not Sold Separate, SEAL, SLIPPER - PISTONNot Sold Separate, SEAL, SLIPPER - PISTON
-
11N.S.S. Not Sold Separate, PISTON, ROD - HEAVY DUTYNot Sold Separate, PISTON, ROD - HEAVY DUTY
-
1264505A1 RETAINER ASSEMBLY, PISTONRETAINER ASSEMBLY, PISTON
-
13N.S.S. Not Sold Separate, ROD, SCRAPERNot Sold Separate, ROD, SCRAPER
-
14N.S.S. Not Sold Separate, RETAINER, SCRAPERNot Sold Separate, RETAINER, SCRAPER
