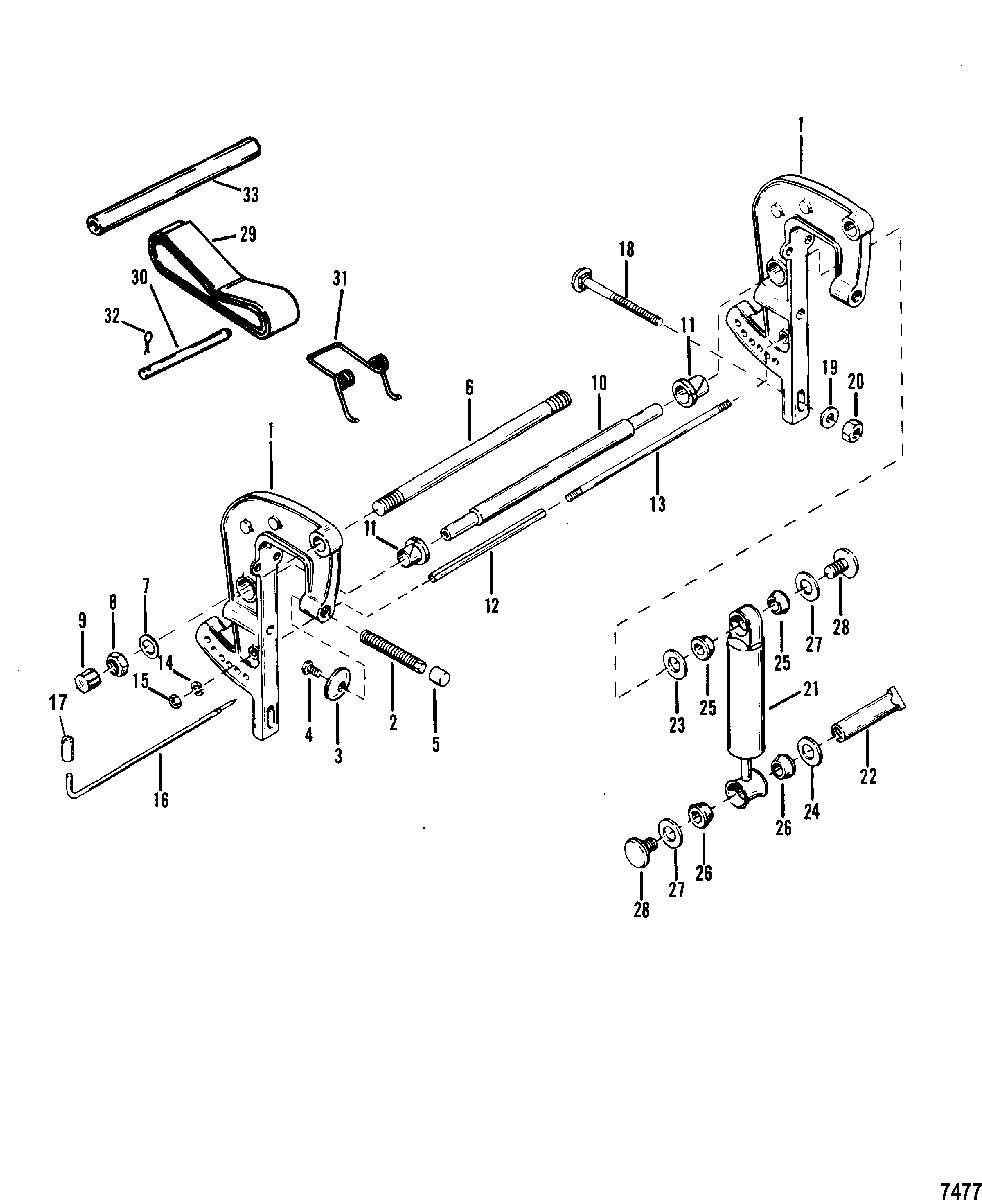

CLAMP BRACKET ASSEMBLY для Mercury - 70 (3 CYL.) 7145938 THRU 7208332

  • №
    Артикул
    Название
  • 1
    1440-8394A1 CLAMP BRACKET ASSEMBLY
    CLAMP BRACKET ASSEMBLY
  • 2
    10-78492A1 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 3
    12-78493 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 4
    10-78495 SCREW, (.312-24 x .680), WASHER TO THUMB SCREW
    SCREW, (.312-24 x .680), WASHER TO THUMB SCREW
  • 5
    75043 CAP, THUMB SCREW (ELECTRIC)
    CAP, THUMB SCREW (ELECTRIC)
  • 6
    8M0041936 TILT TUBE
    TILT TUBE
  • 7
    12-52864 WASHER, TILT TUBE
    WASHER, TILT TUBE
  • 8
    11-858869 NUT, (.875-14), TILT TUBE
    NUT, (.875-14), TILT TUBE
  • 9
    53078 CAP, PLASTIC-TILT TUBE
    CAP, PLASTIC-TILT TUBE
  • 10
    55-28416 PIN, UPPER SHOCK (WITH SHOCK ABSORBER)
    PIN, UPPER SHOCK (WITH SHOCK ABSORBER)
  • 11
    23-73203 BUSHING, CLAMP BRACKET
    BUSHING, CLAMP BRACKET
  • 12
    23-59623 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 13
    16-59625 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 14
    13-26993 LOCKWASHER, (.312), CLAMP BRACKET STUD
    LOCKWASHER, (.312), CLAMP BRACKET STUD
  • 15
    11-28770 NUT, (.312-24) Stainless Steel, CLAMP BRACKET STUD
    NUT, (.312-24) Stainless Steel, CLAMP BRACKET STUD
  • 16
    17-8M0026068 PIN ASSEMBLY, Tilt Lock
    PIN ASSEMBLY, Tilt Lock
  • 17
    32-28052 SLEEVE, RUBBER-TILT LOCK PIN
    SLEEVE, RUBBER-TILT LOCK PIN
  • 18
    10-68298 BOLT, (.375-16 x 3.250), CLAMP BRACKET TO TRANSOM
    BOLT, (.375-16 x 3.250), CLAMP BRACKET TO TRANSOM
  • 18
    10-89673 SCREW, (.375-16 x 5.00), CLAMP BRACKET TO TRANSOM
    SCREW, (.375-16 x 5.00), CLAMP BRACKET TO TRANSOM
  • 19
    12-46765 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 19
    16-28520 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 19
    12-68300 WASHER, (..88 x .39 x .06), CLAMP BRACKET BOLT
    WASHER, (..88 x .39 x .06), CLAMP BRACKET BOLT
  • 20
    11-82671112 NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
  • 21
    55-58780A7 SHOCK ABSORBER MERCURY
    WITH SHOCK ABSORBER
    SHOCK ABSORBER MERCURY
    WITH SHOCK ABSORBER
  • 22
    55-696531 PIN, LOWER SHOCK
    WITH SHOCK ABSORBER
    PIN, LOWER SHOCK
    WITH SHOCK ABSORBER
  • 23
    12-28196 WASHER, UPPER BUSHING RETAINER (INNER)
    WITH SHOCK ABSORBER
    WASHER, UPPER BUSHING RETAINER (INNER)
    WITH SHOCK ABSORBER
  • 24
    12-59378 WASHER, LOWER BUSHING RETAINER (INNER)
    WITH SHOCK ABSORBER
    WASHER, LOWER BUSHING RETAINER (INNER)
    WITH SHOCK ABSORBER
  • 25
    23-32171 BUSHING, RUBBER-SHOCK ABSORBER (UPPER)
    WITH SHOCK ABSORBER
    BUSHING, RUBBER-SHOCK ABSORBER (UPPER)
    WITH SHOCK ABSORBER
  • 26
    23-28198 BUSHING, RUBBER-SHOCK ABSORBER (LOWER)
    WITH SHOCK ABSORBER
    BUSHING, RUBBER-SHOCK ABSORBER (LOWER)
    WITH SHOCK ABSORBER
  • 27
    12-69374 WASHER, UPPER AND LOWER BUSHING (OUTER)
    WITH SHOCK ABSORBER
    WASHER, UPPER AND LOWER BUSHING (OUTER)
    WITH SHOCK ABSORBER
  • 28
    10-69375A1 SCREW, (.500-20 x .625), UPPER AND LOWER SHOCK PIN
    SCREW, (.500-20 x .625), UPPER AND LOWER SHOCK PIN
  • 29
    98876 STRAP, TILT STOP
    WITHOUT SHOCK ABSORBER
    STRAP, TILT STOP
    WITHOUT SHOCK ABSORBER
  • 30
    98878 PIN, LOWER MOUNT
    WITHOUT SHOCK ABSORBER
    PIN, LOWER MOUNT
    WITHOUT SHOCK ABSORBER
  • 31
    24-98875 SPRING
    WITHOUT SHOCK ABSORBER
    SPRING
    WITHOUT SHOCK ABSORBER
  • 32
    18-328571 COTTER PIN
    WITHOUT SHOCK ABSORBER
    COTTER PIN
    WITHOUT SHOCK ABSORBER
  • 33
    98877 SHOCK MOUNT, Upper
    WITHOUT SHOCK ABSORBER
    SHOCK MOUNT, Upper
    WITHOUT SHOCK ABSORBER
