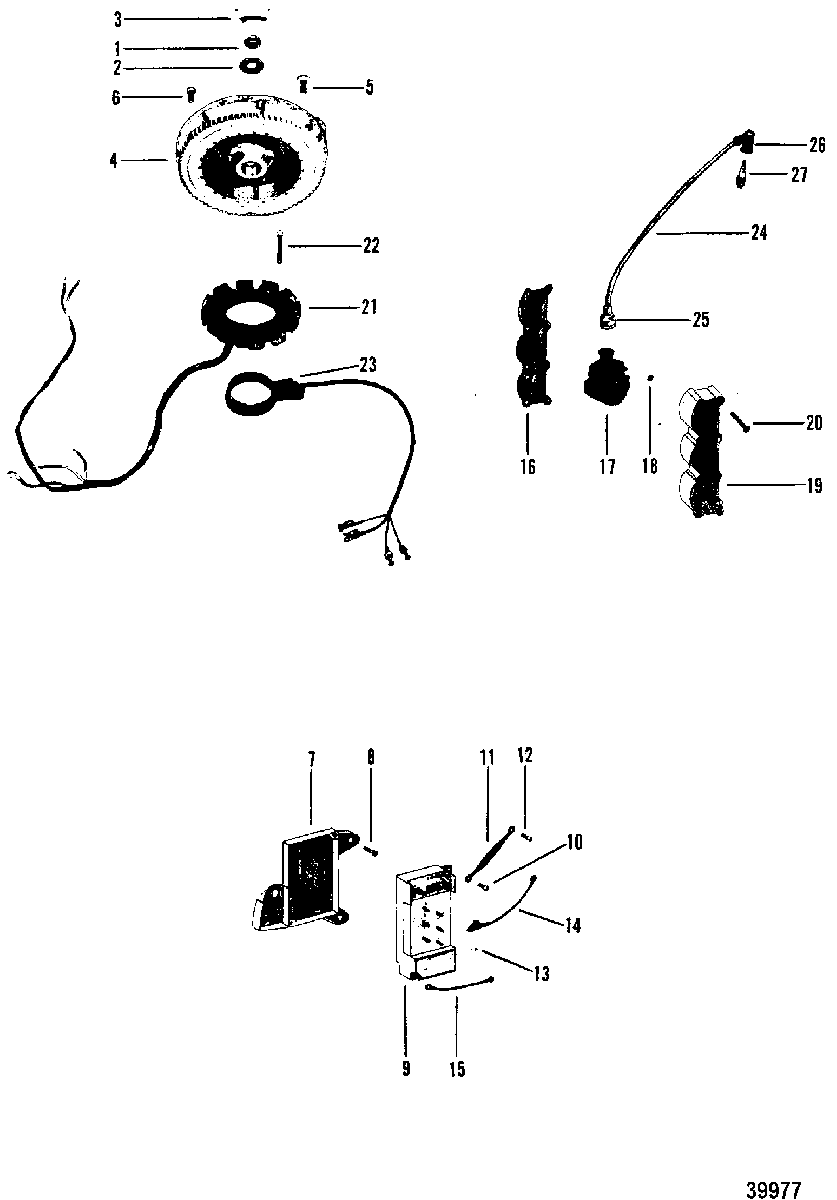

FLYWHEEL, SWITCH BOX, IGNITION COIL, STATOR для Mercury - 70 (3 CYL.) 5579017 THRU 6428680
-
№АртикулНазвание
-
111-52901 NUT, (.625-18), FLYWHEELNUT, (.625-18), FLYWHEEL
-
212-33001 WASHER, (.641 x 1.250 x .190), FLYWHEEL NUTWASHER, (.641 x 1.250 x .190), FLYWHEEL NUT
-
319-45907 PLUG, Yellow, FLYWHEEL PULLER THREADSPLUG, Yellow, FLYWHEEL PULLER THREADS
-
4248-8722A5 FLYWHEEL ASSEMBLY
SN# USA-6279959/Belgium-9372270/Canada-7202652 & BelowFLYWHEEL ASSEMBLY
SN# USA-6279959/Belgium-9372270/Canada-7202652 & Below -
4248-8722A5 FLYWHEEL ASSEMBLY
SN# USA-6279960/Belgium-9372271/Canada-7202653 & UpFLYWHEEL ASSEMBLY
SN# USA-6279960/Belgium-9372271/Canada-7202653 & Up -
510-68997 SCREW, (.312-24 x .750), PLATE/HUBSCREW, (.312-24 x .750), PLATE/HUB
-
610-32417 SCREW, (.250-28 x .625), FLEXIBLE PLATE TO FLYWHEELSCREW, (.250-28 x .625), FLEXIBLE PLATE TO FLYWHEEL
-
7889351 PLATE, SWITCH BOXPLATE, SWITCH BOX
-
810-824941 SCREW, (.312-18 x .750), SWITCH BOX PLATESCREW, (.312-18 x .750), SWITCH BOX PLATE
-
9332-7778A12 SWITCHBOX ASSEMBLYSWITCHBOX ASSEMBLY
-
1010-20619 SCREW, (#12-24 x 1.25), SWITCH BOX TO PLATESCREW, (#12-24 x 1.25), SWITCH BOX TO PLATE
-
1184-60466A8 CABLE ASSEMBLY, Black, SWITCH BOX SCREWCABLE ASSEMBLY, Black, SWITCH BOX SCREW
-
1210-62568 SCREW, (#10-16 x .375), WIRE ATTACHINGSCREW, (#10-16 x .375), WIRE ATTACHING
-
1311-45076 NUT, (#10-32) Brass, SWITCH BOX TERMINALNUT, (#10-32) Brass, SWITCH BOX TERMINAL
-
1484-60443A3 WIRE ASSEMBLY, SWITCH BOX TO COIL
(GREEN)WIRE ASSEMBLY, SWITCH BOX TO COIL
(GREEN) -
1484-62822A1 WIRE ASSEMBLY, SWITCH BOX TO COIL
(GREEN/WHITE)WIRE ASSEMBLY, SWITCH BOX TO COIL
(GREEN/WHITE) -
1484-68896A4 WIRE ASSEMBLY, SWITCH BOX TO COIL
(GREEN/RED)WIRE ASSEMBLY, SWITCH BOX TO COIL
(GREEN/RED) -
1584-60466A1 CABLE ASSEMBLY, Black (2.50 Inches) , SWITCH BOX TO COILCABLE ASSEMBLY, Black (2.50 Inches) , SWITCH BOX TO COIL
-
1673439 PLATE, MOUNTING-IGNITION COILPLATE, MOUNTING-IGNITION COIL
-
17339-832757A4 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
1811-45076 NUT, (#10-32) Brass, IGNITION COIL TERMINALNUT, (#10-32) Brass, IGNITION COIL TERMINAL
-
1943542 COVER, INGITION COILCOVER, INGITION COIL
-
2010-92399 SCREW, (.190-32 x 2.250), COVER TO MOUNTING PLATESCREW, (.190-32 x 2.250), COVER TO MOUNTING PLATE
-
21398-5704A7 STATOR ASSEMBLYSTATOR ASSEMBLY
-
2210-63136 SCREW, (#10-24 x .880), STATOP TO UPPER END CAPSCREW, (#10-24 x .880), STATOP TO UPPER END CAP
-
2396455A8 TRIGGER PLATE ASSEMBLYTRIGGER PLATE ASSEMBLY
-
2484-813715A1 LEAD ASSEMBLY, SPARK PLUGLEAD ASSEMBLY, SPARK PLUG
-
25332-2854T01 BOOT, IGNITION COIL ENDBOOT, IGNITION COIL END
-
2685-63709A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
2733-97180Q SPARK PLUG (AC#V40FFM)SPARK PLUG (AC#V40FFM)
-
2733-14103550 SPARK PLUG (CHAMPION#QL-76V)
CANADA AND BELGIUMSPARK PLUG (CHAMPION#QL-76V)
CANADA AND BELGIUM
