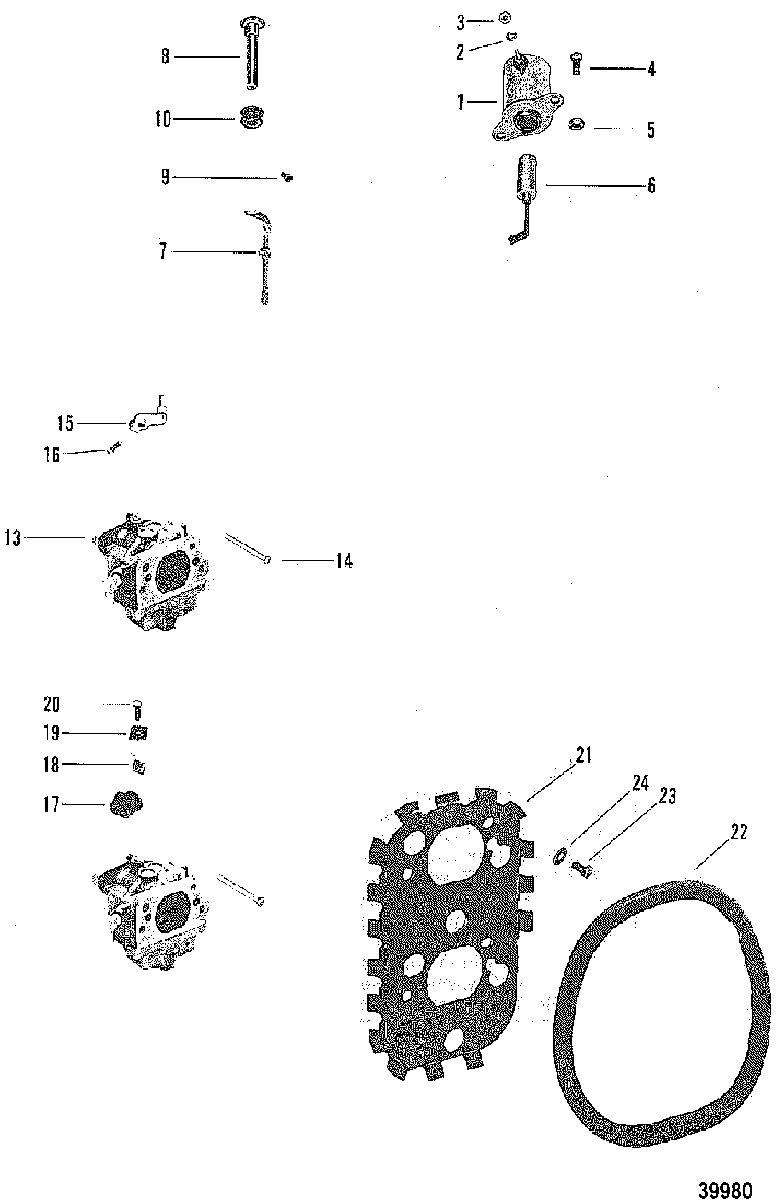

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 70 (3 CYL.) 5579017 THRU 6428680

  • №
    Артикул
    Название
  • 1
    60549A7 SOLENOID ASSEMBLY, Choke
    SOLENOID ASSEMBLY, Choke
  • 2
    13-26996 LOCKWASHER, (#10) Stainless Steel, CHOKE SOLENOID TERMINAL
    LOCKWASHER, (#10) Stainless Steel, CHOKE SOLENOID TERMINAL
  • 3
    11-68219 NUT, (#10-32) Stainless Steel, CHOKE SOLENOID TERMINAL
    NUT, (#10-32) Stainless Steel, CHOKE SOLENOID TERMINAL
  • 4
    10-33524 SCREW, (.312-24 x .620), CHOKE SOLENOID
    SCREW, (.312-24 x .620), CHOKE SOLENOID
  • 4
    10-78841 SCREW, CHOKE SOLENOID (1-1/2")
    SCREW, CHOKE SOLENOID (1-1/2")
  • 5
    11-29250 NUT, (.312-24), CHOKE SOLENOID SCREWS
    NUT, (.312-24), CHOKE SOLENOID SCREWS
  • 6
    89008A2 PLUNGER ASSEMBLY, CHOKE SOLENOID
    PLUNGER ASSEMBLY, CHOKE SOLENOID
  • 7
    76076A1 ROD ASSEMBLY, Choke
    ROD ASSEMBLY, Choke
  • 8
    90242A1 KNOB ASSEMBLY
    KNOB ASSEMBLY
  • 9
    10-77137 SCREW, (.190-16 x .620), WIRE TO CHOKE KNOB
    SCREW, (.190-16 x .620), WIRE TO CHOKE KNOB
  • 10
    25-20116 GROMMET, CHOKE KNOB
    GROMMET, CHOKE KNOB
  • 13
    1379-6071A29 CARBURETOR ASSEMBLY
    (WM-11)
    CARBURETOR ASSEMBLY
    (WM-11)
  • 13
    1379-6071A39 CARBURETOR ASSEMBLY
    (WM-13)
    CARBURETOR ASSEMBLY
    (WM-13)
  • 14
    10-52743 SCREW, (.312-18 x 3.750), CARBURETOR TO CRANKCASE
    SCREW, (.312-18 x 3.750), CARBURETOR TO CRANKCASE
  • 15
    77583 LEVER, THROTTLE
    LEVER, THROTTLE
  • 16
    10-60293 SCREW, (#5-40 x .500), LEVER TO CARBURETOR
    SCREW, (#5-40 x .500), LEVER TO CARBURETOR
  • 17
    60292A1 COUPLING ASSEMBLY
    COUPLING ASSEMBLY
  • 18
    28-89694 KEY, THROTTLE SHAFT COUPLING
    KEY, THROTTLE SHAFT COUPLING
  • 19
    11-92500 PUSH NUT, ROLLER-COUPLING
    PUSH NUT, ROLLER-COUPLING
  • 20
    10-60293 SCREW, (#5-40 x .500), ROLLED WASHER TO COUPLING
    SCREW, (#5-40 x .500), ROLLED WASHER TO COUPLING
  • 21
    91996A1 PLATE ASSEMBLY, CARBURETOR
    PLATE ASSEMBLY, CARBURETOR
  • 22
    71090 SEAL, CARBURETOR PLATE
    SEAL, CARBURETOR PLATE
  • 23
    10-20367 SCREW, PLATE TO CARBURETOR (7/16")
    SCREW, PLATE TO CARBURETOR (7/16")
  • 24
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, PLATE SCREW
    WASHER, (.281 x .500 x .060) Stainless Steel, PLATE SCREW
