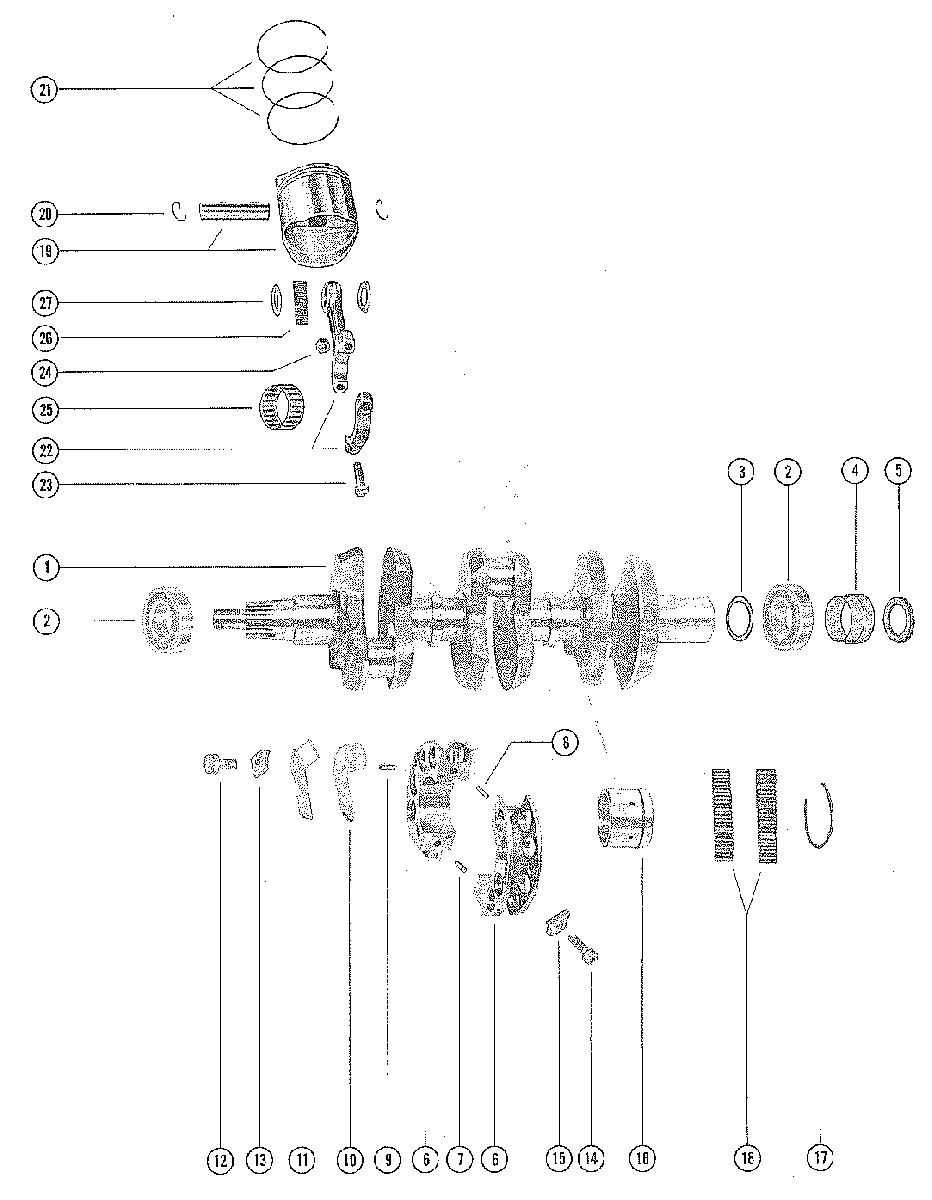

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 650 (3 CYL.) 3547987 THRU 4382056
-
№АртикулНазвание
-
1462-8839A2 CRANKSHAFT ASSEMLBYCRANKSHAFT ASSEMLBY
-
230-64424T BEARING, BALL - LOWER AND UPPOERBEARING, BALL - LOWER AND UPPOER
-
315-22369A1 SHIM, LOWER BEARING TO CRANKSHAFTSHIM, LOWER BEARING TO CRANKSHAFT
-
460834A3 CARRIER ASSEMLBY, "O" RINGCARRIER ASSEMLBY, "O" RING
-
564254001 "O" RING, CARRIER"O" RING, CARRIER
-
6542-7509A3 MAIN BEARING ASSEMBLY (VALVE TYPE)MAIN BEARING ASSEMBLY (VALVE TYPE)
-
717-20032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
817-60282 DOWEL PIN (STEPPED)DOWEL PIN (STEPPED)
-
917-65855 DOWEL PIN, REED STOPDOWEL PIN, REED STOP
-
1034-66051A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
1134-65946 REED STOPREED STOP
-
1210-77280 SCREW, REED STOP MOUNTING (9/16")SCREW, REED STOP MOUNTING (9/16")
-
1311-20110 NUT, REED STOP MOUNTING SCREWNUT, REED STOP MOUNTING SCREW
-
1410-45775 SCREW, MAIN BEARING CLAMPING (9/16")SCREW, MAIN BEARING CLAMPING (9/16")
-
1511-45774 NUT, MAIN BEARING SCREW CLAMPINGNUT, MAIN BEARING SCREW CLAMPING
-
1626113T RACE, OUTER (PAIR)RACE, OUTER (PAIR)
-
1753-26933 RING, SNAP - OUTER RACE CLAMPINGRING, SNAP - OUTER RACE CLAMPING
-
1829-714221 BEARING, NEEDLEBEARING, NEEDLE
-
19774-9137A12 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
2053-857196 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
2139-78816A12 RING, PISTONRING, PISTON
-
22624-8101A3 CONNECTING ROD AND CAP ASSEMBLYCONNECTING ROD AND CAP ASSEMBLY
-
2310-54803 SCREW, CAP TO CONNECTING ROD (1 1/2")SCREW, CAP TO CONNECTING ROD (1 1/2")
-
2411-49091 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
2531-62596A1 BEARING ASSEMBLY, CRANKPINBEARING ASSEMBLY, CRANKPIN
-
2629-47270 BARING, NEEDLE - PISTON PINBARING, NEEDLE - PISTON PIN
-
2712-8M0032839 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
-
--774-9137A13 PISTON AND PISTON PIN ASSEMBLY (.015)
OVERSIZE PISTON AND RINGPISTON AND PISTON PIN ASSEMBLY (.015)
OVERSIZE PISTON AND RING -
--39-78811A12 RING, PISTON (.015)
OVERSIZE PISTON AND RINGRING, PISTON (.015)
OVERSIZE PISTON AND RING
