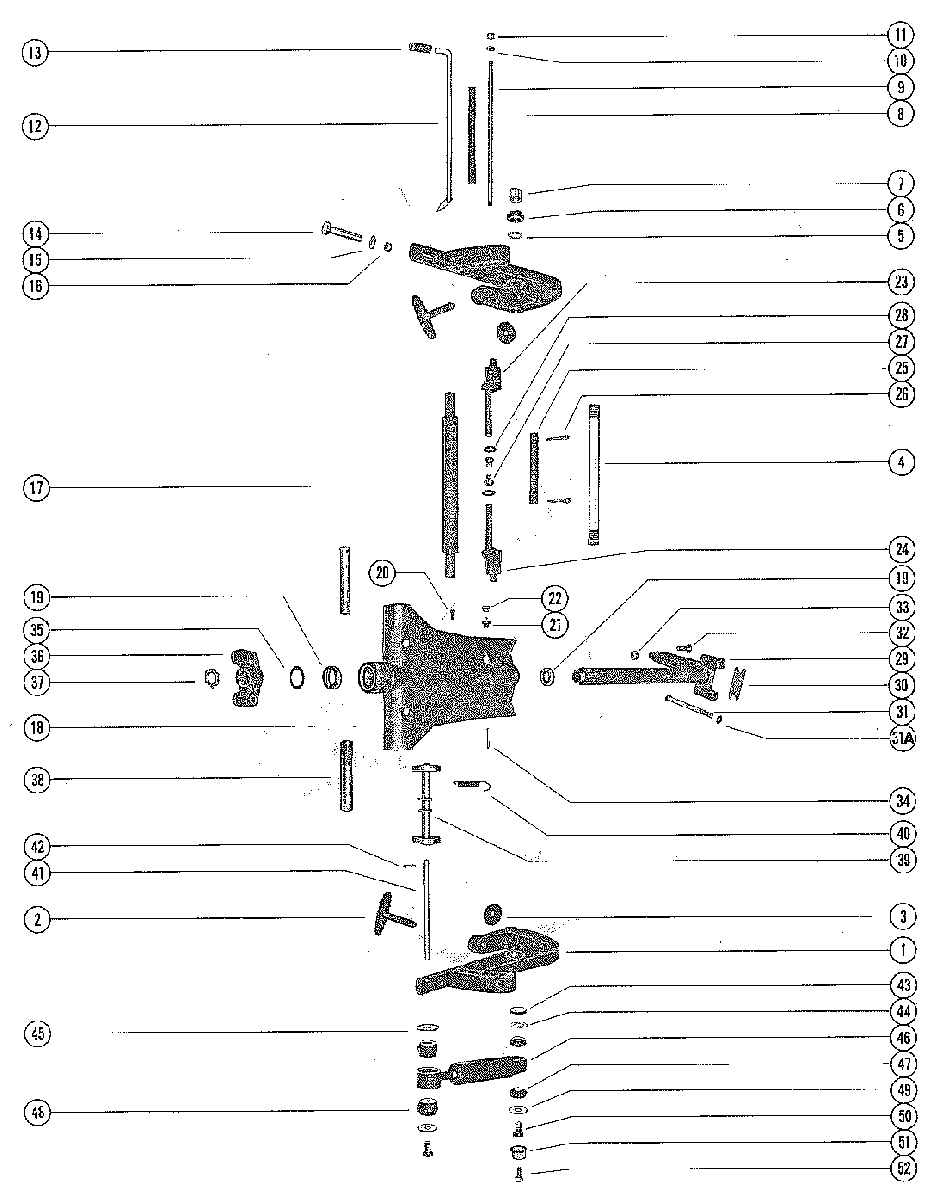

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 650 (3 CYL.) 3547987 THRU 4382056
-
№АртикулНазвание
-
11440-8394A1 CLAMP BRACKET ASSEMBLY
UNITED STATES 4136684 AND BELOW
AUSTRALIA 8029189 AND BELOW
BELGIUM 9082138 AND BELOW
CANADA 7051132 AND BELOWCLAMP BRACKET ASSEMBLY
UNITED STATES 4136684 AND BELOW
AUSTRALIA 8029189 AND BELOW
BELGIUM 9082138 AND BELOW
CANADA 7051132 AND BELOW -
228403A3 THUMB SCREW ASSEMBLY
UNITED STATES 4136684 AND BELOW
AUSTRALIA 8029189 AND BELOW
BELGIUM 9082138 AND BELOW
CANADA 7051132 AND BELOWTHUMB SCREW ASSEMBLY
UNITED STATES 4136684 AND BELOW
AUSTRALIA 8029189 AND BELOW
BELGIUM 9082138 AND BELOW
CANADA 7051132 AND BELOW -
312-28404 WASHER, THUMB SCREW
UNITED STATES 4136684 AND BELOW
AUSTRALIA 8029189 AND BELOW
BELGIUM 9082138 AND BELOW
CANADA 7051132 AND BELOWWASHER, THUMB SCREW
UNITED STATES 4136684 AND BELOW
AUSTRALIA 8029189 AND BELOW
BELGIUM 9082138 AND BELOW
CANADA 7051132 AND BELOW -
11440-8394A1 CLAMP BRACKET ASSEMBLY
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UPCLAMP BRACKET ASSEMBLY
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UP -
210-78492A1 THUMB SCREW ASSEMBLY
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UPTHUMB SCREW ASSEMBLY
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UP -
312-70988 WASHER, THUMB SCREW
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UPWASHER, THUMB SCREW
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UP -
48M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKETTUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
-
512-52864 WASHER, CLAMP BRACKET TILT TUBEWASHER, CLAMP BRACKET TILT TUBE
-
611-858869 NUT, TILT TUBE FASTENINGNUT, TILT TUBE FASTENING
-
753078 CAP, PLASTIC - TILT TUBECAP, PLASTIC - TILT TUBE
-
823-59624 SPACER, CLAMP BRACKET SUTDSPACER, CLAMP BRACKET SUTD
-
916-59625 STUD, CLAMP BRACKET (9 1/2")STUD, CLAMP BRACKET (9 1/2")
-
1013-26993 LOCKWASHER, CLAMP BRACKET STUDLOCKWASHER, CLAMP BRACKET STUD
-
1111-28770 NUT, CLAMP BRACKET STUDNUT, CLAMP BRACKET STUD
-
1217-8M0026068 TILT LOCK PIN ASSEMBLYTILT LOCK PIN ASSEMBLY
-
1312-28053 SLEEVE, RUBBER - TILT LOCK PIN BUMPERSLEEVE, RUBBER - TILT LOCK PIN BUMPER
-
1410-68298 BOLT, CLAMP BRACKET TO BOAT TRANSCOM (3 1/4")BOLT, CLAMP BRACKET TO BOAT TRANSCOM (3 1/4")
-
1512-46765 WASHER, CLAMP BRACKET BOLTWASHER, CLAMP BRACKET BOLT
-
1410-68299 BOLT, CLAMP BRACKET TO BOAT TRANSCOM (3")BOLT, CLAMP BRACKET TO BOAT TRANSCOM (3")
-
1512-68300 WASHER, CLAMP BRACKET BOLTWASHER, CLAMP BRACKET BOLT
-
1611-82670912 NUT, CLAMP BRACKET BOLTNUT, CLAMP BRACKET BOLT
-
1755-28416 PIN, UPPER SHOCK MOUNTINGPIN, UPPER SHOCK MOUNTING
-
181489-8597A4 SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
-
181490-8599A6 SWIVEL BRACKE ASSEMBLY (LONG SHAFT)SWIVEL BRACKE ASSEMBLY (LONG SHAFT)
-
1926-32911 OIL SEAL, SWIVEL BRACKETOIL SEAL, SWIVEL BRACKET
-
2010-47828 SCREW, DRIVE - SWIVEL BRACKETSCREW, DRIVE - SWIVEL BRACKET
-
2122-69059 FITTING, GREASEFITTING, GREASE
-
2219-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTINGLUBRICAP, SWIVEL BRACKET GREASE FITTING
-
2376386 TILT LOCK ASSEMBLY, STARBOARDTILT LOCK ASSEMBLY, STARBOARD
-
2476385T TILT LOCK ASSEMBLY, PORTTILT LOCK ASSEMBLY, PORT
-
2547802 RUBE, TILT LOCKRUBE, TILT LOCK
-
2618-47959 COTTER PIN, TILT LOCKCOTTER PIN, TILT LOCK
-
2723-71574 BUSHING, TILT LOCK TUBEBUSHING, TILT LOCK TUBE
-
2813-69150 WASHER, WAVE - TILT LOCK TUBEWASHER, WAVE - TILT LOCK TUBE
-
2960316A2 SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)
UNITED STATES 4136684 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOWSWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)
UNITED STATES 4136684 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOW -
2969540A2 SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)
UNITED STATES 4136684 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOWSWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)
UNITED STATES 4136684 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOW -
2969540A1 SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)
UNITED STATES 4136685 AND UP
AUSTRALIA 8021840 AND UP
BELGIUM 9067869 AND UP
CANADA 7039238 AND UPSWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)
UNITED STATES 4136685 AND UP
AUSTRALIA 8021840 AND UP
BELGIUM 9067869 AND UP
CANADA 7039238 AND UP -
2969540A2 SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)
UNITED STATES 4136685 AND UP
AUSTRALIA 8021840 AND UP
BELGIUM 9067869 AND UP
CANADA 7039238 AND UPSWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)
UNITED STATES 4136685 AND UP
AUSTRALIA 8021840 AND UP
BELGIUM 9067869 AND UP
CANADA 7039238 AND UP -
3030711 BUMPER, STEERING ARMBUMPER, STEERING ARM
-
3110-33986 BOLT, UPPER MOUNT TO SWIVEL PIN (3/8 X 5 1/4")
UNITED STATES 4136684 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOWBOLT, UPPER MOUNT TO SWIVEL PIN (3/8 X 5 1/4")
UNITED STATES 4136684 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOW -
3110-66897 BOLT, UPPER MOUNT TO SWIVEL PIN (7/16 X 5 1/4")
UNITED STATES 4136685 AND UP
AUSTRALIA 8021840 AND UP
BELGIUM 9067869 AND UP
CANADA 7039238 AND UPBOLT, UPPER MOUNT TO SWIVEL PIN (7/16 X 5 1/4")
UNITED STATES 4136685 AND UP
AUSTRALIA 8021840 AND UP
BELGIUM 9067869 AND UP
CANADA 7039238 AND UP -
31A12-35935 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
3210-31830 SCREW, RIDE-GUIDE ATTACHING (1 3/4")
UNITED STATES 3807832 AND BELOW
AUSTRALIA 8015539 AND BELOW
BELGIUM 9046298 AND BELOW
CANADA 7029947 AND BELOWSCREW, RIDE-GUIDE ATTACHING (1 3/4")
UNITED STATES 3807832 AND BELOW
AUSTRALIA 8015539 AND BELOW
BELGIUM 9046298 AND BELOW
CANADA 7029947 AND BELOW -
3311-8M0042636 NUT, RIDE-GUIDE ATTACHING SCREW
UNITED STATES 3807832 AND BELOW
AUSTRALIA 8015539 AND BELOW
BELGIUM 9046298 AND BELOW
CANADA 7029947 AND BELOWNUT, RIDE-GUIDE ATTACHING SCREW
UNITED STATES 3807832 AND BELOW
AUSTRALIA 8015539 AND BELOW
BELGIUM 9046298 AND BELOW
CANADA 7029947 AND BELOW -
3417-25598 PIN, REVERSE LOCK SPRING ATTACHINGPIN, REVERSE LOCK SPRING ATTACHING
-
3512-25176 WASHER, SWIVEL PIN TO BOTTOM YOKE (.062)WASHER, SWIVEL PIN TO BOTTOM YOKE (.062)
-
3512-26837 WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)
-
3677416T1 YOKE, BOTTOM
UNITED STATES 4136684 AND BELOW
AUSTRALIA 8029189 AND BELOW
BELGIUM 9082138 AND BELOW
CANADA 7051132 AND BELOWYOKE, BOTTOM
UNITED STATES 4136684 AND BELOW
AUSTRALIA 8029189 AND BELOW
BELGIUM 9082138 AND BELOW
CANADA 7051132 AND BELOW -
3677416T1 YOKE, BOTTOM
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UPYOKE, BOTTOM
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UP -
3711-71956 NUT, SWIVEL PIN RETAININGNUT, SWIVEL PIN RETAINING
-
3855-696531 PIN, LOWER SHOCK MOUNTINGPIN, LOWER SHOCK MOUNTING
-
3987432 REVERSE LOCKREVERSE LOCK
-
4024-29821 SPRING, REVERSE LOCK TENSIONSPRING, REVERSE LOCK TENSION
-
4156349 SHAFT, REVERSE LOCK PIVOTSHAFT, REVERSE LOCK PIVOT
-
4218-45882 COTTER PIN, REVERSE LOCK TO SHAFTCOTTER PIN, REVERSE LOCK TO SHAFT
-
4323-28199 SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKETSPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET
-
4412-28196 WASHER, UPPER BUSHING RETAINER (INNER)WASHER, UPPER BUSHING RETAINER (INNER)
-
4512-59378 WASHER, LOWER BUSHING RETAINER (INNER)WASHER, LOWER BUSHING RETAINER (INNER)
-
4655-58780A7 SHOCK ABSORBERSHOCK ABSORBER
-
4723-32171 BUSHING, RUBBER - SHOCK ABSORBER (UPPER)BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
-
4823-28198 BUSHING, RUBBER - SHOCK ABSORBER (LOWER)BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
-
4912-28421 WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)
-
5010-69375A1 SCREW, UPPER AND LOWER SHOCK MOUNTING PIN (3/4")SCREW, UPPER AND LOWER SHOCK MOUNTING PIN (3/4")
-
5170679 COVER, UPPER AND LOWER SHOCK MOUNTING PINCOVER, UPPER AND LOWER SHOCK MOUNTING PIN
-
5210-37655 SCREW, COVER TO SHOCK MOUNTING SCREWS (1/2")SCREW, COVER TO SHOCK MOUNTING SCREWS (1/2")
