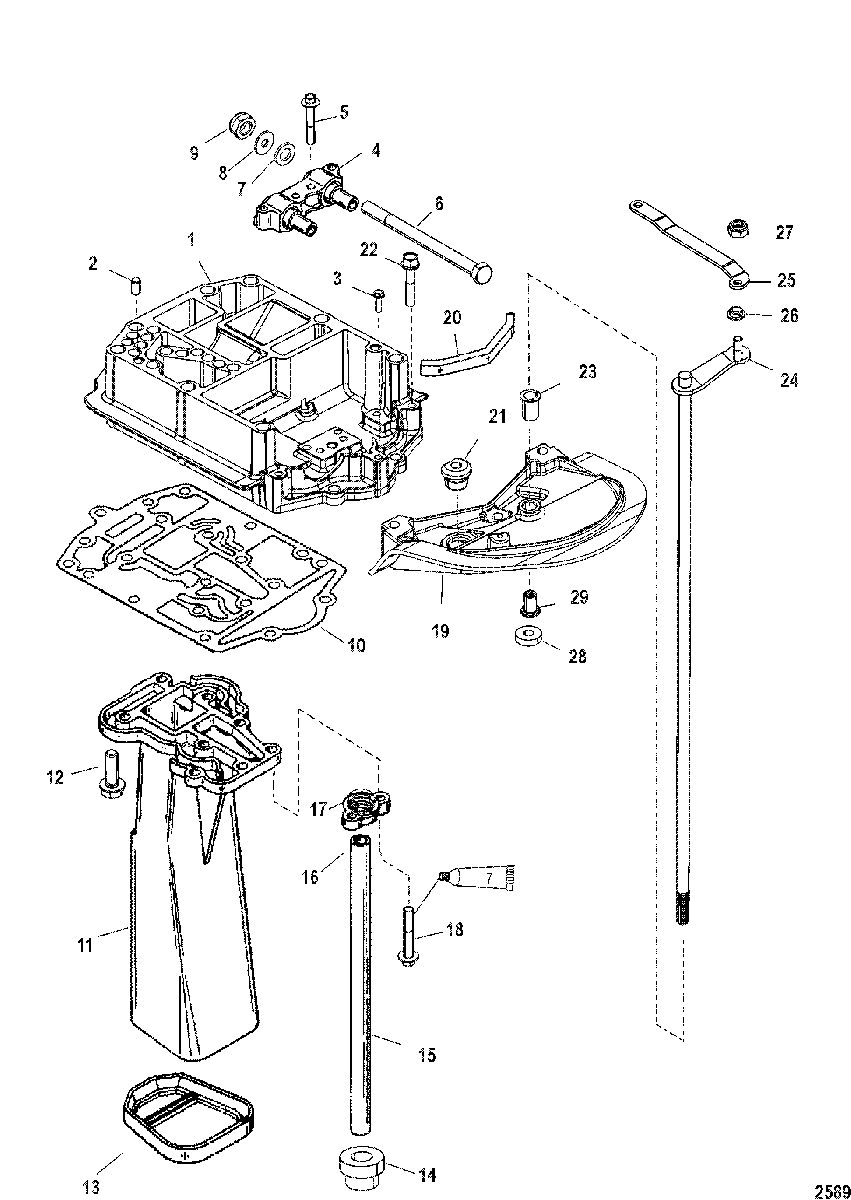

Exhaust Plate(SN USA-0T800999/ BEL-0P267999 and Below) для Mercury - 65 JET 0G760300 THRU 0T979999

  • №
    Артикул
    Название
  • 1
    42954A5 PLATE ASSEMBLY, Exhaust
    PLATE ASSEMBLY, Exhaust
  • 2
    17-23784 PIN, Dowel
    PIN, Dowel
  • 3
    10-40011151 SCREW, (M8 x 35) Stainless Steel
    SCREW, (M8 x 35) Stainless Steel
  • 3
    10-40011158 SCREW, (M8 x 70) Stainless Steel
    SCREW, (M8 x 70) Stainless Steel
  • 4
    881900T03 MOUNT
    (Non Oil Injection)
    MOUNT
    (Non Oil Injection)
  • 4
    881900T03 MOUNT
    (Oil Injection) (Jet 65)
    MOUNT
    (Oil Injection) (Jet 65)
  • 5
    10-4010750 SCREW, (M8 x 50)
    SCREW, (M8 x 50)
  • 6
    10-898487 BOLT, (M12 x 175)
    BOLT, (M12 x 175)
  • 7
    12-32834 WASHER, Neoprene
    WASHER, Neoprene
  • 8
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
  • 9
    11-896963 NUT, (M12)
    NUT, (M12)
  • 10
    27-430086 GASKET
    GASKET
  • 11
    87917216T TUBE, Exhaust
    TUBE, Exhaust
  • 12
    10-40011151 SCREW, (M8 x 35) Stainless Steel
    SCREW, (M8 x 35) Stainless Steel
  • 13
    8M0039075 SEAL
    SEAL
  • 14
    25-89417004 GROMMET
    GROMMET
  • 15
    32-8M0042791 TUBE, Water - Long (13.21 Inches)
    (13.25 Inches)
    TUBE, Water - Long (13.21 Inches)
    (13.25 Inches)
  • 15
    32-8M0042793 TUBE, Water (15.71 Inches) X Long
    (15.75 Inches)
    TUBE, Water (15.71 Inches) X Long
    (15.75 Inches)
  • 15
    32-8M0042792 TUBE, Water - X Long (18.21 Inches)
    (18.25 Inches)
    TUBE, Water - X Long (18.21 Inches)
    (18.25 Inches)
  • 16
    824661 CLAMP
    CLAMP
  • 17
    814080001 SEAL, Upper
    SEAL, Upper
  • 18
    10-4010750 SCREW, (M8 x 50)
    SCREW, (M8 x 50)
  • 19
    42953A5 BRACKET ASSEMBLY, Lower
    (Black)
    BRACKET ASSEMBLY, Lower
    (Black)
  • 20
    43405 SEAL
    SEAL
  • 21
    25-19564001 GROMMET
    (Manual Tilt Assist)(Closed End)
    GROMMET
    (Manual Tilt Assist)(Closed End)
  • 21
    25-19565002 GROMMET
    (Power Trim)(Split)
    GROMMET
    (Power Trim)(Split)
  • 22
    10-81742750 SCREW, (M8 x 50)
    SCREW, (M8 x 50)
  • 23
    23-48237 BUSHING
    BUSHING
  • 24
    79932A20 SHIFT SHAFT ASSEMBLY
    (Upper-Electric)
    SHIFT SHAFT ASSEMBLY
    (Upper-Electric)
  • 24
    79932A23 SHIFT SHAFT ASSEMBLY
    (Upper-Manual)
    SHIFT SHAFT ASSEMBLY
    (Upper-Manual)
  • 25
    42912A3 SHIFT LINK
    SHIFT LINK
  • 26
    23-48475 BUSHING
    BUSHING
  • 27
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 28
    23-813745 SPACER
    (Long)
    SPACER
    (Long)
  • 28
    23-11289 SPACER
    (LL)
    SPACER
    (LL)
  • 29
    43585 COUPLING
    COUPLING
  • -
    27-43004A99 GASKET SET, Powerhead
    GASKET SET, Powerhead
