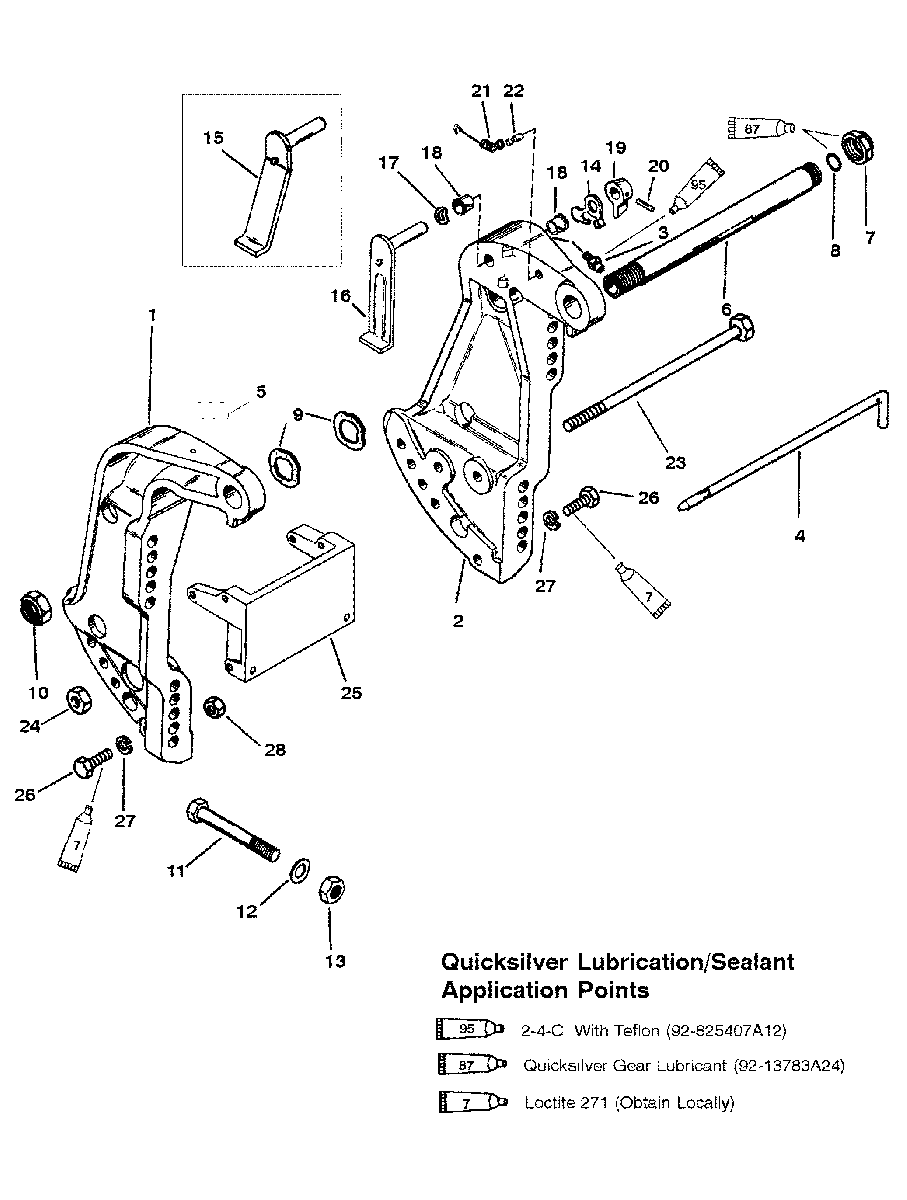

TRANSOM BRACKET (NON POWER TRIM & POWER TRIM) для Mercury - 65 JET 0D283222 THRU 0G760299
-
№АртикулНазвание
-
13401-8718F7 TRANSOM BRACKET
(STARBOARD) BLACKTRANSOM BRACKET
(STARBOARD) BLACK -
23400-8716A8 TRANSOM BRACKET
(PORT) BLACKTRANSOM BRACKET
(PORT) BLACK -
13401-8718F8 TRANSOM BRACKET
(STARBOARD) GRAYTRANSOM BRACKET
(STARBOARD) GRAY -
23400-8716A9 TRANSOM BRACKET
(PORT) GRAYTRANSOM BRACKET
(PORT) GRAY -
13401-8718F10 TRANSOM BRACKET
(STARBOARD) TRACKER GRAPHITE GRAYTRANSOM BRACKET
(STARBOARD) TRACKER GRAPHITE GRAY -
23400-8716A10 TRANSOM BRACKET
(PORT) TRACKER GRAPHITE GRAYTRANSOM BRACKET
(PORT) TRACKER GRAPHITE GRAY -
322-98727 GREASE FITTING
(PORT)GREASE FITTING
(PORT) -
417-8M0026068 TILT PIN ASSEMBLY
NON POWER TRIMTILT PIN ASSEMBLY
NON POWER TRIM -
537-830253 DECAL-TILT/LOCK
NON POWER TRIMDECAL-TILT/LOCK
NON POWER TRIM -
6826125A1 TILT TUBETILT TUBE
-
711-826135 NUTNUT
-
825-45711 O-RINGO-RING
-
913-88750 WAVE WASHERWAVE WASHER
-
1011-826164 NUTNUT
-
1110-677551 BOLT (4-1/2 IN.)BOLT (4-1/2 IN.)
-
1212-28421 WASHERWASHER
-
1311-91962 NUTNUT
-
14814207 STOPSTOP
-
1599629A3 TILT LOCK LEVER
(NON POWER TRIM)TILT LOCK LEVER
(NON POWER TRIM) -
168M0109798 TILT LOCK LEVER
(POWER TRIM)TILT LOCK LEVER
(POWER TRIM) -
1713-99611 WAVE WASHERWAVE WASHER
-
1823-65830 BUSHINGBUSHING
-
1999633 KNOBKNOB
-
2017-99615 GROOVE PINGROOVE PIN
-
2124-99622 SPRINGSPRING
-
2217-99604 GROOVE PINGROOVE PIN
-
2310-96930A1 BOLT ASSEMBLYBOLT ASSEMBLY
-
2411-23161 NUTNUT
-
258M0086406 ANCHOR BRACKET
(BLACK) POWER TRIMANCHOR BRACKET
(BLACK) POWER TRIM -
258M0086406 ANCHOR BRACKET
(GRAY) POWER TRIMANCHOR BRACKET
(GRAY) POWER TRIM -
258M0086406 ANCHOR BRACKET
(TRACKER-GRAPHITE GRAY) POWER TRIMANCHOR BRACKET
(TRACKER-GRAPHITE GRAY) POWER TRIM -
2610-4000377 SCREW
POWER TRIMSCREW
POWER TRIM -
2712-4002319 WASHER
POWER TRIMWASHER
POWER TRIM -
2811-40114 NUT
POWER TRIMNUT
POWER TRIM
