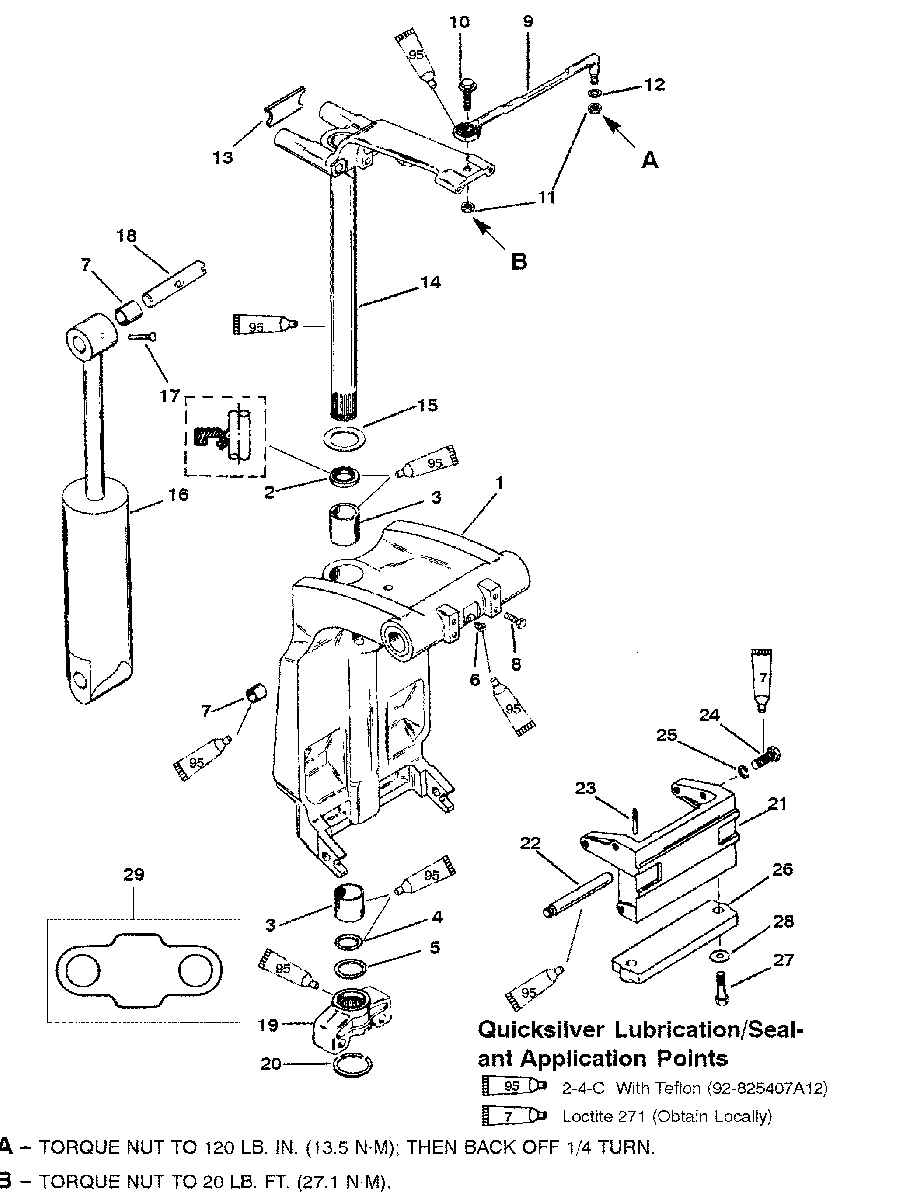

SWIVEL BRACKET AND STEERING ARM для Mercury - 65 JET 0D283222 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    1499-8M0102865 SWIVEL BRACKET
    (BLACK) NON-POWER TRIM
    SWIVEL BRACKET
    (BLACK) NON-POWER TRIM
  • 1
    1499-8M0102865 SWIVEL BRACKET
    (GRAY) NON-POWER TRIM
    SWIVEL BRACKET
    (GRAY) NON-POWER TRIM
  • 1
    1400-8M0107419 SWIVEL BRACKET
    (BLACK) MANUAL TILT ASSIST/POWER TRIM
    SWIVEL BRACKET
    (BLACK) MANUAL TILT ASSIST/POWER TRIM
  • 1
    3408-818904T2 SWIVEL BRACKET
    (GRAY) MANUAL TILT ASSIST/POWER TRIM
    SWIVEL BRACKET
    (GRAY) MANUAL TILT ASSIST/POWER TRIM
  • 1
    3408-818904T4 SWIVEL BRACKET
    (TRACKER-GRAPHITE GRAY) MANUAL TILT ASSIST/POWER TRIM
    SWIVEL BRACKET
    (TRACKER-GRAPHITE GRAY) MANUAL TILT ASSIST/POWER TRIM
  • 2
    26-87735 OIL SEAL (LOWER)
    OIL SEAL (LOWER)
  • 3
    23-818764 BUSHING
    BUSHING
  • 4
    25-33504 O-RING
    O-RING
  • 5
    23-816039 SPACER
    SPACER
  • 6
    22-74036 GREASE FITTING
    GREASE FITTING
  • 7
    23-821207 BUSHING
    BUSHING
  • 8
    10-64014 SCREW (1/4-28 X 1/2)
    SCREW (1/4-28 X 1/2)
  • 9
    92876A12 STEERING LINK ASSEMBLY
    STEERING LINK ASSEMBLY
  • 10
    10-849838 SCREW (3/8 X 24 X 1-1/8)
    SCREW (3/8 X 24 X 1-1/8)
  • 11
    11-8M0042636 NUT
    NUT
  • 12
    12-34931 WASHER
    WASHER
  • 13
    8M0000516 BUMPER-TOP YOKE
    (X-LONG/LL)
    BUMPER-TOP YOKE
    (X-LONG/LL)
  • 14
    99661A35 SWIVEL PIN/STEERING ARM
    (BLACK)
    SWIVEL PIN/STEERING ARM
    (BLACK)
  • 14
    99661A35 SWIVEL PIN/STEERING ARM
    (GRAY)
    SWIVEL PIN/STEERING ARM
    (GRAY)
  • 14
    99661A35 SWIVEL PIN/STEERING ARM
    (TRACKER-GRAPHITE GRAY)
    SWIVEL PIN/STEERING ARM
    (TRACKER-GRAPHITE GRAY)
  • 15
    12-816432 THRUST WASHER
    THRUST WASHER
  • 16
    55-99724T15 SHOCK
    (BLACK) NO STAMPING
    SHOCK
    (BLACK) NO STAMPING
  • 16
    55-99724T15 SHOCK
    (GRAY) NO STAMPING
    SHOCK
    (GRAY) NO STAMPING
  • 16
    55-99724T15 SHOCK
    (BLACK) STAMPED A12 OR A17
    SHOCK
    (BLACK) STAMPED A12 OR A17
  • 16
    55-99724T15 SHOCK
    (GRAY) STAMPED A12 OR A17
    SHOCK
    (GRAY) STAMPED A12 OR A17
  • 17
    17-821539 GROOVE PIN
    GROOVE PIN
  • 18
    99625002 SHAFT (UPPER)
    SHAFT (UPPER)
  • 19
    42961A06 BOTTOM YOKE
    (BLACK)
    BOTTOM YOKE
    (BLACK)
  • 19
    42961A06 BOTTOM YOKE
    (GRAY)
    BOTTOM YOKE
    (GRAY)
  • 19
    42961A5 BOTTOM YOKE
    (TRACKER-GRAPHITE GRAY)
    BOTTOM YOKE
    (TRACKER-GRAPHITE GRAY)
  • 20
    53-67684 RETAINING RING
    RETAINING RING
  • 21
    99653 BRACKET
    NON POWER TRIM
    BRACKET
    NON POWER TRIM
  • 22
    99619 SHAFT (LOWER)
    NON POWER TRIM
    SHAFT (LOWER)
    NON POWER TRIM
  • 23
    17-821539 GROOVE PIN
    NON POWER TRIM
    GROOVE PIN
    NON POWER TRIM
  • 24
    10-4000377 SCREW (M10 X 1.5 X 30)
    NON POWER TRIM
    SCREW (M10 X 1.5 X 30)
    NON POWER TRIM
  • 25
    12-4002319 WASHER
    NON POWER TRIM
    WASHER
    NON POWER TRIM
  • 25
    13-400256 LOCKWASHER
    (JET) NON POWER TRIM
    LOCKWASHER
    (JET) NON POWER TRIM
  • 26
    97-818298Q1 ANODE ASSEMBLY
    ANODE ASSEMBLY
  • 27
    10-4000330 SCREW (M6 X 1 X 25)
    SCREW (M6 X 1 X 25)
  • 28
    12-29245 WASHER
    WASHER
  • 29
    11288001 BUMPER-BOTTOM YOKE
    (X-LONG/LL)
    BUMPER-BOTTOM YOKE
    (X-LONG/LL)
