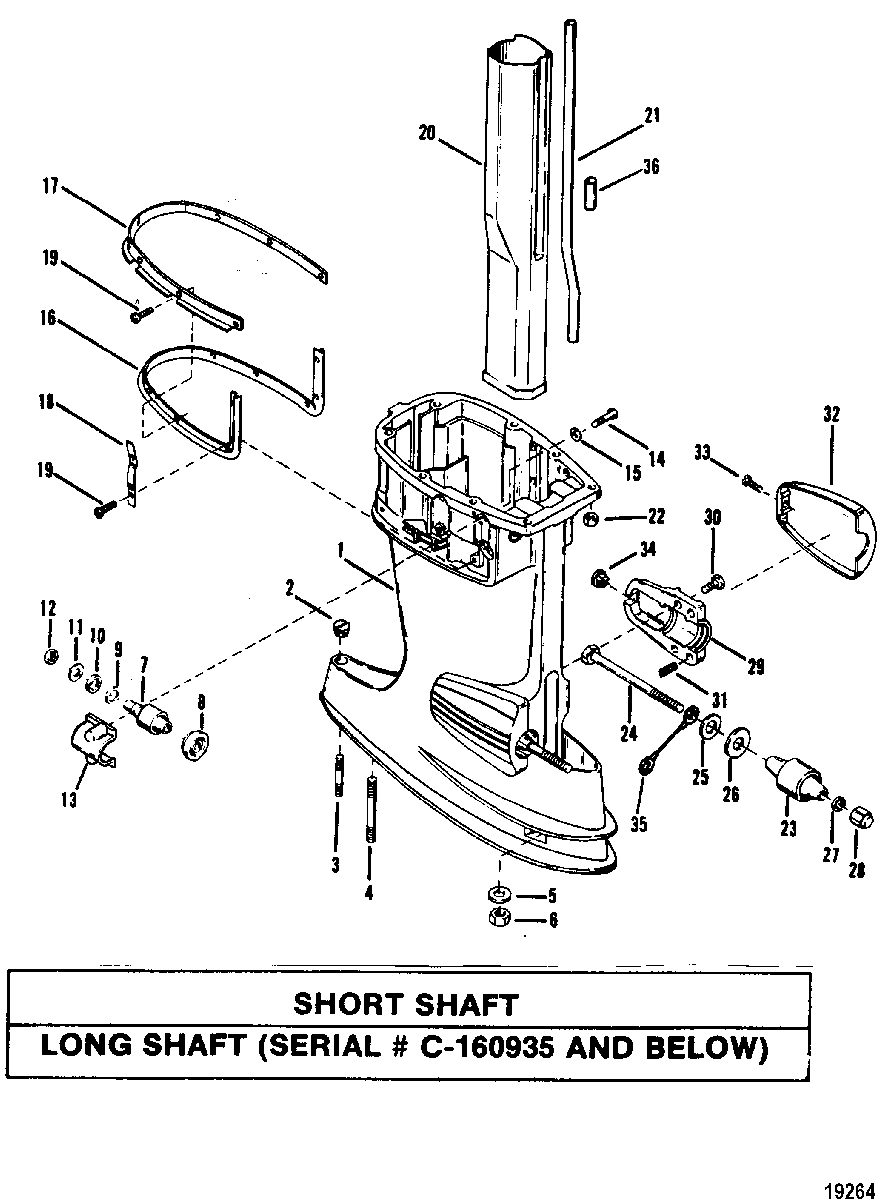

Driveshaft Housing(Short)(Long S/N-0C160935 and Below) для Mercury - 60 (3 CYL.) 9469200 THRU 9683054

  • №
    Артикул
    Название
  • 1
    1592-8188A8 HOUSING ASSEMBLY, Driveshaft (SHORT SHAFT)(BLACK)
    (NON POWER TRIM)
    HOUSING ASSEMBLY, Driveshaft (SHORT SHAFT)(BLACK)
    (NON POWER TRIM)
  • 1
    1593-7513A12 HOUSING ASSEMBLY, Driveshaft (LONG SHAFT)(BLACK)
    (NON POWER TRIM)
    HOUSING ASSEMBLY, Driveshaft (LONG SHAFT)(BLACK)
    (NON POWER TRIM)
  • 1
    1593-8189A10 HOUSING ASSEMBLY, Driveshaft (BLACK)
    (POWER TRIM)
    HOUSING ASSEMBLY, Driveshaft (BLACK)
    (POWER TRIM)
  • 1
    1593-8189A11 HOUSING ASSEMBLY, Driveshaft (GRAY)
    (POWER TRIM)
    HOUSING ASSEMBLY, Driveshaft (GRAY)
    (POWER TRIM)
  • 2
    19-64649 PLUG, PLASTIC - TRIM TAB SCREW HOLE
    PLUG, PLASTIC - TRIM TAB SCREW HOLE
  • 3
    16-8M0022145 STUD, (.375-16/.375-24 x 1.750), DRIVE SHAFT HOUSING
    STUD, (.375-16/.375-24 x 1.750), DRIVE SHAFT HOUSING
  • 4
    16-57935 STUD, DRIVE SHAFT HOUSING (3")
    STUD, DRIVE SHAFT HOUSING (3")
  • 5
    12-65791 WASHER, GEAR HOUSING STUDS (7/16")
    WASHER, GEAR HOUSING STUDS (7/16")
  • 6
    11-34933 NUT, (.437-20) Stainless Steel, GEAR HOUSING STUDS
    NUT, (.437-20) Stainless Steel, GEAR HOUSING STUDS
  • 7
    923373 MOUNT, RUBBER - UPPER
    MOUNT, RUBBER - UPPER
  • 8
    96401 SEAL, UPPER MOUNT
    SEAL, UPPER MOUNT
  • 9
    12-27727 WASHER, UPPER MOUNT BOLT (37/64 I.D.)
    WASHER, UPPER MOUNT BOLT (37/64 I.D.)
  • 10
    12-66966 WASHER, RUBBER - UPPER MOUNT BOLT
    WASHER, RUBBER - UPPER MOUNT BOLT
  • 11
    12-30514 WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 12
    11-34933 NUT, (.437-20) Stainless Steel, UPPER MOUNT BOLT
    NUT, (.437-20) Stainless Steel, UPPER MOUNT BOLT
  • 13
    87883 COVER, UPPER MOUNT
    COVER, UPPER MOUNT
  • 14
    10-76630 SCREW, (.250-20 x 1.00), UPPER ,MOUNT COVER
    SCREW, (.250-20 x 1.00), UPPER ,MOUNT COVER
  • 15
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, UPPER MOUNT COVER SCREW
    WASHER, (.281 x .500 x .060) Stainless Steel, UPPER MOUNT COVER SCREW
  • 16
    38157 SEAL, TRIM COVER TO DRIVE SHAFT HOUSING
    SEAL, TRIM COVER TO DRIVE SHAFT HOUSING
  • 17
    38158 STRIP, RETAINING - TRIM COVER SEAL (REAR)
    STRIP, RETAINING - TRIM COVER SEAL (REAR)
  • 18
    38154 STRIP, RETAINING - TRIM COVER SEAL (SIDE)
    STRIP, RETAINING - TRIM COVER SEAL (SIDE)
  • 19
    10-48408 SCREW, (#10-16 x .500), RETAINING STRIP
    SCREW, (#10-16 x .500), RETAINING STRIP
  • 20
    695431 TUBE, EXHAUST
    (SHORT SHAFT)
    TUBE, EXHAUST
    (SHORT SHAFT)
  • 20
    695441 TUBE, EXHAUST
    (LONG SHAFT)
    TUBE, EXHAUST
    (LONG SHAFT)
  • 21
    32-37727 TUBE, WATER INLET
    (SHORT SHAFT)
    TUBE, WATER INLET
    (SHORT SHAFT)
  • 21
    32-45679 TUBE, WATER INLET
    (LONG SHAFT)
    TUBE, WATER INLET
    (LONG SHAFT)
  • 22
    11-64809 NUT, POWERHEAD STUDS (5/16")
    NUT, POWERHEAD STUDS (5/16")
  • 23
    75304T1 MOUNT, RUBBER - LOWER
    MOUNT, RUBBER - LOWER
  • 24
    10-75284 SCREW, (.500-20 x 5.500), LOWER MOUNT SCREW
    (NON POWER TRIM)
    SCREW, (.500-20 x 5.500), LOWER MOUNT SCREW
    (NON POWER TRIM)
  • 24
    10-43426 SCREW, LOWER MOUNT SCREW
    (POWER TRIM)
    SCREW, LOWER MOUNT SCREW
    (POWER TRIM)
  • 25
    12-28051 WASHER, LOWER MOUNT SCREW (Use where Applicable)
    WASHER, LOWER MOUNT SCREW (Use where Applicable)
  • 26
    12-28053 WASHER, RUBBER - LOWER MOUNT SCREW (Use where Applicable)
    WASHER, RUBBER - LOWER MOUNT SCREW (Use where Applicable)
  • 27
    12-30119 WASHER, (.875 Inch Outside Diameter), LOWER MOUNT SCREW
    WASHER, (.875 Inch Outside Diameter), LOWER MOUNT SCREW
  • 28
    11-25096 NUT, LOWER MOUNT SCREW
    NUT, LOWER MOUNT SCREW
  • 29
    69592F1 CLAMP, LOWER MOUNT
    CLAMP, LOWER MOUNT
  • 30
    10-29256 SCREW, (.312-18 x .875), LOWER MOUNT CLAMP
    SCREW, (.312-18 x .875), LOWER MOUNT CLAMP
  • 31
    24-35522 SPRING, TENSION - LOWER MOUNT CLAMP
    SPRING, TENSION - LOWER MOUNT CLAMP
  • 32
    35474T COVER, LOWER MOUNT CLAMP
    (BLACK)
    COVER, LOWER MOUNT CLAMP
    (BLACK)
  • 32
    35474F2 COVER, Lower Mount Clamp, LOWER MOUNT CLAMP
    (GRAY)
    COVER, Lower Mount Clamp, LOWER MOUNT CLAMP
    (GRAY)
  • 33
    10-87884 SCREW, (#12-14 x .920), COVER TO LOWER MOUNT CLAMP
    SCREW, (#12-14 x .920), COVER TO LOWER MOUNT CLAMP
  • 34
    11-35521 NUT, LOWER MOUNT CLAMP COVER
    NUT, LOWER MOUNT CLAMP COVER
  • 35
    88238A10 CABLE ASSEMBLY, Ground, GROUND
    CABLE ASSEMBLY, Ground, GROUND
  • 36
    23-23651 SLEEVE, (1.625), WATER INLET TUBE
    SLEEVE, (1.625), WATER INLET TUBE
