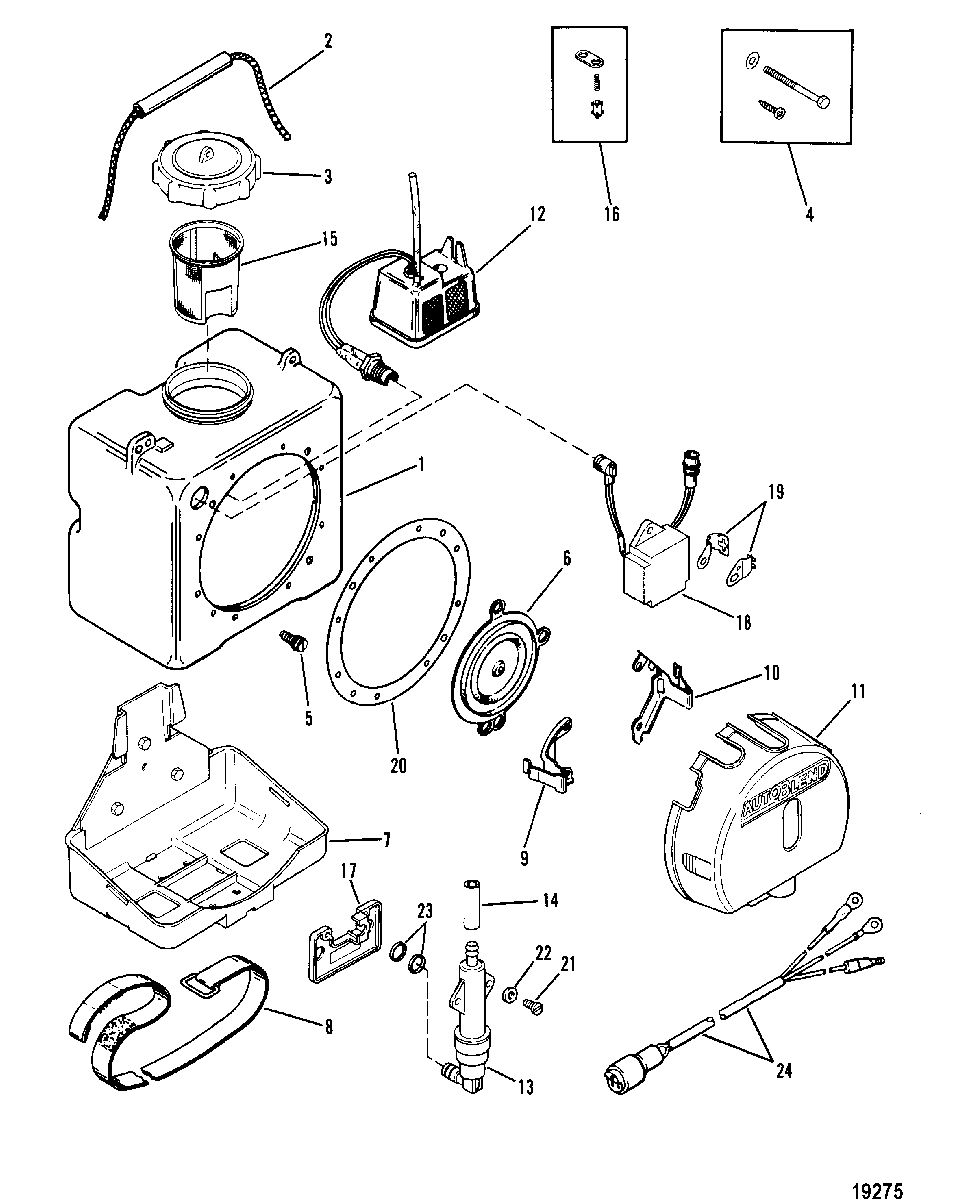

Auto-Blend для Mercury - 60 (3 CYL.) 9469200 THRU 9683054

  • №
    Артикул
    Название
  • -
    130194 AUTO BLEND ASSEMBLY
    AUTO BLEND ASSEMBLY
  • 1
    16612 TANK KIT, Oil
    TANK KIT, Oil
  • 2
    13996 HANDLE KIT
    HANDLE KIT
  • 3
    36-16619 CAP, OIL TANK
    CAP, OIL TANK
  • 4
    16614 HARDWARE KIT
    HARDWARE KIT
  • 5
    19-13979 PLUG KIT, Drain
    PLUG KIT, Drain
  • 6
    16611 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 7
    16620 BRACKET KIT, Mounting
    BRACKET KIT, Mounting
  • 8
    13993 BAND
    BAND
  • 9
    13983 BRACKET (LEFT)
    BRACKET (LEFT)
  • 10
    13984 BRACKET (RIGHT)
    BRACKET (RIGHT)
  • 11
    16613 COVER
    COVER
  • 12
    35-13985 FILTER/SENSOR KIT, Oil
    FILTER/SENSOR KIT, Oil
  • 13
    35-18576 FILTER KIT, Fuel
    FILTER KIT, Fuel
  • 14
    32-13992 VINYL TUBE
    VINYL TUBE
  • 15
    16618 STRAINER, Oil
    STRAINER, Oil
  • 16
    21-16615 CHECK VALVE KIT
    CHECK VALVE KIT
  • 17
    16621 PLATE
    PLATE
  • 18
    19265 MODULE KIT
    MODULE KIT
  • 19
    16623 BRACKET KIT
    BRACKET KIT
  • 20
    27-16616 GASKET KIT
    GASKET KIT
  • 21
    10-18679 SCREW, FUEL FILTER
    SCREW, FUEL FILTER
  • 22
    12-18680 WASHER, FILTER SCREW
    WASHER, FILTER SCREW
  • 23
    25-18752 'O'RING
    'O'RING
  • 24
    84-14585A1 HARNESS ASSEMBLY, AUTO-BLEND
    HARNESS ASSEMBLY, AUTO-BLEND
