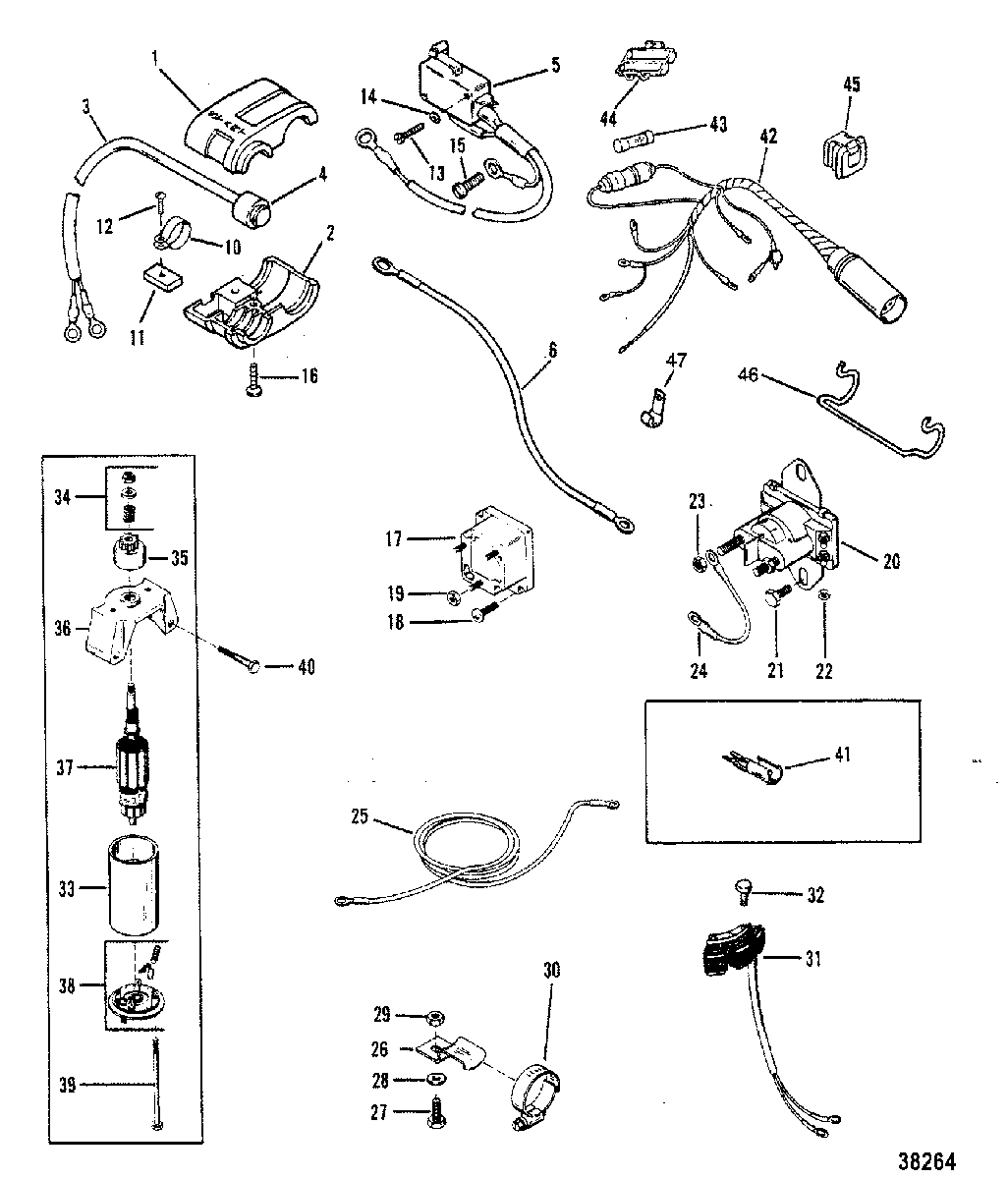

ELECTRIC COMPONENTS для Mercury - 6 9461526 THRU 9792199
-
№АртикулНазвание
-
195815 COVER (TOP)COVER (TOP)
-
295828 COVER (BOTTOM)COVER (BOTTOM)
-
387-95810A1 SWITCH ASSEMBLY, StartSWITCH ASSEMBLY, Start
-
455741001 BOOTBOOT
-
587-88890A2 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
684-79139A20 CABLE ASSEMBLY (RED)CABLE ASSEMBLY (RED)
-
1095814 STRAPSTRAP
-
1195813 FASTENERFASTENER
-
1210-40019108 SCREW, (M5 x 20)SCREW, (M5 x 20)
-
1310-4005727 SCREWSCREW
-
1412-45771 WASHERWASHER
-
1510-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
1610-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
178M0058226 RECTIFIERRECTIFIER
-
1810-48409 SCREW, (#10-16 x .625) Stainless SteelSCREW, (#10-16 x .625) Stainless Steel
-
1911-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
2089-96054T SOLENOID ASSEMBLY, StarterSOLENOID ASSEMBLY, Starter
-
2110-4000327 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
2211-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
2311-64015 NUT, (.250-20)NUT, (.250-20)
-
2484-88809A5 WIRE ASSEMBLY (YELLOW)WIRE ASSEMBLY (YELLOW)
-
2584-88439A27 CABLE ASSEMBLY, Battery (RED)CABLE ASSEMBLY, Battery (RED)
-
2584-88439A28 CABLE ASSEMBLY, Battery (BLACK)CABLE ASSEMBLY, Battery (BLACK)
-
2692439 BRACKET (OLD DESIGN)BRACKET (OLD DESIGN)
-
2710-4000327 SCREW, (M6 x 14) (OLD DESIGN)SCREW, (M6 x 14) (OLD DESIGN)
-
2812-35044 WASHER, (.281 x .625 x .065) Stainless Steel (OLD DESIGN)WASHER, (.281 x .625 x .065) Stainless Steel (OLD DESIGN)
-
2911-400212 NUT, (M6) Stainless Steel (OLD DESIGN)NUT, (M6) Stainless Steel (OLD DESIGN)
-
3054-815504310 CLAMP, Worm Gear (OLD DESIGN)CLAMP, Worm Gear (OLD DESIGN)
-
3186704A10 STATOR ASSEMBLYSTATOR ASSEMBLY
-
3210-4000123 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
3350-8M0033984 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
3496561 DRIVE KITDRIVE KIT
-
3596562 DRIVEDRIVE
-
3696563T END CAPEND CAP
-
3796565 ARMATUREARMATURE
-
3896564T END CAPEND CAP
-
3910-96566 THRU BOLTTHRU BOLT
-
4010-421251 SCREW, (M8 x 55)SCREW, (M8 x 55)
-
41424291 RETAINERRETAINER
-
4284-12334A2 HARNESS ASSEMBLY, Engine Wiring
(REMOTE CONTROL MODELS)HARNESS ASSEMBLY, Engine Wiring
(REMOTE CONTROL MODELS) -
4388-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
44134731 HOLDER, Fuse (OLD DESIGN)HOLDER, Fuse (OLD DESIGN)
-
4512152 RETAINERRETAINER
-
4692753 RETAINERRETAINER
-
4754-55098 J CLIPJ CLIP
