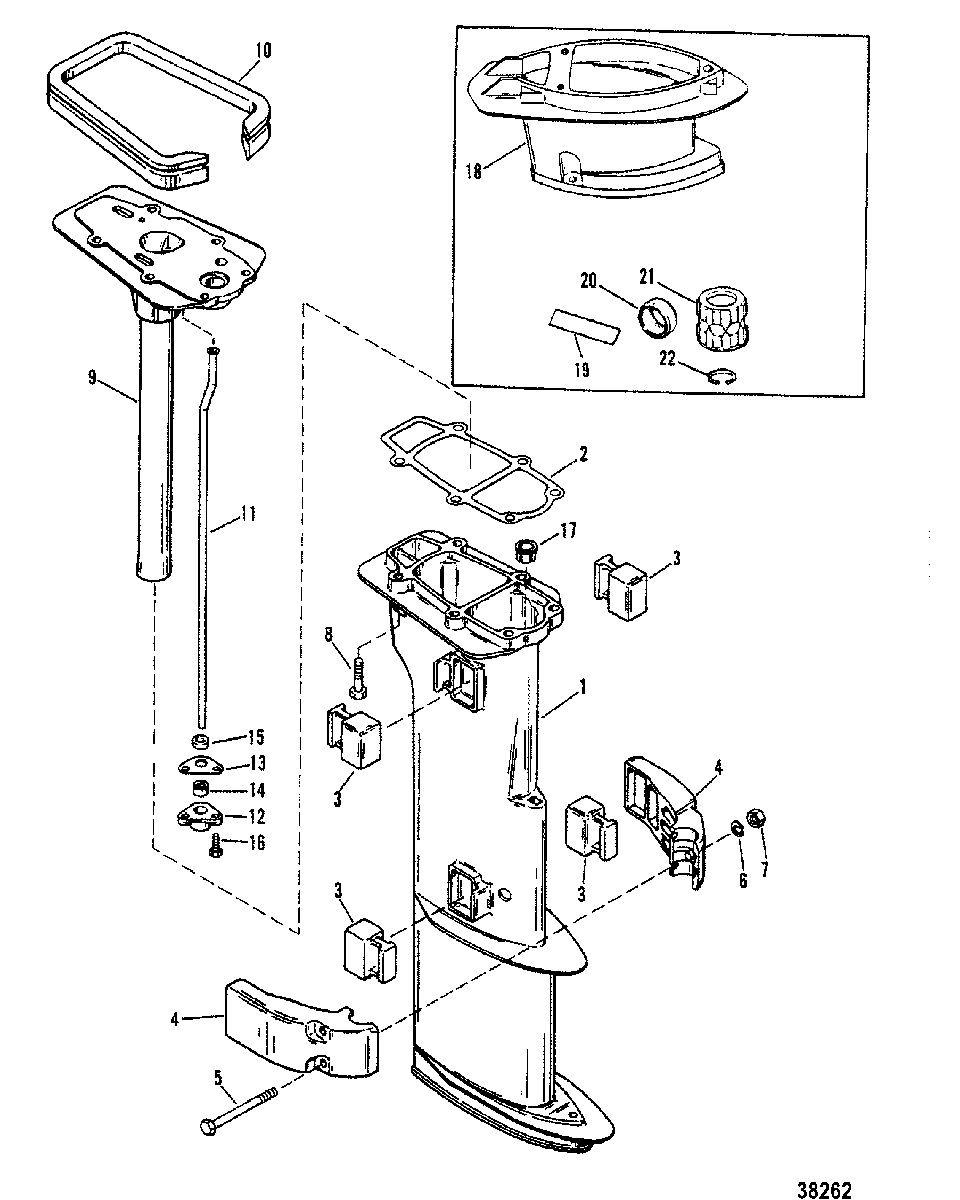

DRIVESHAFT HOUSING для Mercury - 6 9461526 THRU 9792199
-
№АртикулНазвание
-
11596-822154A1 HOUSING ASSEMBLY (SHORT) (BLACK)HOUSING ASSEMBLY (SHORT) (BLACK)
-
11597-822155A1 HOUSING ASSEMBLY (LONG) (BLACK)HOUSING ASSEMBLY (LONG) (BLACK)
-
11596-822154A2 HOUSING ASSEMBLY (SHORT) (GRAY)HOUSING ASSEMBLY (SHORT) (GRAY)
-
11597-822155A2 HOUSING ASSEMBLY (LONG) (GRAY)HOUSING ASSEMBLY (LONG) (GRAY)
-
227-195992 GASKET, DRIVESHAFT HOUSINGGASKET, DRIVESHAFT HOUSING
-
38M0039074 MOUNTMOUNT
-
4N.L.A. NO LONGER AVAILABLE, COVER-MOUNT (SEE NOTE)NO LONGER AVAILABLE, COVER-MOUNT (SEE NOTE)
-
442374F6 COVER, Mount (BLACK)
USE W/2 HOLE SWIVEL TUBECOVER, Mount (BLACK)
USE W/2 HOLE SWIVEL TUBE -
442374F6 COVER, MOUNT (GRAY)
USE W/2 HOLE SWIVEL TUBECOVER, MOUNT (GRAY)
USE W/2 HOLE SWIVEL TUBE -
510-4009238 SCREW, (M6 x 80), MOUNT COVERSCREW, (M6 x 80), MOUNT COVER
-
613-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
711-400212 NUT, (M6) Stainless Steel, COVER SCREWNUT, (M6) Stainless Steel, COVER SCREW
-
810-40011131 SCREW, (M6 x 35) Stainless Steel, DRIVESHAFT HOUSING TO PLATESCREW, (M6 x 35) Stainless Steel, DRIVESHAFT HOUSING TO PLATE
-
9413448 ADAPTOR PLATE (NO TUBE) (6/8)ADAPTOR PLATE (NO TUBE) (6/8)
-
941344A4 ADAPTOR PLATE ASSEMBLY (1"I.D. TUBE)
(9.9/210 CC SAILPOWER)ADAPTOR PLATE ASSEMBLY (1"I.D. TUBE)
(9.9/210 CC SAILPOWER) -
941344A3 ADAPTOR PLATE ASSEMBLY (1-1/8"I.D. TUBE) (15)ADAPTOR PLATE ASSEMBLY (1-1/8"I.D. TUBE) (15)
-
1026-11287001 SEAL, Adapter PlateSEAL, Adapter Plate
-
1132-42123 TUBE, Water (SHORT)TUBE, Water (SHORT)
-
1132-42122 TUBE, Water (LONG)TUBE, Water (LONG)
-
1132-421231 TUBE, Water (X-LONG)TUBE, Water (X-LONG)
-
1242371 HOLDER, WATER TUBEHOLDER, WATER TUBE
-
1327-192012 GASKET, WATER TUBE HOUSINGGASKET, WATER TUBE HOUSING
-
1426-42380001 SEAL, WATER TUBESEAL, WATER TUBE
-
1523-42465 SPACER, WATER TUBESPACER, WATER TUBE
-
1610-40011107 SCREW, (M5 x 16) Stainless Steel, HOUSING TO ADAPTOR PLATESCREW, (M5 x 16) Stainless Steel, HOUSING TO ADAPTOR PLATE
-
17445551 BLOCK, Bearing (LONG)BLOCK, Bearing (LONG)
-
18124262 HOUSING, Drive Shaft Extension (X-LONG)HOUSING, Drive Shaft Extension (X-LONG)
-
1923-123691 BUSHING, X-LONGBUSHING, X-LONG
-
20123702 HOUSING, BEARING (X-LONG)HOUSING, BEARING (X-LONG)
-
2114107001 RETAINER, BEARING (X-LONG)RETAINER, BEARING (X-LONG)
-
2253-14094 RING, Snap, X-LONGRING, Snap, X-LONG
-
-42213A14 SWIVEL TUBE REPLACEMENT, COMPLETE (BLACK)
INCLUDES TWO HOLE SWIVEL PIN AND TWO MOUNT COVERSSWIVEL TUBE REPLACEMENT, COMPLETE (BLACK)
INCLUDES TWO HOLE SWIVEL PIN AND TWO MOUNT COVERS -
-42213A14 SWIVEL TUBE REPLACEMENT, COMPLETE (GRAY)
INCLUDES TWO HOLE SWIVEL PIN AND TWO MOUNT COVERSSWIVEL TUBE REPLACEMENT, COMPLETE (GRAY)
INCLUDES TWO HOLE SWIVEL PIN AND TWO MOUNT COVERS
