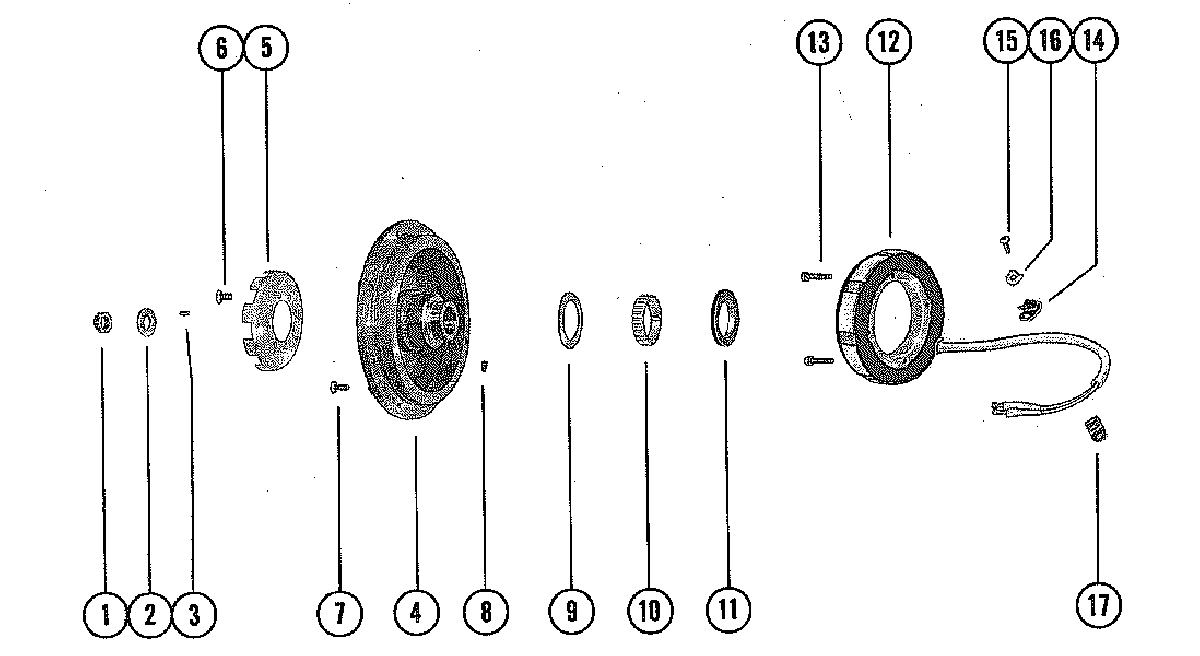

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 500 8029515 THRU 8030089

  • №
    Артикул
    Название
  • 1
    11-22339 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 2
    12-33001 WAHSER, FLYWHEEL NUT
    WAHSER, FLYWHEEL NUT
  • 3
    28-20094 KEYWHEEL DRIVE
    KEYWHEEL DRIVE
  • 4
    223-2402A13 FLYWHEEL ASSEMBLY (MANUAL)
    FLYWHEEL ASSEMBLY (MANUAL)
  • 4
    223-2403A18 FLYWHEEL ASSEMBLY (ELECTRIC)
    FLYWHEEL ASSEMBLY (ELECTRIC)
  • 5
    50-88755 RATCHET, FLYWHEEL (MANUAL)
    RATCHET, FLYWHEEL (MANUAL)
  • 6
    10-69088 SCREW, PLATE AND RATCHET (5/16")
    SCREW, PLATE AND RATCHET (5/16")
  • 7
    10-32417 SCREW, FLEX PLATE TO FLYWHEEL (5/8")
    SCREW, FLEX PLATE TO FLYWHEEL (5/8")
  • 8
    17-26618 PIN, DOWEL - PULLEY TO FLYWHEEL
    PIN, DOWEL - PULLEY TO FLYWHEEL
  • 9
    29788 FLANGE, FLYWHEEL PULLEY
    FLANGE, FLYWHEEL PULLEY
  • 10
    30306 PULLEY, FLYWHEEL
    PULLEY, FLYWHEEL
  • 11
    29787 HUB, FLANGE - FLYWHEEL PULLEY
    HUB, FLANGE - FLYWHEEL PULLEY
  • 12
    398-2996 STATOR, ALTERNATOR - FLYWHEEL ELECTRIC
    STATOR, ALTERNATOR - FLYWHEEL ELECTRIC
  • 13
    10-57021 SCERW, STATOR TO UPPER END CAP (7/8") ELECTRIC
    SCERW, STATOR TO UPPER END CAP (7/8") ELECTRIC
  • 14
    54-26550 CLAMP, STATOR LEAD TO CRANKCASE ELCTRIC
    CLAMP, STATOR LEAD TO CRANKCASE ELCTRIC
  • 15
    10-35519 SCREW, STATOR LEAD CLAMP FASTENING (1/2") ELECTRIC
    SCREW, STATOR LEAD CLAMP FASTENING (1/2") ELECTRIC
  • 16
    8M0084613 "D" WASHER, STATOR LEAD CLAMP SCREW ELECTRIC
    "D" WASHER, STATOR LEAD CLAMP SCREW ELECTRIC
  • 17
    54-46379 CLIP, STATOR LEAD TO CRANKCASE ELECTRIC
    CLIP, STATOR LEAD TO CRANKCASE ELECTRIC
