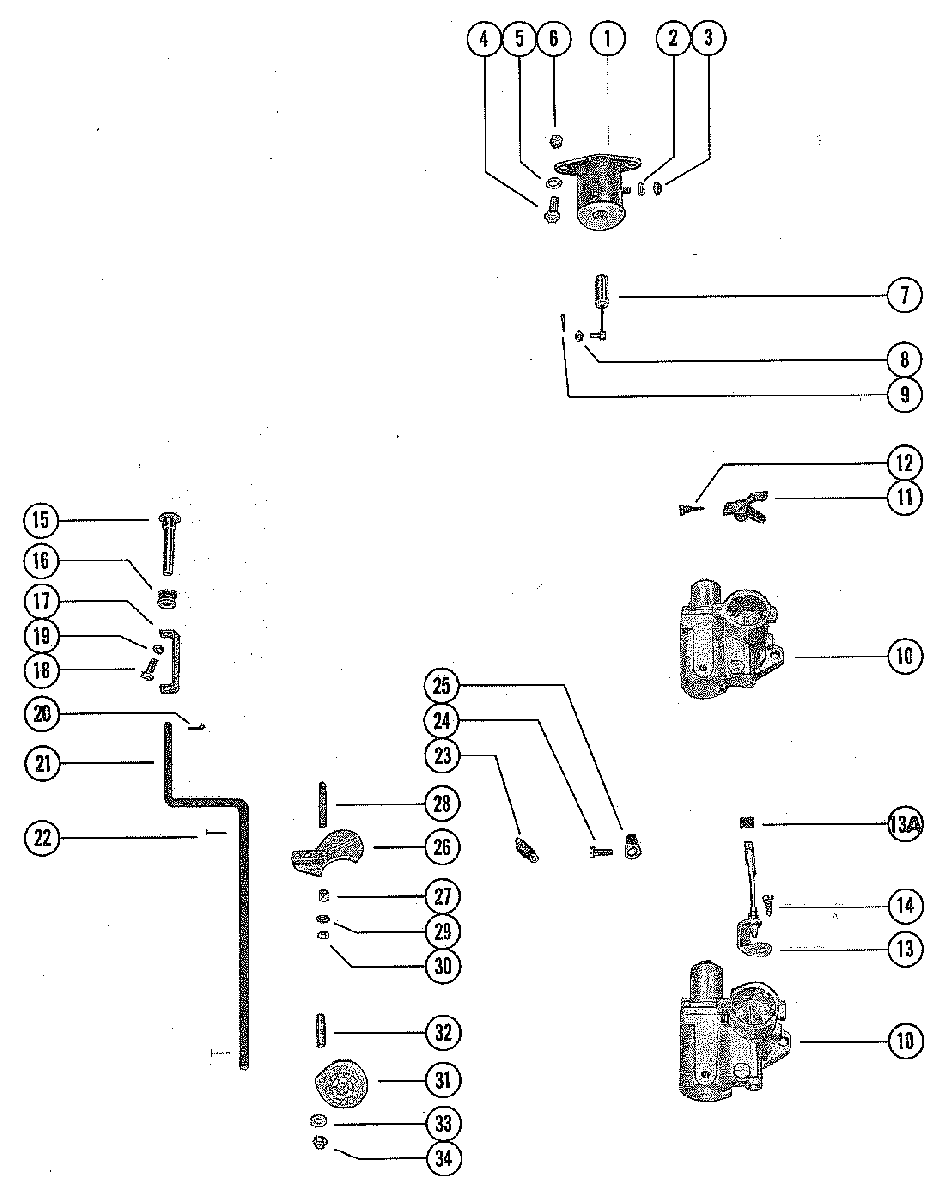

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 500 8029515 THRU 8030089

  • №
    Артикул
    Название
  • 1
    89-889274 CHOKE SOLENOID-ELECTRIC
    CHOKE SOLENOID-ELECTRIC
  • 2
    13-26996 LOCKWASHER, CHOKE SOLENOID TERMINAL ELECTRIC
    LOCKWASHER, CHOKE SOLENOID TERMINAL ELECTRIC
  • 3
    11-68219 NUT, CHOKE SOLENOID TERMINAL ELECTRIC
    NUT, CHOKE SOLENOID TERMINAL ELECTRIC
  • 4
    10-26066 SCREW, CHOKE SOLENOID TO FRONT BRACKET ELECTRIC
    SCREW, CHOKE SOLENOID TO FRONT BRACKET ELECTRIC
  • 5
    13-26993 LOCKWASHER, CHOKE SOLENOID SCREW ELECTRIC
    LOCKWASHER, CHOKE SOLENOID SCREW ELECTRIC
  • 6
    11-22053 NUT, CHOKE SOLENOID SCREW ELECTRIC
    NUT, CHOKE SOLENOID SCREW ELECTRIC
  • 7
    54283A2 PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID ELECTRIC
    PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID ELECTRIC
  • 8
    12-30164 WASHER, PLUNGER AND LINK ELECTRIC
    WASHER, PLUNGER AND LINK ELECTRIC
  • 9
    18-26953 COTTER PIN, LINK TO UPPER CHOKE SHUTTER ELECTRIC
    COTTER PIN, LINK TO UPPER CHOKE SHUTTER ELECTRIC
  • 10
    1333-5818 CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 4141000 THRU 4280269
    AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607
    CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 4141000 THRU 4280269
    AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607
  • 10
    1333-5921 CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 4280270 AND UP
    AUSTRALIA NONE BUILT
    BELGIUM 9100589 AND UP
    CANADA 7060608 AND UP
    CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 4280270 AND UP
    AUSTRALIA NONE BUILT
    BELGIUM 9100589 AND UP
    CANADA 7060608 AND UP
  • 11
    74371 CLUSTER, THROTTLE LEVER (UPPER CARB.)
    CLUSTER, THROTTLE LEVER (UPPER CARB.)
  • 12
    1395-6027 SCREW, CLUSTER TO THROTTLE LEVER
    SCREW, CLUSTER TO THROTTLE LEVER
  • 13
    53719A2 PICK-UP BRACKET ASSEMBLY
    PICK-UP BRACKET ASSEMBLY
  • 13A
    28-89694 INSET COUPLING, THROTTLE SHAFT
    INSET COUPLING, THROTTLE SHAFT
  • 14
    10-53651 SCREW, PICK-UP BRACKET (3/4")
    SCREW, PICK-UP BRACKET (3/4")
  • 15
    90242A1 KNOB, CHOKE ROD
    KNOB, CHOKE ROD
  • 16
    25-20116 GROMMET, CHOKE KNOB
    GROMMET, CHOKE KNOB
  • 17
    22462 "U" LINK, CHOKE ROD TO CHOKE KNOB (MANUAL)
    "U" LINK, CHOKE ROD TO CHOKE KNOB (MANUAL)
  • 17
    46303 "U"LINK, CHOKE ROD TO CHOKE KNOB (ELECTRIC)
    "U"LINK, CHOKE ROD TO CHOKE KNOB (ELECTRIC)
  • 18
    10-69022 SCREW, "U" LINK TO CHOKE KNOB
    SCREW, "U" LINK TO CHOKE KNOB
  • 19
    13-26996 LOCKWASHER, "U" LINK SCREW
    LOCKWASHER, "U" LINK SCREW
  • 20
    18-26811 COTTER PIN, "U" LINK TO CHOKE ROD
    COTTER PIN, "U" LINK TO CHOKE ROD
  • 21
    47958 ROD, CHOKE(MANUAL)
    ROD, CHOKE(MANUAL)
  • 21
    46304 ROD, CHOKE(ELECTRIC)
    ROD, CHOKE(ELECTRIC)
  • 22
    17-25391 RIVET, CHOKE SHUTTER TO CHOKE ROD
    RIVET, CHOKE SHUTTER TO CHOKE ROD
  • 23
    24-28965 SPRING, TENSION - CHOKE ROD TO CARBURETOR
    SPRING, TENSION - CHOKE ROD TO CARBURETOR
  • 24
    10-28713 SCREW, TENSION SPRING TO CARBURETOR
    SCREW, TENSION SPRING TO CARBURETOR
  • 25
    27711 RETAINER, SPRING
    RETAINER, SPRING
  • 26
    38604 SHUTTER, CHOKE - CARBURETOR
    SHUTTER, CHOKE - CARBURETOR
  • 27
    23-30438 BUSHING, NYLON - UPPER CHOKE SHUTTER(ELECTRIC)
    BUSHING, NYLON - UPPER CHOKE SHUTTER(ELECTRIC)
  • 28
    16-69036 STUD, CARBURETOR - CHOKE SHUTTER PIVOT (1 3/8")
    STUD, CARBURETOR - CHOKE SHUTTER PIVOT (1 3/8")
  • 29
    12-30164 WASHER, CHOKE SHUTTER CARBURETOR STUD
    WASHER, CHOKE SHUTTER CARBURETOR STUD
  • 30
    11-20110 NUT, CHOKE SHUTTER TO CARBURETOR STUD
    NUT, CHOKE SHUTTER TO CARBURETOR STUD
  • 31
    35-56197 SCREEN, FILTER - CARBURETOR
    SCREEN, FILTER - CARBURETOR
  • 32
    16-69037 STUD, FILTER SCREEN TO CARBURETOR (1 1/8")
    STUD, FILTER SCREEN TO CARBURETOR (1 1/8")
  • 33
    12-30164 WASHER, FILTER SCREEN STUD
    WASHER, FILTER SCREEN STUD
  • 34
    11-20110 NUT, FILTER SCREEN STUD
    NUT, FILTER SCREEN STUD
