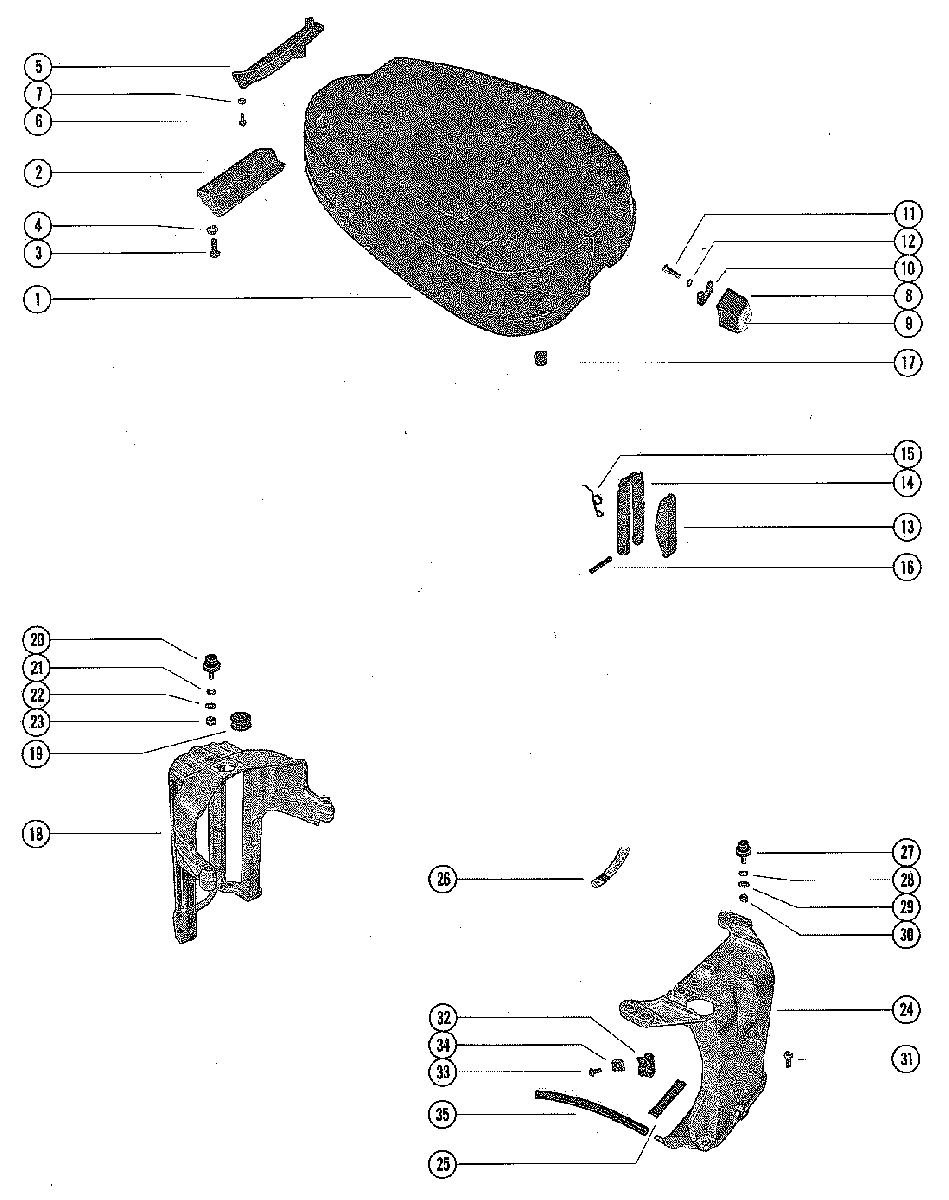

TOP COWL ASSEMBLY для Mercury - 500 2863739 THRU 8029514

  • Артикул
    Название
  • 1
    2117-4067A1 TOP COWL (MANUAL)
    TOP COWL (MANUAL)
    0
  • 1
    2117-4068A1 TOP COWL (ELECTRIC)
    TOP COWL (ELECTRIC)
    0
  • 2
    55455 HOOK, TOP COWL LATCH - REAR
    HOOK, TOP COWL LATCH - REAR
    0
  • 3
    10-22956 SCREW, REAR HOOK TO TOP COWL (7/8")
    SCREW, REAR HOOK TO TOP COWL (7/8")
    0
  • 4
    13-26992 LOCKWASHER, REAR HOOK MOUNTING SCREW
    LOCKWASHER, REAR HOOK MOUNTING SCREW
    70
  • 5
    37690 SHIELD, REAR - TOP COWL
    SHIELD, REAR - TOP COWL
    0
  • 6
    10-37370 SCREW, REAR SHIELD TO TOP COWL
    SCREW, REAR SHIELD TO TOP COWL
    100
  • 7
    13-37371 LOCKWASHER, REAR SHIELD SCREW
    LOCKWASHER, REAR SHIELD SCREW
    0
  • 8
    55459A5 RETAINER ASSEMBLY, TOP COWL
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3015353
    CANADA 2742142 THRU 3015453
    RETAINER ASSEMBLY, TOP COWL
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3015353
    CANADA 2742142 THRU 3015453
    0
  • 9
    37-61018A1 EMBLEM, TOP COWL RETAINER
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3015353
    CANADA 2742142 THRU 3015453
    EMBLEM, TOP COWL RETAINER
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3015353
    CANADA 2742142 THRU 3015453
    0
  • 10
    35496 PAD, BUMPER - TOP COWL RETAINER
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3015353
    CANADA 2742142 THRU 3015453
    PAD, BUMPER - TOP COWL RETAINER
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3015353
    CANADA 2742142 THRU 3015453
    0
  • 8
    55459A5 RETAINER ASSEMBLY, TOP COWL
    UNITED STATES 3008819 THRU 3235062
    AUSTRALIA 3015354 THRU 3244337
    CANADA 3015454 THRU 3243512
    RETAINER ASSEMBLY, TOP COWL
    UNITED STATES 3008819 THRU 3235062
    AUSTRALIA 3015354 THRU 3244337
    CANADA 3015454 THRU 3243512
    0
  • 10
    35496 PAD, BUMPER - TOP COWL RETAINER
    UNITED STATES 3008819 THRU 3235062
    AUSTRALIA 3015354 THRU 3244337
    CANADA 3015454 THRU 3243512
    PAD, BUMPER - TOP COWL RETAINER
    UNITED STATES 3008819 THRU 3235062
    AUSTRALIA 3015354 THRU 3244337
    CANADA 3015454 THRU 3243512
    0
  • 8
    55459A5 RETAINER ASSEMBLY, TOP COWL
    UNITED STATES 3235063 AND UP
    AUSTRALIA 3244338 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3243513 AND UP
    RETAINER ASSEMBLY, TOP COWL
    UNITED STATES 3235063 AND UP
    AUSTRALIA 3244338 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3243513 AND UP
    0
  • 10
    35496 PAD, BUMPER - TOP COWL RETAINER
    UNITED STATES 3235063 AND UP
    AUSTRALIA 3244338 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3243513 AND UP
    PAD, BUMPER - TOP COWL RETAINER
    UNITED STATES 3235063 AND UP
    AUSTRALIA 3244338 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3243513 AND UP
    0
  • 11
    10-35386 SCREW, RETAINER TO TOP COWL (1")
    SCREW, RETAINER TO TOP COWL (1")
    90
  • 12
    13-39107 LOCKWASHER, RETAINER TO TOP COWL SCREW
    LOCKWASHER, RETAINER TO TOP COWL SCREW
    120
  • 13
    94918F1 LEVER, COWL HATCH HINGE
    LEVER, COWL HATCH HINGE
    2 780
  • 14
    52739 HINGE, COWL LATCH - TOP COWL
    HINGE, COWL LATCH - TOP COWL
    2 110
  • 15
    24-53019 SPRING, COWL LATCH HINGE
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    SPRING, COWL LATCH HINGE
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    0
  • 16
    17-58998 PIN, COWL LATCH LEVER TO HINGE
    PIN, COWL LATCH LEVER TO HINGE
    350
  • 17
    25-20116 GROMMET, CHOKE KNOB
    GROMMET, CHOKE KNOB
    280
  • 18
    720201 BRACKET, REAR COWL SUPPORT
    BRACKET, REAR COWL SUPPORT
    0
  • 19
    25-52723 GROMMET, LIMIT STOP - REAR COWL SUPPORT BRACKET
    GROMMET, LIMIT STOP - REAR COWL SUPPORT BRACKET
    290
  • 20
    60577 MOUNT, RUBBER - REAR SUPPORT BRACKET
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    MOUNT, RUBBER - REAR SUPPORT BRACKET
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    0
  • 20
    60577 MOUNT, RUBBER - REAR SUPPORT BRACKET
    UNITED STATES 3235063 AND UP
    AUSTRALIA 3244338 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3243513 AND UP
    MOUNT, RUBBER - REAR SUPPORT BRACKET
    UNITED STATES 3235063 AND UP
    AUSTRALIA 3244338 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3243513 AND UP
    0
  • 21
    13-26992 LOCKWASHER, REAR SUPPORT BRACKET RUBBER MOUNT
    LOCKWASHER, REAR SUPPORT BRACKET RUBBER MOUNT
    70
  • 22
    12-69056 WASHER, REAR SUPPORT BRACKET RUBBER MOUNT
    WASHER, REAR SUPPORT BRACKET RUBBER MOUNT
    120
  • 23
    11-20088 NUT, REAR SUPPORT BRACKET RUBBER MOUNT
    NUT, REAR SUPPORT BRACKET RUBBER MOUNT
    0
  • 24
    60785A2 BRACKET ASSEMBLY, FRONT SUPPORT
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    BRACKET ASSEMBLY, FRONT SUPPORT
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    0
  • 24
    60785A2 BRACKET ASSEMBLY, FRONT SUPPORT
    UNITED STATES 3235063 AND UP
    AUSTRALIA 3244338 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3243513 AND UP
    BRACKET ASSEMBLY, FRONT SUPPORT
    UNITED STATES 3235063 AND UP
    AUSTRALIA 3244338 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3243513 AND UP
    0
  • 25
    37921 FLANGE, RUBBER - FRONT SUPPORT BRACKET
    FLANGE, RUBBER - FRONT SUPPORT BRACKET
    0
  • 26
    37-46397 DECAL, TIMING - FRONT SUPPORT BRACKET
    DECAL, TIMING - FRONT SUPPORT BRACKET
    0
  • 27
    31014 MOUNT, RUBBER - FRONT SUPPORT BRACKET
    MOUNT, RUBBER - FRONT SUPPORT BRACKET
    260
  • 28
    13-26992 LOCKWASHER, FRONT SUPPORT BRACKET RUBBER MOUNT
    LOCKWASHER, FRONT SUPPORT BRACKET RUBBER MOUNT
    70
  • 29
    12-69057 WASHER, FRONT SUPPORT BRACKET RUBBER MOUNT
    WASHER, FRONT SUPPORT BRACKET RUBBER MOUNT
    140
  • 30
    11-20088 NUT, FRONT SUPPORT BRACKET RUBBER MOUNT
    NUT, FRONT SUPPORT BRACKET RUBBER MOUNT
    0
  • 31
    10-35386 SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1")
    SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1")
    90
  • 32
    54-25231 CLIP, SOLENOID LEAD TO FRONT SUPPORT BRACKET
    ELECTRIC
    CLIP, SOLENOID LEAD TO FRONT SUPPORT BRACKET
    ELECTRIC
    0
  • 32
    54-24836 CLIP, SOLENOID LEAD AND HARNESS TO FRONT SUPPORT BRACKET
    ELECTRIC
    CLIP, SOLENOID LEAD AND HARNESS TO FRONT SUPPORT BRACKET
    ELECTRIC
    270
  • 33
    10-69079 SCREW, CHOKE SOLENOID CLIP ATTACHING (7/16")
    ELECTRIC
    SCREW, CHOKE SOLENOID CLIP ATTACHING (7/16")
    ELECTRIC
    100
  • 34
    8M0084613 "D" WASHER, CHOKE SOLENOID CLIP SCREW
    ELECTRIC
    "D" WASHER, CHOKE SOLENOID CLIP SCREW
    ELECTRIC
    100
  • 35
    32-8M0108355 TUBE, DRAIN - FRONT SUPPORT BRACKET TO BOTTOM COWL
    TUBE, DRAIN - FRONT SUPPORT BRACKET TO BOTTOM COWL
    5 260
