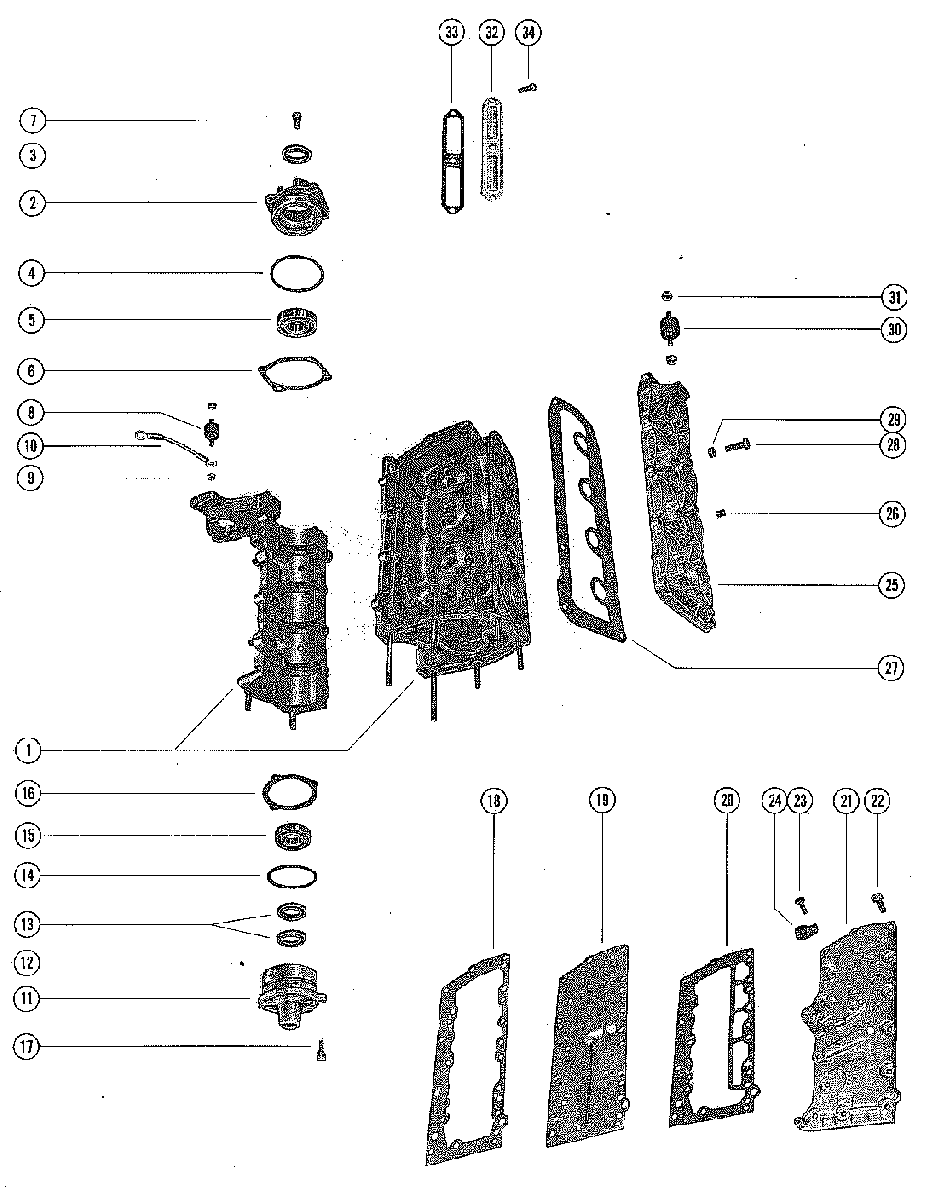

END CAPS, MANIFOLD AND EXHAUST COVERS для Mercury - 500 2863739 THRU 8029514
-
№АртикулНазвание
-
1831-5347A3 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
UNITED STATES 2858814 THRU 3478002
AUSTRALIA 2863739 THRU 8004784
BELGIUM 9001581 THRU 9006163
CANADA 2742142 THRU 7007357CYLINDER BLOCK AND CRANKCASE ASSEMBLY
UNITED STATES 2858814 THRU 3478002
AUSTRALIA 2863739 THRU 8004784
BELGIUM 9001581 THRU 9006163
CANADA 2742142 THRU 7007357 -
1831-5347A3 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
UNITED STATES 3478003 THRU 3816307
AUSTRALIA 8004785 THRU 8015989
BELGIUM 9006164 THRU 9047653
CANADA 7007358 THRU 7030747CYLINDER BLOCK AND CRANKCASE ASSEMBLY
UNITED STATES 3478003 THRU 3816307
AUSTRALIA 8004785 THRU 8015989
BELGIUM 9006164 THRU 9047653
CANADA 7007358 THRU 7030747 -
1831-5347A3 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
UNITED STATES 3816308 AND UP
AUSTRALIA 8015900 AND UP
BELGIUM 9047654 AND UP
CANADA 7030748 AND UPCYLINDER BLOCK AND CRANKCASE ASSEMBLY
UNITED STATES 3816308 AND UP
AUSTRALIA 8015900 AND UP
BELGIUM 9047654 AND UP
CANADA 7030748 AND UP -
21100-3281A1 END CAP ASSEMBLY, UPPEREND CAP ASSEMBLY, UPPER
-
326-41953 OIL SEALOIL SEAL
-
425-20081 "O" RING, UPPER END CAP"O" RING, UPPER END CAP
-
530-63742T BALL BEARING, UPPER END CAPBALL BEARING, UPPER END CAP
-
615-20082A1 SHIM, UPPER END CAP TO CYLINDER BLOCK AND CRANKCASE
(.002-3-5-10)SHIM, UPPER END CAP TO CYLINDER BLOCK AND CRANKCASE
(.002-3-5-10) -
710-29198 SCREW, UPPER END CAP MOUNTING (7/8")SCREW, UPPER END CAP MOUNTING (7/8")
-
890435 MOUNT, RUBBER - CRANCASEMOUNT, RUBBER - CRANCASE
-
911-20184 NUT, CRANKCASE RUBBER MOUNTNUT, CRANKCASE RUBBER MOUNT
-
1037996 GROUND STRAP, CRANKCASE MOUNTGROUND STRAP, CRANKCASE MOUNT
-
111102-4181A1 END CAP ASSEMBLY, LOWER
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747END CAP ASSEMBLY, LOWER
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747 -
111158-6635T1 END CAP ASSEMBLY, LOWER
UNITED STATES 3816308 AND UP
AUSTRALIA 8015900 AND UP
BELGIUM 9047654 AND UP
CANADA 7030748 AND UPEND CAP ASSEMBLY, LOWER
UNITED STATES 3816308 AND UP
AUSTRALIA 8015900 AND UP
BELGIUM 9047654 AND UP
CANADA 7030748 AND UP -
1221-42657A3 CHECK VALVE ASSEMBLY, LOWER END CAP
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747CHECK VALVE ASSEMBLY, LOWER END CAP
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747 -
1326-41953 OIL SEAL, LOWER END CAPOIL SEAL, LOWER END CAP
-
1425-20081 "O" RING, LOWER END CAP"O" RING, LOWER END CAP
-
1530-63742T BALL BEARING, LOWER END CAPBALL BEARING, LOWER END CAP
-
1615-20085A1 SHIM, LOWER END CAP TO CRANKCASE AND CYLINDER BLOCK (.002-3-)SHIM, LOWER END CAP TO CRANKCASE AND CYLINDER BLOCK (.002-3-)
-
1710-29198 SCREW, LOWER END CAP MOUNTING (7/8")SCREW, LOWER END CAP MOUNTING (7/8")
-
1827-854913 GASKET, CYLINDER BLOCK TO BAFFLE PLATEGASKET, CYLINDER BLOCK TO BAFFLE PLATE
-
1990421T01 PLATE, BAFFLE - EXHAUST MANIFOLDPLATE, BAFFLE - EXHAUST MANIFOLD
-
2027-854924 GASKET, BAFFLE PLATE TO EXHAUST COVERGASKET, BAFFLE PLATE TO EXHAUST COVER
-
2146112A3 COVER, EXHAUST MANIFOLDCOVER, EXHAUST MANIFOLD
-
2210-37562 SCREW, MANIFOLD COVER TO CYLINDER BLOCK (1")SCREW, MANIFOLD COVER TO CYLINDER BLOCK (1")
-
2310-38837 SCREW, MANIFOLD COVER TO CYLINDER BLOCK - HIGH TENSION CLIPSCREW, MANIFOLD COVER TO CYLINDER BLOCK - HIGH TENSION CLIP
-
2454-52905 CLIP, HIGH TENSION LEADCLIP, HIGH TENSION LEAD
-
251017-7054A1 COVER ASSEMBLY, CYLINBER BLOCKCOVER ASSEMBLY, CYLINBER BLOCK
-
2622-328022 PLUG, PIPE - CYLINDER BLOCK COVERPLUG, PIPE - CYLINDER BLOCK COVER
-
2727-85487 GASKET, CYLINDER BLOCK COVERGASKET, CYLINDER BLOCK COVER
-
2810-20653 SCREW, CYLINDER BLOCK COVER MOUNTING (1")SCREW, CYLINDER BLOCK COVER MOUNTING (1")
-
2911-20184 NUT, COVER MOUNTING SCREWNUT, COVER MOUNTING SCREW
-
3090435 MOUNT, RUBBER - CYLINDER BLOCK COVERMOUNT, RUBBER - CYLINDER BLOCK COVER
-
3111-20184 NUT, CYLINDER BLOCK COVER RUBBER MOUNTNUT, CYLINDER BLOCK COVER RUBBER MOUNT
-
3227935 COVER, TRANSFER PORTCOVER, TRANSFER PORT
-
3327-279361 GASKET, TRANSFER PORT COVERGASKET, TRANSFER PORT COVER
-
3410-20540 SCREW, TRNASFER PORT COVER MOUNTING (5/8")SCREW, TRNASFER PORT COVER MOUNTING (5/8")
