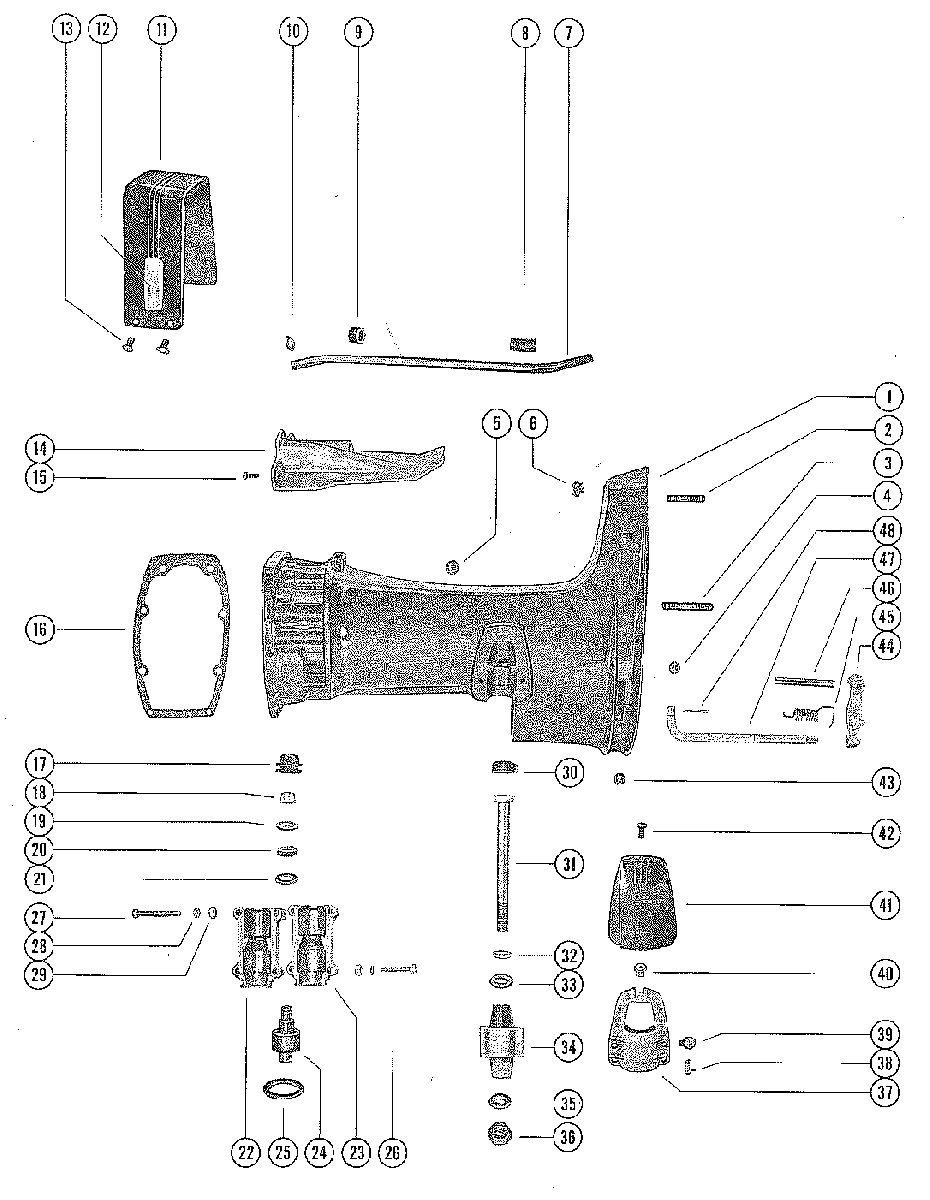

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 500 1639473 THRU 1755548

  • №
    Артикул
    Название
  • 1
    1545-2337A4 DRIVE SHAFT HOUSING ASSEMBLY
    DRIVE SHAFT HOUSING ASSEMBLY
  • 2
    16-8M0022145 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")
  • 3
    16-57935 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")
  • 4
    11-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16)
    NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16)
  • 5
    11-862902 NUT, POWERHEAD TO DRIVE SHAFT HOUSING (5/6)
    NUT, POWERHEAD TO DRIVE SHAFT HOUSING (5/6)
  • 6
    19-32298 PLUG, PLASTIC - WATER PICK-UP SCREW HOLE
    PLUG, PLASTIC - WATER PICK-UP SCREW HOLE
  • 7
    32-31998 TUBE, WATER INLET
    TUBE, WATER INLET
  • 8
    23-23561 SLEEVE, WATER INLET TUBE
    SLEEVE, WATER INLET TUBE
  • 9
    25-24961 RING, RUBBER - WATER INLET TUBE
    RING, RUBBER - WATER INLET TUBE
  • 10
    26-25192 SEAL, WATER INLET TUBE
    SEAL, WATER INLET TUBE
  • 11
    35394A1 TRIM COVER ASSEMBLY
    TRIM COVER ASSEMBLY
  • 12
    37-35393 DECAL, TRIM COVER - PORT AND STARBOARD
    DECAL, TRIM COVER - PORT AND STARBOARD
  • 13
    10-30742 SCREW, TRIM COVER TO DRIVE SHAFT HOUSING
    SCREW, TRIM COVER TO DRIVE SHAFT HOUSING
  • 14
    32016 BAFFLE, EXHAUST RELIEF
    BAFFLE, EXHAUST RELIEF
  • 15
    10-25255 SCREW, RELLIEF BAFFLE TO DRIVE SHAFT HOUSING
    SCREW, RELLIEF BAFFLE TO DRIVE SHAFT HOUSING
  • 16
    27-31995 GASKET, BOTTOM COWL TO DRIVE SHAFT HOUSING
    GASKET, BOTTOM COWL TO DRIVE SHAFT HOUSING
  • 17
    25305 CAP, RUBBER - UPPER MOUNT BOLT NUT
    CAP, RUBBER - UPPER MOUNT BOLT NUT
  • 18
    11-23161 NUT, UPPER MOUNT BOLT
    NUT, UPPER MOUNT BOLT
  • 19
    12-30519 WASHER, UPPER MOUNT BOLT (3/8 ID)
    WASHER, UPPER MOUNT BOLT (3/8 ID)
  • 20
    12-30521 WASHER, RUBBER - UPPER MOUNT BOLT
    WASHER, RUBBER - UPPER MOUNT BOLT
  • 21
    12-30520 WASHER, UPPER MOUNT BOLT (37/64/ID)
    WASHER, UPPER MOUNT BOLT (37/64/ID)
  • 22
    79680A1 COVER, UPPER MOUNT - OUTSIDE HALP
    COVER, UPPER MOUNT - OUTSIDE HALP
  • 23
    79680A1 COVER, UPPER MOUNT - INSIDE HALF
    COVER, UPPER MOUNT - INSIDE HALF
  • 24
    75305 MOUNT, RUBBER - UPPER
    MOUNT, RUBBER - UPPER
  • 25
    24929 PACKING, "U" CUP - UPPER MOUNT COVERS
    PACKING, "U" CUP - UPPER MOUNT COVERS
  • 26
    10-28772 SCREW, UPPER MOUNT COVER - REAR (1 1/2")
    SCREW, UPPER MOUNT COVER - REAR (1 1/2")
  • 27
    10-37941 SCREW, UPPER MOUNT COVER - FRONT (1 3/4')
    SCREW, UPPER MOUNT COVER - FRONT (1 3/4')
  • 28
    12-29245 WASHER, MOUNT COVER FASTENING SCREW
    WASHER, MOUNT COVER FASTENING SCREW
  • 29
    11-35888 NUT, UPPER MOUNT COVER FASTENING SCREW
    NUT, UPPER MOUNT COVER FASTENING SCREW
  • 30
    22-22946 BAMPER, RUBBER - LOWER MOUNT SCREW
    BAMPER, RUBBER - LOWER MOUNT SCREW
  • 31
    10-75284 SCRWE, LOWER MOUNT (5 1/2")
    SCRWE, LOWER MOUNT (5 1/2")
  • 32
    12-28051 WASHER, LOWER MOUNT SCREW
    WASHER, LOWER MOUNT SCREW
  • 33
    12-28053 WASHER, RUBBER - LOWER MOUNG SCREW
    WASHER, RUBBER - LOWER MOUNG SCREW
  • 34
    75304T1 MOUNT, RUBBER - LOWER
    MOUNT, RUBBER - LOWER
  • 35
    12-30119 WASHER, LOWER MOUNT SCREW (1/8")
    WASHER, LOWER MOUNT SCREW (1/8")
  • 36
    11-25196 NUT, LOWER MOUNT SCREW
    NUT, LOWER MOUNT SCREW
  • 37
    69592F1 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
    CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
  • 38
    24-35522 SPRING, TENSION - LOWER MOUNT CLAMP
    SPRING, TENSION - LOWER MOUNT CLAMP
  • 39
    10-29256 SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING
    SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING
  • 40
    11-35521 NUT, LOWER MOUNT CLAMP COVER
    NUT, LOWER MOUNT CLAMP COVER
  • 41
    35474T COVER, LOWER MOUNT CLAMP
    COVER, LOWER MOUNT CLAMP
  • 42
    10-29722 SCREW, COVER TO LOWER MOUNT CLAMP
    SCREW, COVER TO LOWER MOUNT CLAMP
  • 43
    22-390721 PLUG, GREASE - REVERSE LOCK HOLE
    PLUG, GREASE - REVERSE LOCK HOLE
  • 44
    52920 LEVER, REVERSE LOCK
    LEVER, REVERSE LOCK
  • 45
    24-25122 SPRING, TENSION - PUSH ROD
    SPRING, TENSION - PUSH ROD
  • 46
    17-24887 PIN, REVERSE LOCK LEVER
    PIN, REVERSE LOCK LEVER
  • 47
    28470 ROD, PUSH - REVERSE LOCK
    ROD, PUSH - REVERSE LOCK
  • 48
    18-25191 COTTER PIN, PUSH ROD TO REVERSE LOCK
    COTTER PIN, PUSH ROD TO REVERSE LOCK
