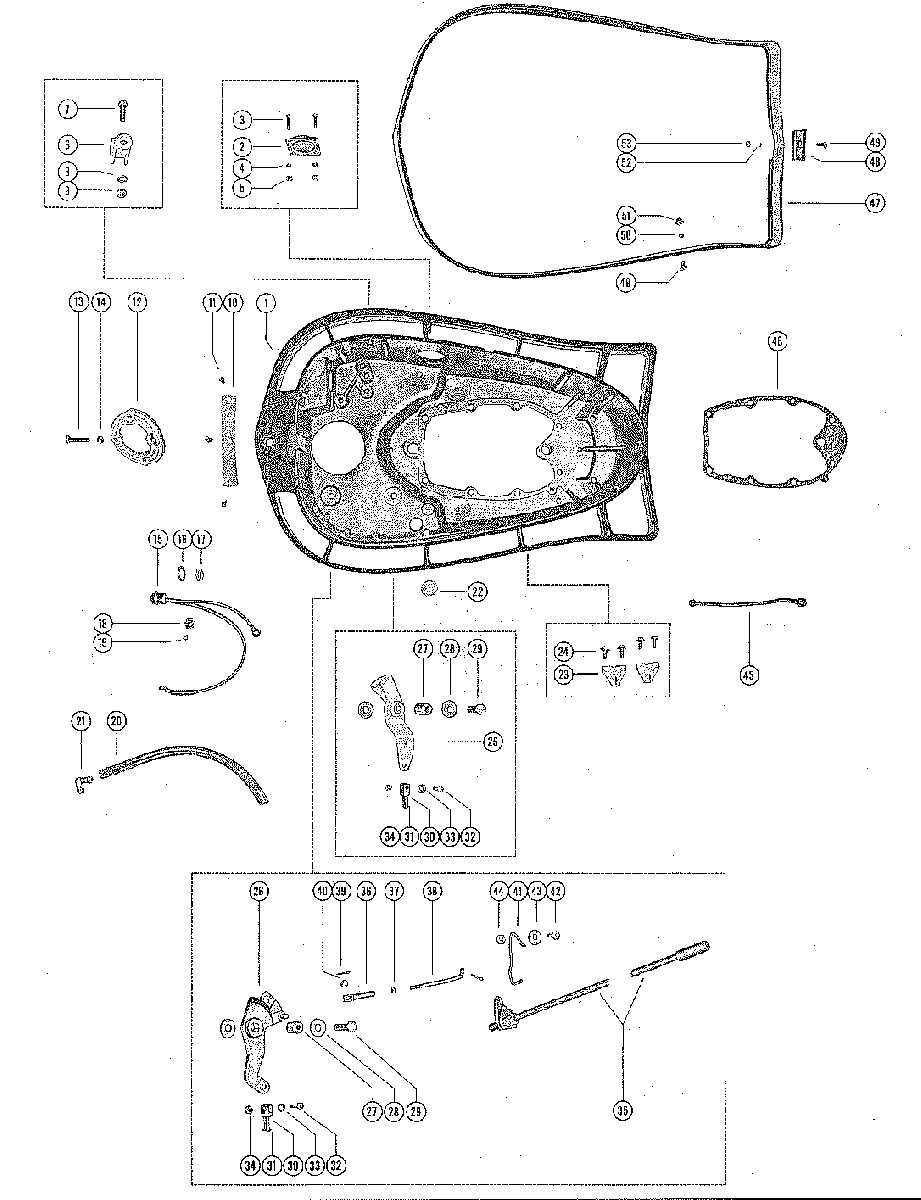

BOTTOM COWL ASSEMBLY для Mercury - 500 1639473 THRU 1755548

  • №
    Артикул
    Название
  • 1
    103-2354A2 BOTTOM COWL ASSEMBLY
    BOTTOM COWL ASSEMBLY
  • 2
    29206 COVER, PLUG - BOTTOM COWL HARNESS HOLE
    COVER, PLUG - BOTTOM COWL HARNESS HOLE
  • 2
    29206 COVER, PLUG - BOTTOM COWL HARNESS HOLE
    COVER, PLUG - BOTTOM COWL HARNESS HOLE
  • 3
    10-45893 SCREW, PLUG COVER TO BOTTOM COWL
    SCREW, PLUG COVER TO BOTTOM COWL
  • 3
    10-45893 SCREW, PLUG COVER TO BOTTOM COWL
    SCREW, PLUG COVER TO BOTTOM COWL
  • 4
    13-26995 LOCKWASHER, PLUG COVER FATENING SCREW
    LOCKWASHER, PLUG COVER FATENING SCREW
  • 4
    13-26995 LOCKWASHER, PLUG COVER FATENING SCREW
    LOCKWASHER, PLUG COVER FATENING SCREW
  • 5
    11-26419 NUT, PLUG COVER FASTENING SCREW
    NUT, PLUG COVER FASTENING SCREW
  • 5
    11-26419 NUT, PLUG COVER FASTENING SCREW
    NUT, PLUG COVER FASTENING SCREW
  • 6
    26552 SUPPORT, EXTERNAL WIRING HARNESS
    SUPPORT, EXTERNAL WIRING HARNESS
  • 7
    10-20639 SCREW, HARNESS SUPPORT TO BOTTOM COWL
    SCREW, HARNESS SUPPORT TO BOTTOM COWL
  • 8
    12-20084 WASHER, HARNESS SUPPORT FASTENING SCREW
    WASHER, HARNESS SUPPORT FASTENING SCREW
  • 9
    11-29250 NUT, HARNESS SUPPORT FASTENING SCREW
    NUT, HARNESS SUPPORT FASTENING SCREW
  • 10
    23760 BAFFLE, BOTTOM COWL
    BAFFLE, BOTTOM COWL
  • 11
    10-21106 SCREW, BAFLE TO BOTTOM COWL
    SCREW, BAFLE TO BOTTOM COWL
  • 12
    30999 BRACKET, LOCK KNOB - COWL FRONT COVER
    BRACKET, LOCK KNOB - COWL FRONT COVER
  • 13
    10-21091 SCREW, BRACKET TO BOTTOM COWL (1 1/8")
    SCREW, BRACKET TO BOTTOM COWL (1 1/8")
  • 14
    11-20184 NUT, BRACKET FASTENING SCREW
    NUT, BRACKET FASTENING SCREW
  • 15
    21104A2 CONNECTOR BASE ASSEMBLY
    CONNECTOR BASE ASSEMBLY
  • 16
    13-21972 LOCKWASHER, CONNECTOR BASE
    LOCKWASHER, CONNECTOR BASE
  • 17
    11-21971 NUT, CONNECTOR BASE TO BOTTOM COWL
    NUT, CONNECTOR BASE TO BOTTOM COWL
  • 18
    54-25231 CLIP, CONNECTOR BASE LEAD WIRE
    CLIP, CONNECTOR BASE LEAD WIRE
  • 19
    10-22815 SCREW, LEAD WIRE CLIP TO BOTTOM COWL
    SCREW, LEAD WIRE CLIP TO BOTTOM COWL
  • 20
    32-8M0108355 TUBE, VENT - MAGNETO OUTLET (10 1/2")
    TUBE, VENT - MAGNETO OUTLET (10 1/2")
  • 21
    22-996642 ELBOW, MAGNETO VENT TUBE
    ELBOW, MAGNETO VENT TUBE
  • 22
    19-824928001 PLUG, BOTTOM COWL HOLE
    PLUG, BOTTOM COWL HOLE
  • 23
    20557 BRACKET, CABLE END ANCHOR
    BRACKET, CABLE END ANCHOR
  • 24
    10-29200 SCREW, ANCHOR BRACKET TO BOTTOM COWL
    SCREW, ANCHOR BRACKET TO BOTTOM COWL
  • 25
    29532 LEVER, THROTTLE CONTROL
    LEVER, THROTTLE CONTROL
  • 26
    30612 LEVER, SHIFT CONTROL
    LEVER, SHIFT CONTROL
  • 27
    23-29529 BUSHING, THROTTLE AND SHIFT LEVER
    BUSHING, THROTTLE AND SHIFT LEVER
  • 28
    12-8M0042641 WASHER, THROTTLE AND SHIFT LEVER SCREW
    WASHER, THROTTLE AND SHIFT LEVER SCREW
  • 29
    10-37612 SCREW, THROTTLE AND SHIFT LEVER FASTENING
    SCREW, THROTTLE AND SHIFT LEVER FASTENING
  • 30
    17-30978A1 PIN ASSEMBLY, CLEVIS YOKE
    PIN ASSEMBLY, CLEVIS YOKE
  • 31
    17-239281 ROLL PIN, CLEVIS YOKE PIN
    ROLL PIN, CLEVIS YOKE PIN
  • 32
    10-20584 SCREW, CLEVIS YOKE PIN TO CONTROL LEVER
    SCREW, CLEVIS YOKE PIN TO CONTROL LEVER
  • 33
    13-29402 WASHER, WAVE - CLEVIS PIN FASTENING SCREW
    WASHER, WAVE - CLEVIS PIN FASTENING SCREW
  • 34
    11-826709106 NUT, CLEVIS PIN FASTENING SCREW
    NUT, CLEVIS PIN FASTENING SCREW
  • 35
    25180 SHIFT SHAFT ASSEMBLY, UPPER
    SHIFT SHAFT ASSEMBLY, UPPER
  • 36
    27714 ROD (SLEEVE), SHIFT CONTROL END
    ROD (SLEEVE), SHIFT CONTROL END
  • 37
    11-25168 NUT, ADJUSTING - SHIFT SHAFT END
    NUT, ADJUSTING - SHIFT SHAFT END
  • 38
    25134 ROD, LINK - SHIFT SHAFT END
    ROD, LINK - SHIFT SHAFT END
  • 39
    18-25191 COTTER PIN, LINK ROD TO SHIFT SHAFT
    COTTER PIN, LINK ROD TO SHIFT SHAFT
  • 40
    12-20583 WASHER, SHIFT CONTROL END ROD
    WASHER, SHIFT CONTROL END ROD
  • 41
    24-25065 SPRING, DETENT - SHIFT SHAFT
    SPRING, DETENT - SHIFT SHAFT
  • 42
    10-98256 SCREW, DETENT SPRING TO BOTTOM COWL
    SCREW, DETENT SPRING TO BOTTOM COWL
  • 43
    12-69057 WASHER, DETENT SPRING SCREW
    WASHER, DETENT SPRING SCREW
  • 44
    11-20013 NUT, DETENT SPRING FASTENING SCREW
    NUT, DETENT SPRING FASTENING SCREW
  • 45
    30109 GROUND STRAP, CYLINDER BLOCK TO BOTTOM COWL
    GROUND STRAP, CYLINDER BLOCK TO BOTTOM COWL
  • 46
    27-20390 GASKET, POWERHEAD TO BOTTOM COWL
    GASKET, POWERHEAD TO BOTTOM COWL
  • 47
    35392A1 TRIM MOULDING ASSEMBLY, BOTTOM COWL
    TRIM MOULDING ASSEMBLY, BOTTOM COWL
  • 48
    29998 SPLICER, TRIM MOULDING - REAR
    SPLICER, TRIM MOULDING - REAR
  • 49
    10-29226 SCREW, DECORATIVE - TRIM MOULDING TO COWL
    SCREW, DECORATIVE - TRIM MOULDING TO COWL
  • 50
    12-24671 WASHER, FIBRE - MOULDING FASTENING SCREW
    WASHER, FIBRE - MOULDING FASTENING SCREW
  • 51
    11-29225 NUT, NYLON CAP - MOULDING FASTENING SCREW
    NUT, NYLON CAP - MOULDING FASTENING SCREW
  • 52
    13-26995 LOCKWASHER, MOULDING FASTENING SCREW
    LOCKWASHER, MOULDING FASTENING SCREW
  • 53
    11-26419 NUT, BRASS - MOULDING FASTEING SCREW
    NUT, BRASS - MOULDING FASTEING SCREW
