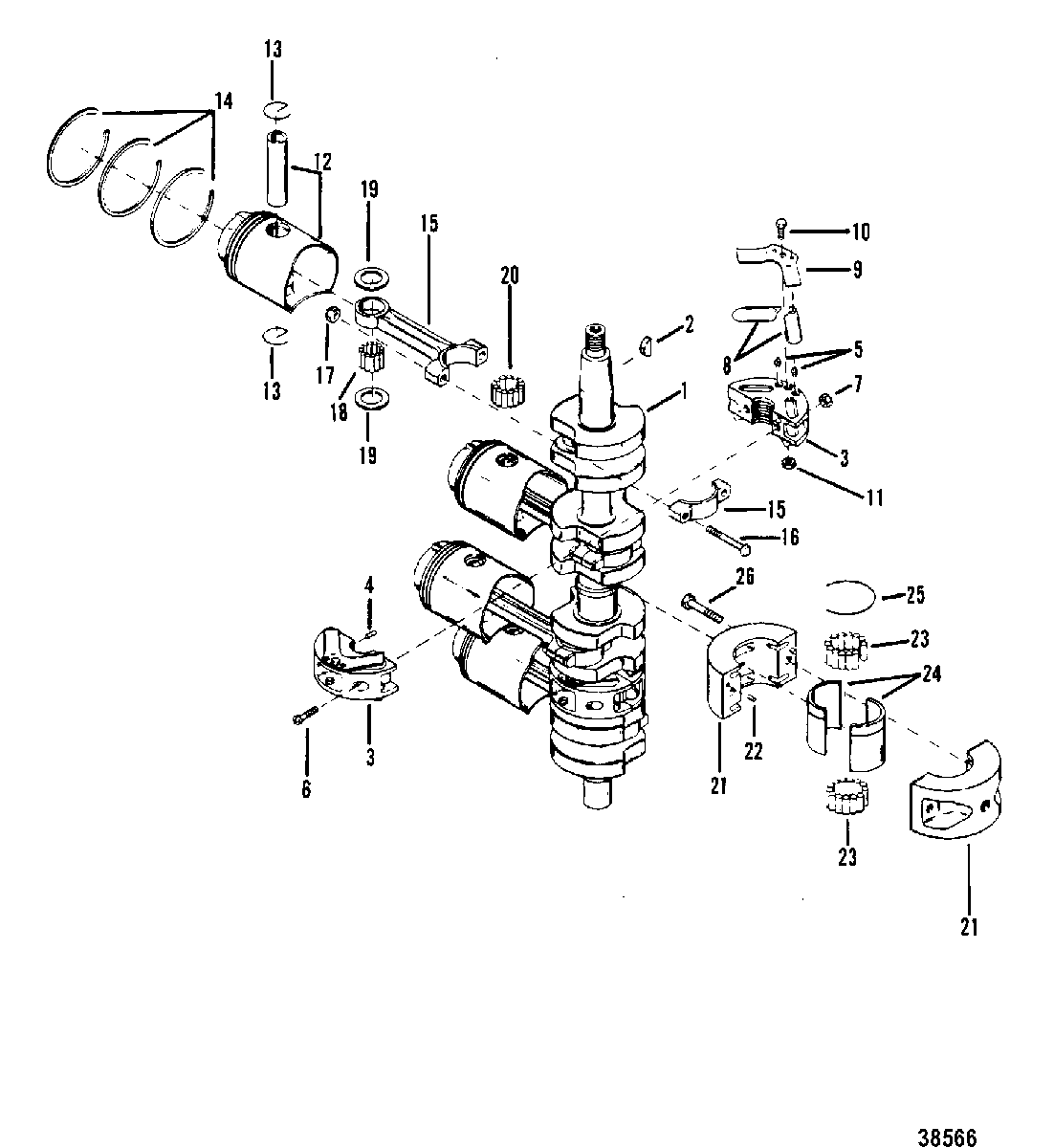

CRANKSHAFT, PISTONS, AND CONNECTING RODS для Mercury - 50 (4 CYL.) 7143688 & Up

  • №
    Артикул
    Название
  • 1
    459-9075T CRANKSHAFT
    CRANKSHAFT
  • 2
    28-20094 KEY, Woodruff, CRANKSHAFT
    KEY, Woodruff, CRANKSHAFT
  • 3
    534-3267T25 BEARING ASSEMBLY, Main (VALVE TYPE)
    BEARING ASSEMBLY, Main (VALVE TYPE)
  • 4
    17-20032 PIN, Dowel, MAIN BEARING
    PIN, Dowel, MAIN BEARING
  • 5
    17-65855 PIN, Dowel, REED LOCATING
    PIN, Dowel, REED LOCATING
  • 6
    10-45775 SCREW, (#12-28 x .560) , MAIN BEARING
    SCREW, (#12-28 x .560) , MAIN BEARING
  • 7
    11-45774 NUT, MAIN BEARING SCREW
    NUT, MAIN BEARING SCREW
  • 8
    34-88498A1 REED SET, MATCHED
    REED SET, MATCHED
  • 9
    34-822839 STOP, Reed
    STOP, Reed
  • 10
    10-77280 SCREW, (.190-32 x .560), REED STOP
    SCREW, (.190-32 x .560), REED STOP
  • 11
    11-20110 NUT, (#10-32), REED STOP SCREW
    NUT, (#10-32), REED STOP SCREW
  • 12
    780-9229A7 PISTON ASSEMBLY
    PISTON ASSEMBLY
  • 12
    780-9229A10 PISTON ASSEMBLY (.015 OVERSIZE)
    PISTON ASSEMBLY (.015 OVERSIZE)
  • 12
    780-9229A11 PISTON ASSEMBLY (.030 OVERSIZE)
    PISTON ASSEMBLY (.030 OVERSIZE)
  • 13
    40-828119 LOCK RING, PISTON PIN
    LOCK RING, PISTON PIN
  • 14
    39-27841A12 RING SET, Piston - Standard
    RING SET, Piston - Standard
  • 14
    39-28616A12 RING SET, Piston (.015 OVERSIZE)
    RING SET, Piston (.015 OVERSIZE)
  • 14
    39-89822A12 RING SET, Piston - .030 Oversize
    RING SET, Piston - .030 Oversize
  • 15
    632-7621A3 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 16
    10-45379 SCREW, CAP TO ROD - WITH NUT
    SCREW, CAP TO ROD - WITH NUT
  • 16
    10-91012 SCREW, (.250-28 Special), CAP TO ROD - WITHOUT NUT
    SCREW, (.250-28 Special), CAP TO ROD - WITHOUT NUT
  • 17
    11-20061 NUT, ROD SCREW - WITH NUT
    NUT, ROD SCREW - WITH NUT
  • 18
    29-20063 BEARING, Needle, PISTON PIN
    BEARING, Needle, PISTON PIN
  • 19
    12-47275 WASHER, NEEDLE LOCATING
    WASHER, NEEDLE LOCATING
  • 20
    29-20046T BEARING, Needle, CRANKPIN
    BEARING, Needle, CRANKPIN
  • 21
    547-7060A2 BEARING ASSEMBLY, Center Main
    BEARING ASSEMBLY, Center Main
  • 22
    17-20032 PIN, Dowel, CENTER MAIN BEARING
    PIN, Dowel, CENTER MAIN BEARING
  • 23
    29-714221 BEARING, Needle
    BEARING, Needle
  • 24
    26113T RACE, OUTER
    RACE, OUTER
  • 25
    53-26933 RING, Snap, OUTER RACE
    RING, Snap, OUTER RACE
  • 26
    10-76630 SCREW, (.250-20 x 1.00), CENTER MAIN BEARING
    SCREW, (.250-20 x 1.00), CENTER MAIN BEARING
