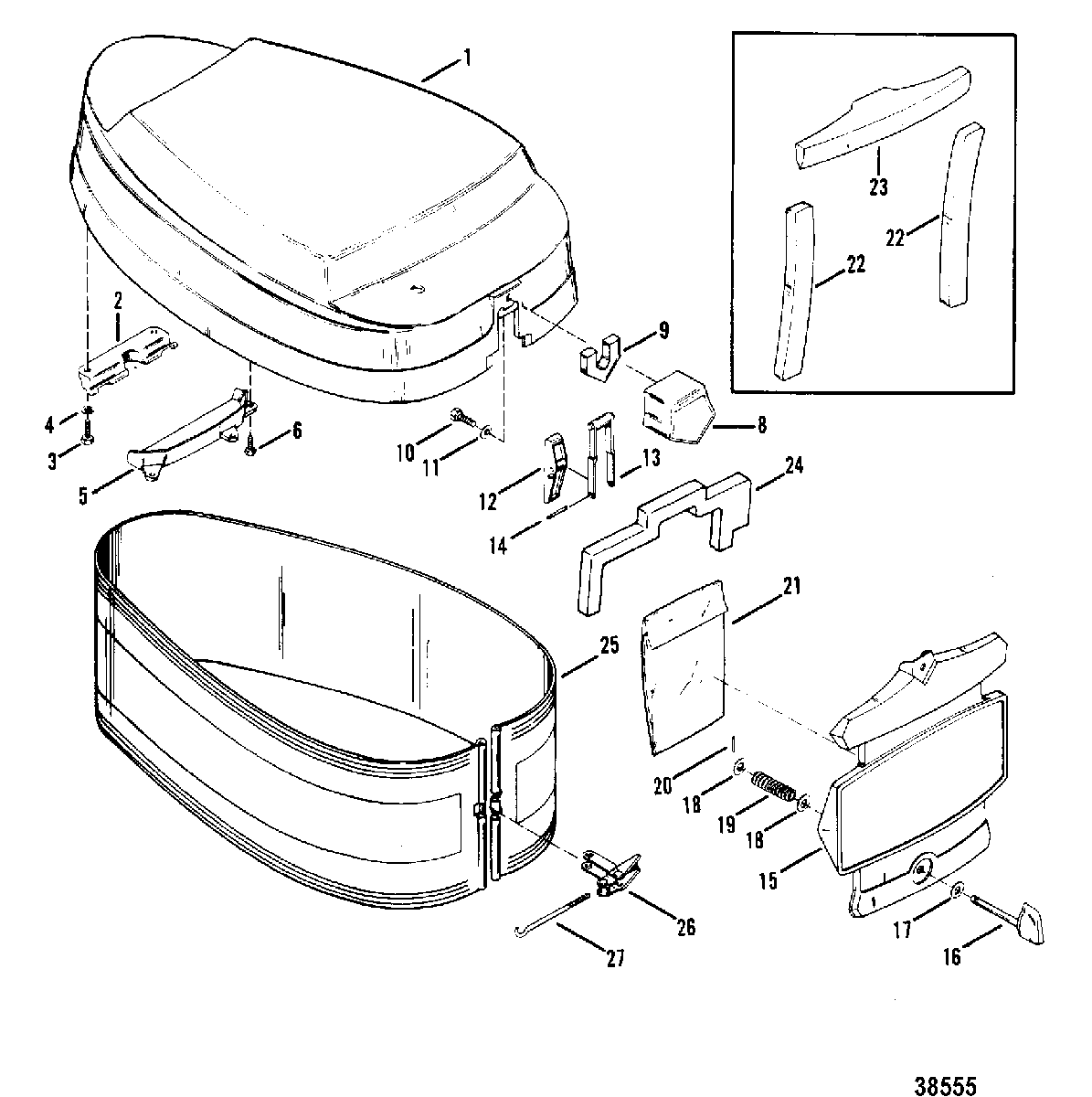

COWLING для Mercury - 50 (4 CYL.) 7143688 & Up
-
№АртикулНазвание
-
12153-7938 TOP COWL ASSEMBLY
(MANUAL) (MERCURY)TOP COWL ASSEMBLY
(MANUAL) (MERCURY) -
12153-7937A8 TOP COWL ASSEMBLY
(ELECTRIC) (MERCURY)TOP COWL ASSEMBLY
(ELECTRIC) (MERCURY) -
12153-7938F4 TOP COWL ASSEMBLY
(MANUAL) (DARK GRAY) (MARINER)TOP COWL ASSEMBLY
(MANUAL) (DARK GRAY) (MARINER) -
12153-7937F4 TOP COWL ASSEMBLY
(ELECTRIC) (DARK GRAY) (MARINER)TOP COWL ASSEMBLY
(ELECTRIC) (DARK GRAY) (MARINER) -
12153-7938F4 TOP COWL ASSEMBLY
(MANUAL) (LIGHT GRAY) (MARINER)TOP COWL ASSEMBLY
(MANUAL) (LIGHT GRAY) (MARINER) -
12153-7937F4 TOP COWL ASSEMBLY
(ELECTRIC) (LIGHT GRAY) (MARINER)TOP COWL ASSEMBLY
(ELECTRIC) (LIGHT GRAY) (MARINER) -
255455 HOOK, TOP COWL LATCH - REARHOOK, TOP COWL LATCH - REAR
-
310-22956 SCREW, (.250-28 x .880), REAR HOOK TO TOP COWLSCREW, (.250-28 x .880), REAR HOOK TO TOP COWL
-
413-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
537690 SHIELD, REARSHIELD, REAR
-
610-48409 SCREW, (#10-16 x .625) Stainless Steel, REAR SHIELD TO TOP COWLSCREW, (#10-16 x .625) Stainless Steel, REAR SHIELD TO TOP COWL
-
897447A1 RETAINER ASSEMBLY, TOP COWL
SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & UpRETAINER ASSEMBLY, TOP COWL
SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & Up -
855459A5 RETAINER ASSEMBLY, TOP COWL
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & BelowRETAINER ASSEMBLY, TOP COWL
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & Below -
935496 PAD, BUMPER
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & BelowPAD, BUMPER
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & Below -
1010-35386 SCREW, (.312-18 x 1.00)
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & BelowSCREW, (.312-18 x 1.00)
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & Below -
1010-53167T SCREW, (.312-18 x .880)
SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & UpSCREW, (.312-18 x .880)
SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & Up -
1113-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
1294918F1 LEVER, COWL LATCH HINGELEVER, COWL LATCH HINGE
-
1352739 HINGE, COWL LATCH - TOP COWLHINGE, COWL LATCH - TOP COWL
-
1417-58998 PIN, COWL LATCH LEVER TO HINGEPIN, COWL LATCH LEVER TO HINGE
-
152182-7927A5 COVER ASSEMBLY, Cowl - Front (W/O DECALS)
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & BelowCOVER ASSEMBLY, Cowl - Front (W/O DECALS)
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & Below -
152182-7927A5 FRONT COVER MERCURY
SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & UpFRONT COVER MERCURY
SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & Up -
152182-7927A19 FRONT COVER MARINER
DARK GRAY SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & UpFRONT COVER MARINER
DARK GRAY SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & Up -
152182-7927A19 FRONT COVER MARINER
LIGHT GRAY SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & UpFRONT COVER MARINER
LIGHT GRAY SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & Up -
1656948 KNOB, COWL FRONT COVERKNOB, COWL FRONT COVER
-
1712-30771 WASHER, COVER KNOBWASHER, COVER KNOB
-
1812-59572 WASHER, COVER KNOBWASHER, COVER KNOB
-
1924-30772 SPRING, TENSION - COVER KNOBSPRING, TENSION - COVER KNOB
-
2017-29077 PIN, RollPIN, Roll
-
2138674 BLANKET, SOUNDBLANKET, SOUND
-
2231095 SEAL, SOUND - LOWER SECTION
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & BelowSEAL, SOUND - LOWER SECTION
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & Below -
2338133 SEAL, SOUND - UPPER SECTION
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & BelowSEAL, SOUND - UPPER SECTION
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & Below -
2494923 PAD, SOUND
SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & UpPAD, SOUND
SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & Up -
252118-3247A3 TOP COWL ASSEMBLY, Wrap Around - MercuryTOP COWL ASSEMBLY, Wrap Around - Mercury
-
252172-8181A4 WRAP AROUND COWL MARINER
DARK GRAYWRAP AROUND COWL MARINER
DARK GRAY -
252172-8181A4 TOP COWL ASSEMBLY, Wrap Around - Mariner
LIGHT GRAYTOP COWL ASSEMBLY, Wrap Around - Mariner
LIGHT GRAY -
2646785A1 LATCH ASSEMBLY, CowlLATCH ASSEMBLY, Cowl
-
2730413 HOOK, COWL LATCHHOOK, COWL LATCH
