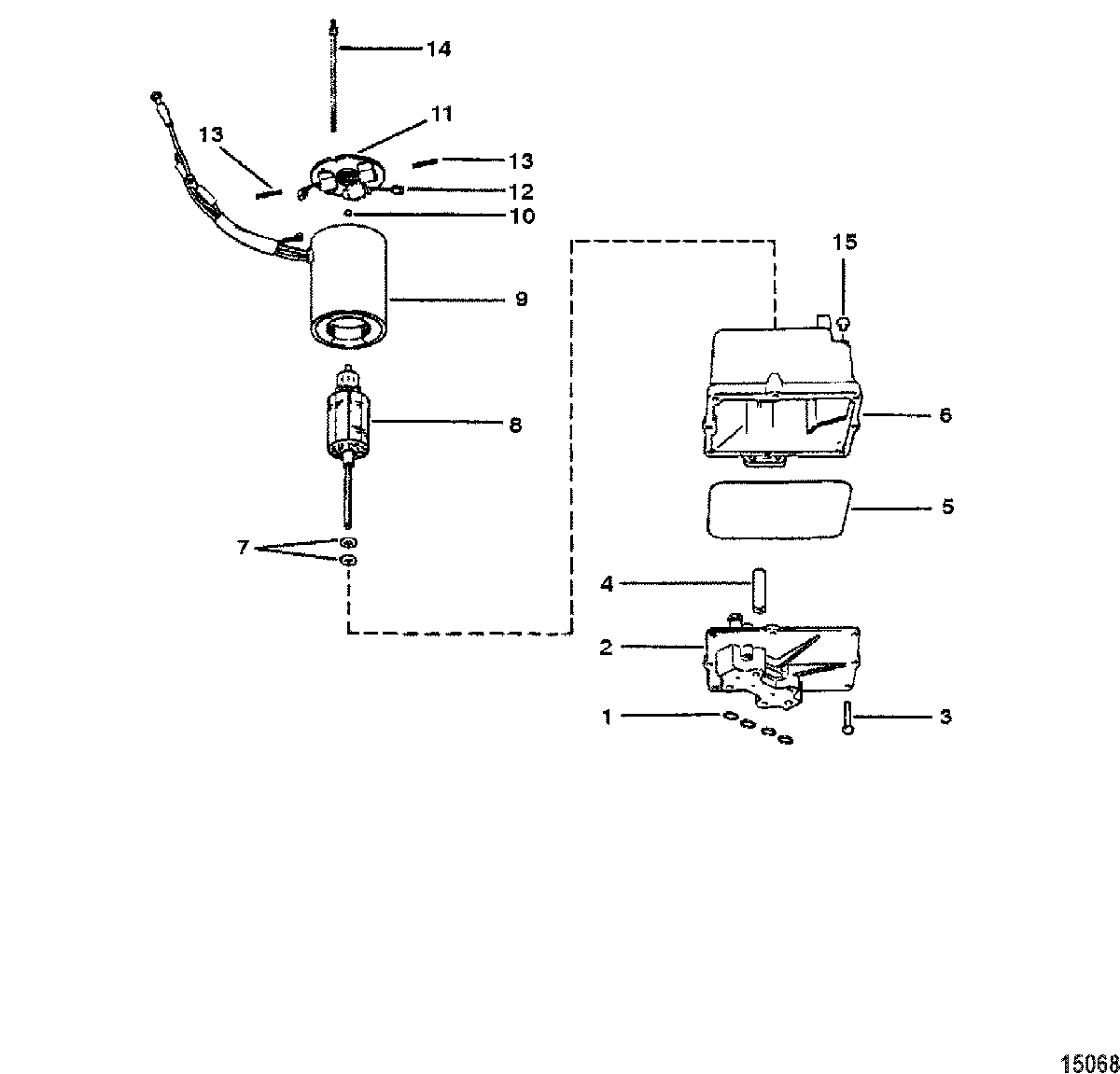

HYDRAULIC PUMP ASSEMBLY(PLASTIC RESERVOIR) для Mercury - 45 (4 CYL.) 8063985 & Up
-
№АртикулНазвание
-
-92975A32 PUMP ASSEMBLY, HydraulicPUMP ASSEMBLY, Hydraulic
-
125-48171 O-RING, (.364. x .070), HYDRAULIC PUMPO-RING, (.364. x .070), HYDRAULIC PUMP
-
292975A32 VALVE BODY AND GEAR ASSEMBLYVALVE BODY AND GEAR ASSEMBLY
-
310-69570 SCREW, (#10-16 x .750), VALVE BODY TO RESERVOIRSCREW, (#10-16 x .750), VALVE BODY TO RESERVOIR
-
4392-7727 COUPLER AND SHAFTCOUPLER AND SHAFT
-
5392-7735 SEAL, RESERVOIR TO VALVE BODY AND GEARSEAL, RESERVOIR TO VALVE BODY AND GEAR
-
6392-7731 RESEROVIR ASSEMBLY (PLASTIC)RESEROVIR ASSEMBLY (PLASTIC)
-
7392-7732 WASHER, THRUST - ARMATUREWASHER, THRUST - ARMATURE
-
8392-7729 ARMATURE, FIELD AND FRAMEARMATURE, FIELD AND FRAME
-
9392-8261 FIELD AND FRAME ASSEMBLYFIELD AND FRAME ASSEMBLY
-
10392-7730 BALL, COMMUTATOR END PLATEBALL, COMMUTATOR END PLATE
-
11392-8262 PLATE ASSEMBLY, COMMUTATOR ENDPLATE ASSEMBLY, COMMUTATOR END
-
12392-8989 BRUSH SET, COMMUTATOR END PLATEBRUSH SET, COMMUTATOR END PLATE
-
13392-2529 SPRING SET, BRUSH TENSIONSPRING SET, BRUSH TENSION
-
14392-7733 BOLT SET, Thru- Plate and Frame to ReservoirBOLT SET, Thru- Plate and Frame to Reservoir
-
15392-7728 FILL PLUG, RESERVOIRFILL PLUG, RESERVOIR
