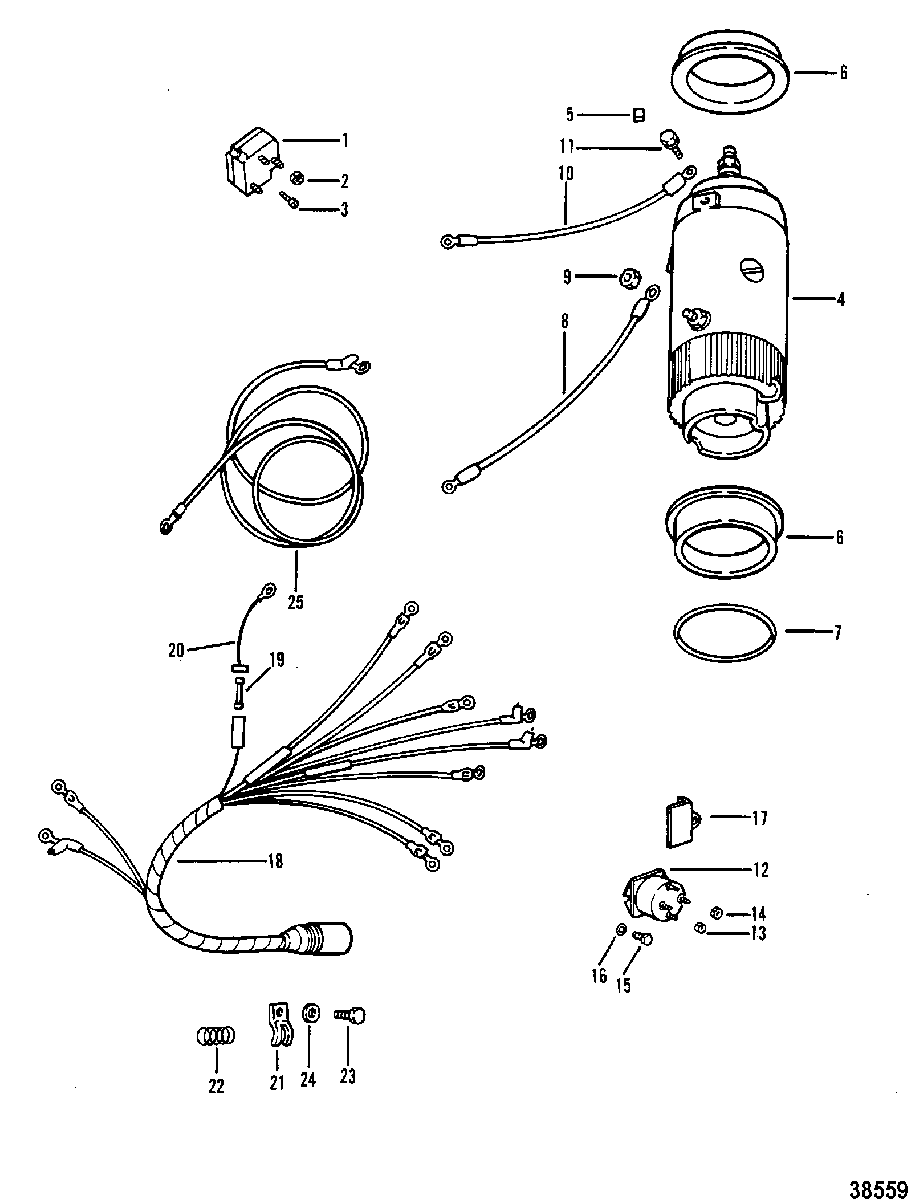

ELECTRIC COMPONENTS для Mercury - 45 (4 CYL.) 8063985 & Up

  • №
    Артикул
    Название
  • 1
    8M0058226 RECTIFIER
    RECTIFIER
  • 2
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 3
    10-20411 SCREW, (.190-24 x .62)
    SCREW, (.190-24 x .62)
  • 4
    50-898265005 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 5
    8M0043376 STOP, RUBBER
    STOP, RUBBER
  • 6
    23-8M0034918 COLLAR, RUBBER
    COLLAR, RUBBER
  • 7
    23-56774 SPACER, COLLAR TO BRACKET
    SPACER, COLLAR TO BRACKET
  • 8
    84-93389A1 WIRE (YELLOW)
    WIRE (YELLOW)
  • 9
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 10
    84-93388A14 CABLE ASSEMBLY, Black
    CABLE ASSEMBLY, Black
  • 11
    10-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
    SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
  • 12
    89-853654A1 SOLENOID, Starter
    SN# USA-6146848/Aus-8075602/Bel-9362390/Can-7198592 & Below
    SOLENOID, Starter
    SN# USA-6146848/Aus-8075602/Bel-9362390/Can-7198592 & Below
  • 12
    89-96158T SOLENOID, Starter
    SN# USA-6146849/Bel-9362391/Can-7198593 & Up
    SOLENOID, Starter
    SN# USA-6146849/Bel-9362391/Can-7198593 & Up
  • 13
    11-45076 NUT, (#10-32) Brass
    SN# USA-6146848/Aus-8075602/Bel-9362390/Can-7198592 & Below
    NUT, (#10-32) Brass
    SN# USA-6146848/Aus-8075602/Bel-9362390/Can-7198592 & Below
  • 13
    11-26419 NUT, (#8-32) Brass
    SN# USA-6146849/Bel-9362391/Can-7198593 & Up
    NUT, (#8-32) Brass
    SN# USA-6146849/Bel-9362391/Can-7198593 & Up
  • 14
    11-21908 NUT, (.312-18) Cad Plated
    SN# USA-6146848/Aus-8075602/Bel-9362390/Can-7198592 & Below
    NUT, (.312-18) Cad Plated
    SN# USA-6146848/Aus-8075602/Bel-9362390/Can-7198592 & Below
  • 14
    11-94330 NUT, (.250-20) Brass
    SN# USA-6146849/Bel-9362391/Can-7198593 & Up
    NUT, (.250-20) Brass
    SN# USA-6146849/Bel-9362391/Can-7198593 & Up
  • 15
    10-98253 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 16
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 17
    85-97861 INSULATOR, STARTER SOLENOID
    INSULATOR, STARTER SOLENOID
  • 18
    84-96277A4 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 19
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 20
    84-95084A2 CABLE ASSEMBLY, FUSE
    CABLE ASSEMBLY, FUSE
  • 21
    88751 CLAMP, WIRING HARNESS
    CLAMP, WIRING HARNESS
  • 22
    24-28357 SPRING, WIRING HARNESS
    SPRING, WIRING HARNESS
  • 23
    10-23702 SCREW, (.190-32 x 1.12), WIRING HARNESS CLAMP
    SCREW, (.190-32 x 1.12), WIRING HARNESS CLAMP
  • 24
    12-72761 WASHER, (.203 x .562 x .060) Stainless Steel
    WASHER, (.203 x .562 x .060) Stainless Steel
  • 25
    84-88439A3 CABLE ASSEMBLY, Positive - Battery
    CABLE ASSEMBLY, Positive - Battery
  • 25
    84-88439A4 CABLE ASSEMBLY, Battery - Negative
    CABLE ASSEMBLY, Battery - Negative
