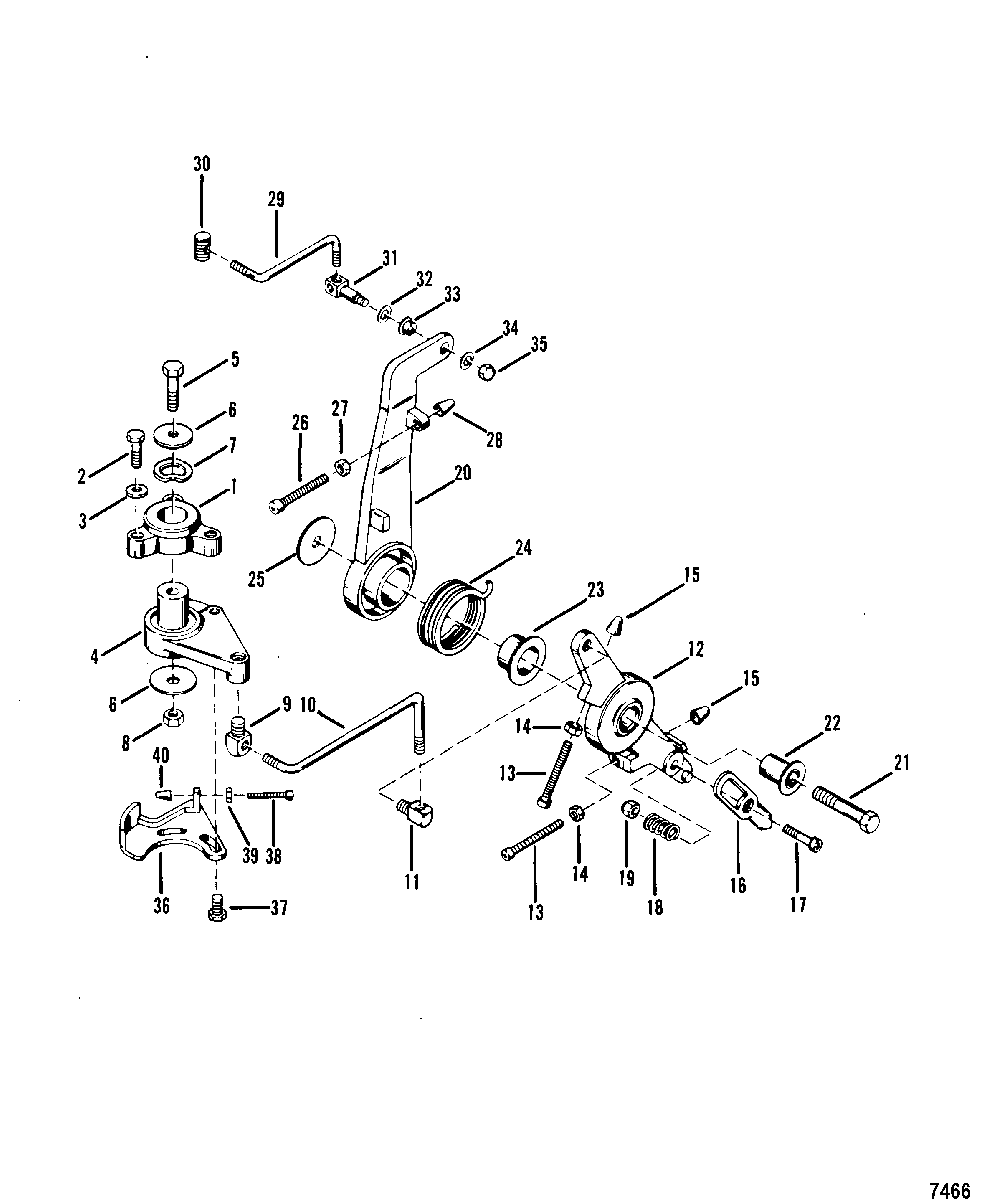

Throttle Control Linkage для Mercury - 45 (4 CYL.) 5531630 THRU 0B110788

  • №
    Артикул
    Название
  • 1
    72040T BRACKET, Throttle Actuator
    BRACKET, Throttle Actuator
  • 2
    10-53576 SCREW, (.312-18 x 1.125), Throttle Actuator Bracket
    (1.125 Inch)
    SCREW, (.312-18 x 1.125), Throttle Actuator Bracket
    (1.125 Inch)
  • 3
    13-26993 LOCKWASHER, (.312), Throttle Actuator Bracket Screw
    LOCKWASHER, (.312), Throttle Actuator Bracket Screw
  • 4
    815603A1 ACTUATOR, Throttle
    ACTUATOR, Throttle
  • 5
    10-21449 SCREW, (.312-24 x 2.00), Bracket to Throttle Actuator
    SCREW, (.312-24 x 2.00), Bracket to Throttle Actuator
  • 6
    12-25893 WASHER, Bracket Screw
    WASHER, Bracket Screw
  • 7
    13-62172 WAVE WASHER, Bracket Screw
    WAVE WASHER, Bracket Screw
  • 8
    11-29250 NUT, (.312-24), Bracket Screw
    NUT, (.312-24), Bracket Screw
  • 9
    57440 SWIVEL, Link Rod to Throttle Actuator
    SWIVEL, Link Rod to Throttle Actuator
  • 10
    72043 LINK ROD
    LINK ROD
  • 11
    57440 SWIVEL, Link Rod to Throttle Arm
    SWIVEL, Link Rod to Throttle Arm
  • 12
    815603A1 ARM, Throttle
    ARM, Throttle
  • 13
    10-89778 SCREW, Adjusting - Throttle Arm
    (2.25 Inch)
    SCREW, Adjusting - Throttle Arm
    (2.25 Inch)
  • 13
    10-25158 SCREW, (.190-32 x 1.75), Adjusting - Throttle Arm
    SCREW, (.190-32 x 1.75), Adjusting - Throttle Arm
  • 14
    11-68219 NUT, (#10-32) Stainless Steel, Adjusting Screw
    NUT, (#10-32) Stainless Steel, Adjusting Screw
  • 15
    48039 CAP, Adjusting Screw
    CAP, Adjusting Screw
  • 16
    39483 LATCH, Throttle Arm
    LATCH, Throttle Arm
  • 17
    10-69026 SCREW, (.250-28 x .880), Latch to Throttle Arm
    SCREW, (.250-28 x .880), Latch to Throttle Arm
  • 18
    24-20099 SPRING, Compression - Latch Screw
    SPRING, Compression - Latch Screw
  • 19
    11-826709109 NUT, (.250-28), Latch Screw
    NUT, (.250-28), Latch Screw
  • 20
    815607A1 LEVER, Spark Advance
    LEVER, Spark Advance
  • 21
    10-818165 SCREW, (.375-16 x 1.75), Lever and Arm to Cylinder Block
    (1.75 Inch)
    SCREW, (.375-16 x 1.75), Lever and Arm to Cylinder Block
    (1.75 Inch)
  • 22
    23-55164 BUSHING, Lever and Arm Screw
    BUSHING, Lever and Arm Screw
  • 23
    23-55171 BUSHING, Lever and Arm Screw
    BUSHING, Lever and Arm Screw
  • 24
    24-55162 SPRING, Return - Spark Advance Lever
    SPRING, Return - Spark Advance Lever
  • 25
    12-46765 WASHER, Lever and Arm Screw
    WASHER, Lever and Arm Screw
  • 26
    10-25158 SCREW, (.190-32 x 1.75), Adjusting - Spark Advance Lever
    SCREW, (.190-32 x 1.75), Adjusting - Spark Advance Lever
  • 27
    11-68219 NUT, (#10-32) Stainless Steel, Adjusting Screw
    NUT, (#10-32) Stainless Steel, Adjusting Screw
  • 28
    48039 CAP, Adjusting Screw
    CAP, Adjusting Screw
  • 29
    76056 LINK ROD, Spark Advance
    (2.50 Inch Long)
    LINK ROD, Spark Advance
    (2.50 Inch Long)
  • 30
    74897T PIVOT, Threaded - Link Rod to Trigger
    PIVOT, Threaded - Link Rod to Trigger
  • 31
    77013A1 SWIVEL, Link Rod to Spark Advance Lever
    SWIVEL, Link Rod to Spark Advance Lever
  • 32
    13-29402 WAVE WASHER, Swivel
    WAVE WASHER, Swivel
  • 33
    23-26856 BUSHING, Link Rod Swivel
    BUSHING, Link Rod Swivel
  • 34
    12-73288 WASHER, Link Rod Swivel
    WASHER, Link Rod Swivel
  • 35
    11-45774 NUT, Link Rod Swivel
    NUT, Link Rod Swivel
  • 36
    66778T PLATE, Throttle Actuator
    PLATE, Throttle Actuator
  • 37
    10-46420 SCREW, (#10-24 x .500), Plate to Throttle Actuator
    (.50 Inch Length)
    SCREW, (#10-24 x .500), Plate to Throttle Actuator
    (.50 Inch Length)
  • 38
    10-23015 SCREW, (.190-32 x 1.00), Adjusting - Plate
    SCREW, (.190-32 x 1.00), Adjusting - Plate
  • 39
    11-68219 NUT, (#10-32) Stainless Steel, Adjusting Screw
    NUT, (#10-32) Stainless Steel, Adjusting Screw
  • 40
    48039 CAP, Adjusting Screw
    CAP, Adjusting Screw
