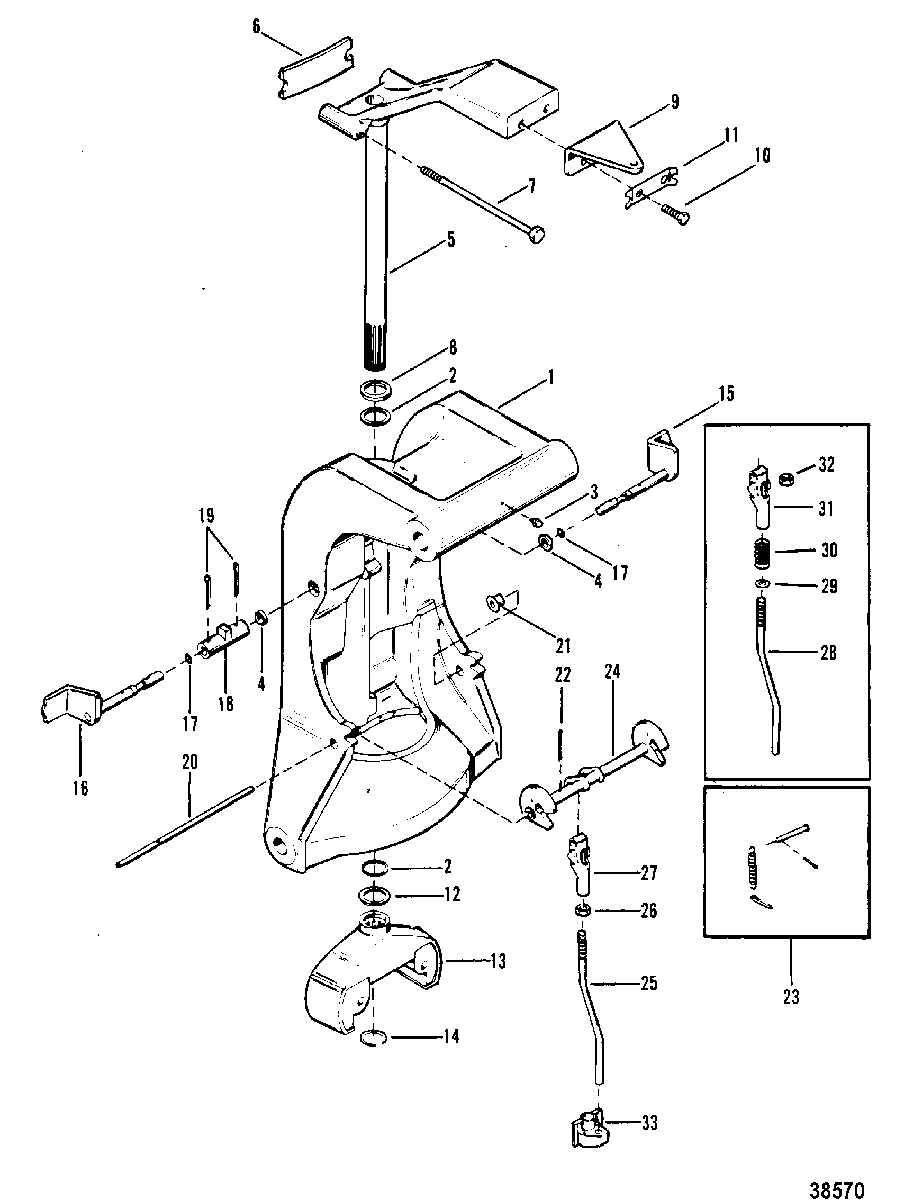

SWIVEL BRACKET AND REVERSE LOCK для Mercury - 45 (4 CYL.) 5531630 THRU 0B110788

  • №
    Артикул
    Название
  • 1
    1489-8597A4 SWIVEL BRACKET (SHORT SHAFT)
    SWIVEL BRACKET (SHORT SHAFT)
  • 1
    1490-8599A6 SWIVEL BRACKET (LONG SHAFT)
    SWIVEL BRACKET (LONG SHAFT)
  • 2
    26-32911 SEAL, Oil, SWIVEL BRACKET
    SEAL, Oil, SWIVEL BRACKET
  • 3
    22-74036 FITTING, Grease
    FITTING, Grease
  • 4
    26-22734 SEAL, Oil, SWIVEL BRACKET
    SEAL, Oil, SWIVEL BRACKET
  • 5
    88798A23 SWIVEL PIN ASSEMBLY (SHORT SHAFT) - MANUAL
    SWIVEL PIN ASSEMBLY (SHORT SHAFT) - MANUAL
  • 5
    88798A24 SWIVEL PIN ASSEMBLY (LONG SHAFT) - MANUAL
    SWIVEL PIN ASSEMBLY (LONG SHAFT) - MANUAL
  • 5
    69540A3 SWIVEL PIN ASSEMBLY (SHORT SHAFT) - ELECTRIC
    SWIVEL PIN ASSEMBLY (SHORT SHAFT) - ELECTRIC
  • 5
    69540A4 SWIVEL PIN ASSEMBLY (LONG SHAFT ) - ELECTRIC
    SWIVEL PIN ASSEMBLY (LONG SHAFT ) - ELECTRIC
  • 6
    30711 BUMPER, STEERING ARM
    BUMPER, STEERING ARM
  • 7
    10-66897 BOLT, (.437-20 x 5.250)
    BOLT, (.437-20 x 5.250)
  • 8
    12-47606 WASHER, SWIVEL PIN - LOWER
    WASHER, SWIVEL PIN - LOWER
  • 9
    76535T BRACKET, RIDE-GUIDE
    MANUAL W/O TILLER HANDLE
    BRACKET, RIDE-GUIDE
    MANUAL W/O TILLER HANDLE
  • 10
    10-34352 SCREW, (.375-24 x .875)
    MANUAL W/O TILLER HANDLE
    SCREW, (.375-24 x .875)
    MANUAL W/O TILLER HANDLE
  • 11
    76533 STRAP, BRACKET SCREW
    MANUAL W/O TILLER HANDLE
    STRAP, BRACKET SCREW
    MANUAL W/O TILLER HANDLE
  • 12
    12-25176 WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)
    WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)
  • 13
    77416T1 YOKE, Bottom
    YOKE, Bottom
  • 14
    53-77415 RETAINING RING, BOTTOM YOKE
    RETAINING RING, BOTTOM YOKE
  • 15
    76386 TILT LOCK ASSEMBLY, STARBOARD
    SN# USA-6275322/Bel-9371690/Can-7201337 & Below
    TILT LOCK ASSEMBLY, STARBOARD
    SN# USA-6275322/Bel-9371690/Can-7201337 & Below
  • 16
    76385T TILT LOCK ASSEMBLY, PORT
    SN# USA-6275322/Bel-9371690/Can-7201337 & Below
    TILT LOCK ASSEMBLY, PORT
    SN# USA-6275322/Bel-9371690/Can-7201337 & Below
  • 15/16
    89105 TILT LOCK, STARBOARD/PORT
    SN# USA-6275323/Bel-9371691/Can-7201338 & Up
    TILT LOCK, STARBOARD/PORT
    SN# USA-6275323/Bel-9371691/Can-7201338 & Up
  • 15/16
    99431A1 TILT LOCK (ELECTRIC TILLER HANDLE MODELS)
    TILT LOCK (ELECTRIC TILLER HANDLE MODELS)
  • 17
    25-627021 O-RING, (.301 x .070), TILT LOCK
    O-RING, (.301 x .070), TILT LOCK
  • 18
    79659 COUPLING, TILT LOCK
    COUPLING, TILT LOCK
  • 19
    18-47959 COTTER PIN, TILT LOCK TUBE
    COTTER PIN, TILT LOCK TUBE
  • 20
    56349 SHAFT, REVERSE LOCK PIVOT
    SHAFT, REVERSE LOCK PIVOT
  • 21
    23-69132 BUSHING, RVERSE PIVOT SHAFT
    BUSHING, RVERSE PIVOT SHAFT
  • 22
    18-45882 COTTER PIN, REVERSE LOCK TO SHAFT
    COTTER PIN, REVERSE LOCK TO SHAFT
  • 23
    24-78203A2 SPRING, REVERSE LOCK TENSION
    SPRING, REVERSE LOCK TENSION
  • 24
    87432 LOCK ASSEMBLY, Reverse
    SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & Below
    LOCK ASSEMBLY, Reverse
    SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & Below
  • 24
    14664A3 LOCK ASSEMBLY, Reverse
    SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & Up
    LOCK ASSEMBLY, Reverse
    SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & Up
  • 25
    47835 PUSH ROD, REVERSE LOCK (SHORT SHAFT)
    SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & Below
    PUSH ROD, REVERSE LOCK (SHORT SHAFT)
    SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & Below
  • 25
    47836 PUSH ROD, REVERSE LOCK (LONG SHAFT)
    SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & Below
    PUSH ROD, REVERSE LOCK (LONG SHAFT)
    SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & Below
  • 25
    43415A2 PUSH ROD ASSEMBLY, REVERSE LOCK (SHORT SHAFT)
    SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & Up
    PUSH ROD ASSEMBLY, REVERSE LOCK (SHORT SHAFT)
    SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & Up
  • 25
    43416A2 PUSH ROD ASSEMBLY, REVERSE LOCK (LONG SHAFT)
    SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & Up
    PUSH ROD ASSEMBLY, REVERSE LOCK (LONG SHAFT)
    SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & Up
  • 26
    11-28770 NUT, (.312-24) Stainless Steel, PUSH ROD
    SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & Below
    NUT, (.312-24) Stainless Steel, PUSH ROD
    SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & Below
  • 26
    11-28770 NUT, (.312-24) Stainless Steel, PUSH ROD
    SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & Up
    NUT, (.312-24) Stainless Steel, PUSH ROD
    SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & Up
  • 27
    47837 ROD END, PUSH ROD
    SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & Below
    ROD END, PUSH ROD
    SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & Below
  • 27
    89813 ROD END, PUSH ROD
    SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & Up
    ROD END, PUSH ROD
    SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & Up
  • 28
    43415 PUSH ROD, REVERSE LOCK (SHORT SHAFT)
    LATER MODELS
    PUSH ROD, REVERSE LOCK (SHORT SHAFT)
    LATER MODELS
  • 28
    43416 PUSH ROD, REVERSE LOCK (LONG SHAFT)
    LATER MODELS
    PUSH ROD, REVERSE LOCK (LONG SHAFT)
    LATER MODELS
  • 29
    12-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel, PUSH ROD - LATER MODELS
    WASHER, (.323 x .563 x .063) Stainless Steel, PUSH ROD - LATER MODELS
  • 30
    24-44297 SPRING, PUSH ROD - LATER MODELS
    SPRING, PUSH ROD - LATER MODELS
  • 31
    89813 ROD END, PUSH ROD - LATER MODELS
    ROD END, PUSH ROD - LATER MODELS
  • 32
    11-82670911 NUT, (.312-24) Stainless Steel, PUSH ROD - LATER MODELS
    NUT, (.312-24) Stainless Steel, PUSH ROD - LATER MODELS
  • 33
    933361 GUIDE, PUSH ROD
    GUIDE, PUSH ROD
  • -
    27-72486A32 GASKET SET
    GASKET SET
