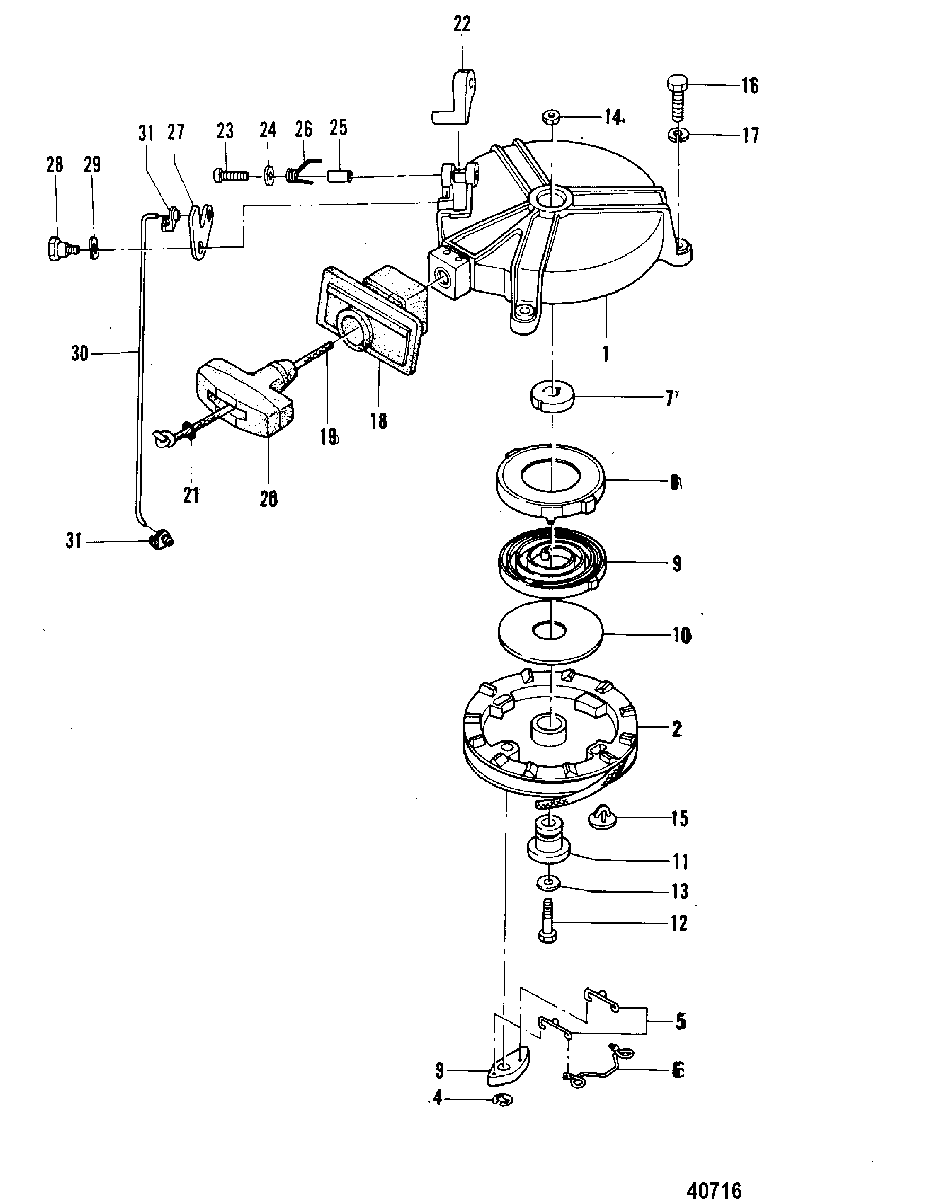

RECOIL STARTER, S#USA-A834680/Belgium-9542670 and Below для Mercury - 4/5 (1 CYL. PRODUCT OF JAPAN) 0A809601 THRU 0A855096

  • №
    Артикул
    Название
  • 1
    803576T02 HOUSING, Starter
    HOUSING, Starter
  • 2
    16095 SHEAVE, Starter
    SHEAVE, Starter
  • 3
    16096 PAWL, STARTER SHEAVE
    PAWL, STARTER SHEAVE
  • 4
    53-16097 E RING, PAWL
    E RING, PAWL
  • 5
    24-16098 SPRING, Guide, PAWL
    SPRING, Guide, PAWL
  • 6
    24-16099 SPRING, PAWL
    SPRING, PAWL
  • 7
    16100 GUIDE PLATE, SPRING
    GUIDE PLATE, SPRING
  • 8
    16101 HOUSING, STARTER SPRING
    HOUSING, STARTER SPRING
  • 9
    24-812645T SPRING, Starter
    SPRING, Starter
  • 10
    16103 PLATE, STARTER SPRING
    PLATE, STARTER SPRING
  • 11
    16104 SHAFT, Starter
    SHAFT, Starter
  • 12
    10-16105 BOLT, STARTER SHAFT
    BOLT, STARTER SHAFT
  • 13
    12-16106 WASHER, STARTER SHAFT BOLT
    WASHER, STARTER SHAFT BOLT
  • 14
    11-400212 NUT, STARTER SHAFT BOLT
    NUT, STARTER SHAFT BOLT
  • 15
    19-16111 PLUG, STARTER SHEAVE
    PLUG, STARTER SHEAVE
  • 16
    10-4000330 BOLT, Stainless Steel, STARTER HOUSING
    BOLT, Stainless Steel, STARTER HOUSING
  • 17
    13-400256 LOCKWASHER, STARTER HOUSING BOLT
    LOCKWASHER, STARTER HOUSING BOLT
  • 18
    161101 PLATE, STARTER
    PLATE, STARTER
  • 19
    50-16108 ROPE, Starter
    ROPE, Starter
  • 20
    95249 HANDLE, Starter
    HANDLE, Starter
  • 21
    25-16109 O-RING, STARTER ROPE
    O-RING, STARTER ROPE
  • 22
    17634 LOCK, Starter
    LOCK, Starter
  • 23
    10-17635 SCREW, STARTER LOCK
    SCREW, STARTER LOCK
  • 24
    12-16335 WASHER, STARTER LOCK SCREW
    WASHER, STARTER LOCK SCREW
  • 25
    23-895130 COLLAR, STARTER LOCK
    COLLAR, STARTER LOCK
  • 26
    24-812645007 SPRING, STARTER LOCK
    SPRING, STARTER LOCK
  • 27
    812643 CAM, STARTER LOCK
    CAM, STARTER LOCK
  • 28
    10-17640 SHOULDER SCREW, CAM
    SHOULDER SCREW, CAM
  • 29
    13-17641 WAVE WASHER, SHOULDER SCREW
    WAVE WASHER, SHOULDER SCREW
  • 30
    17642001 ROD, STARTER LOCK
    ROD, STARTER LOCK
  • 31
    176431 SNAP, Link Rod
    SNAP, Link Rod
