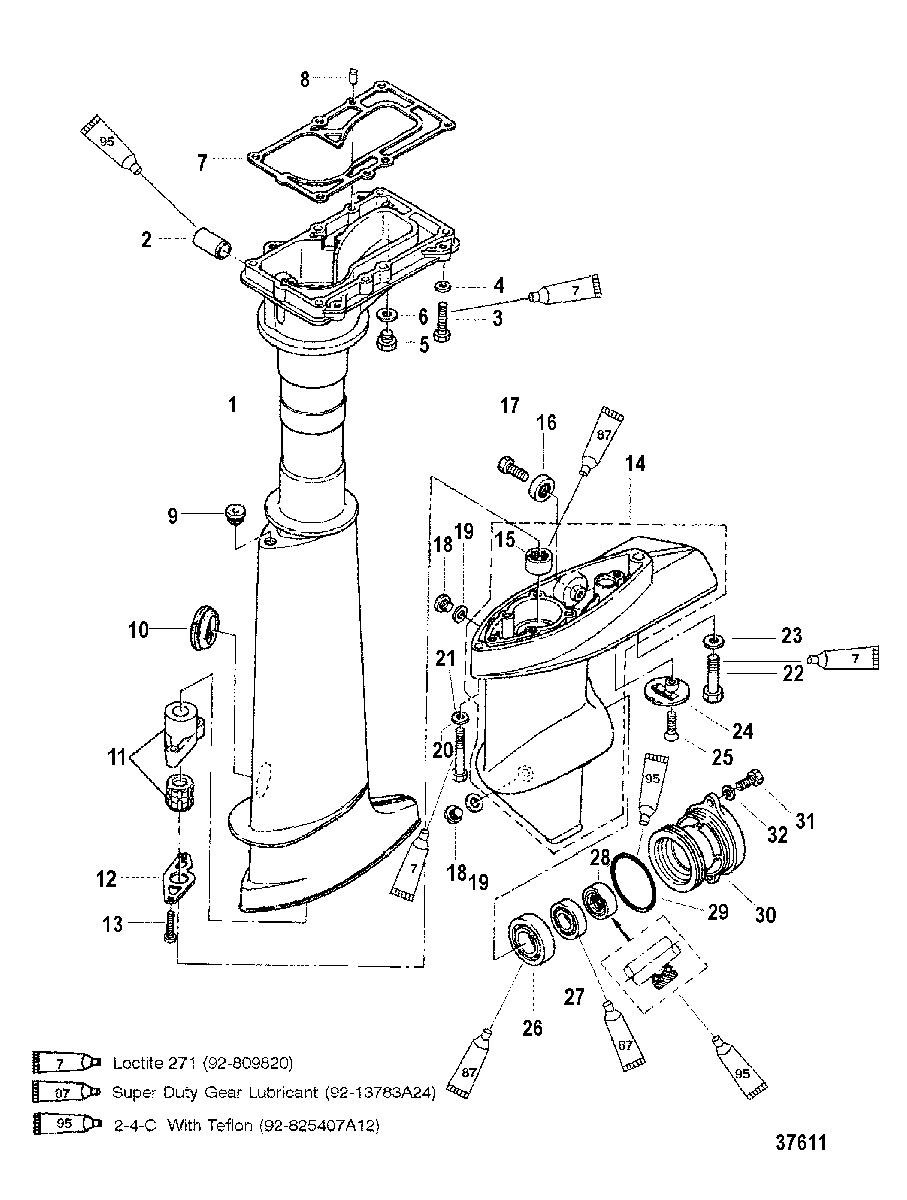

DRIVESHAFT HOUSING/GEAR HOUSING для Mercury - 4/5 (1 CYL. PRODUCT OF JAPAN) 0A809601 THRU 0A855096

  • №
    Артикул
    Название
  • 1
    1599-825134A1 HOUSING, Driveshaft
    (SHORT) SN# USA-A838181/Belgium-9542671 & Up
    HOUSING, Driveshaft
    (SHORT) SN# USA-A838181/Belgium-9542671 & Up
  • 1
    1500-8M0089106 HOUSING, Driveshaft
    (LONG) SN# USA-A838181/Belgium-9542671 & Up
    HOUSING, Driveshaft
    (LONG) SN# USA-A838181/Belgium-9542671 & Up
  • 1
    1599-825134A1 HOUSING, Driveshaft
    (SHORT) SN# USA-A838180/Belgium-9542670 & Below
    HOUSING, Driveshaft
    (SHORT) SN# USA-A838180/Belgium-9542670 & Below
  • 1
    1500-8M0089106 HOUSING, Driveshaft
    (LONG) SN# USA-A838180/Belgium-9542670 & Below
    HOUSING, Driveshaft
    (LONG) SN# USA-A838180/Belgium-9542670 & Below
  • 2
    23-16114 BUSHING, SHIFT LEVER
    BUSHING, SHIFT LEVER
  • 3
    10-8M0124428 BOLT, DRIVESHAFT HOUSING
    BOLT, DRIVESHAFT HOUSING
  • 4
    12-16826 WASHER, Stainless Steel, DRIVESHAFT HOUSING BOLT
    WASHER, Stainless Steel, DRIVESHAFT HOUSING BOLT
  • 5
    19-879194296 PLUG, Water
    PLUG, Water
  • 6
    8M0082880 GASKET, WATER PLUG
    GASKET, WATER PLUG
  • 7
    27-812947001 GASKET, DRIVESHAFTG HOUSING
    GASKET, DRIVESHAFTG HOUSING
  • 8
    17-16119 PIN, Dowel, DRIVESHAFT HOUSING
    PIN, Dowel, DRIVESHAFT HOUSING
  • 9
    25-161181 GROMMET, CAM ROD
    GROMMET, CAM ROD
  • 10
    25-16117 GROMMET, DRIVESHAFT HOUSING
    GROMMET, DRIVESHAFT HOUSING
  • 11
    827663A1 BUSHING, DRIVESHAFT
    (LONG)
    BUSHING, DRIVESHAFT
    (LONG)
  • 12
    16121 RETAINER, DRIVESHAFT BUSHING
    RETAINER, DRIVESHAFT BUSHING
  • 13
    10-823042067 SCREW
    (SHORT)
    SCREW
    (SHORT)
  • 13
    10-16123 SCREW, (25 mm)
    (LONG)
    SCREW, (25 mm)
    (LONG)
  • 14
    1668-825132T30 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 14
    1668-9621T6 GEAR HOUSING ASSEMBLY
    (SAIL POWER)
    GEAR HOUSING ASSEMBLY
    (SAIL POWER)
  • 15
    23-16124 BUSHING, GEAR HOUSING
    BUSHING, GEAR HOUSING
  • 16
    97-823912 ANODE
    ANODE
  • 17
    10-16832 BOLT, (M6 x 16), ANODE
    BOLT, (M6 x 16), ANODE
  • 18
    22-953683 PLUG, OIL
    PLUG, OIL
  • 19
    8M0082880 GASKET, OIL PLUG
    GASKET, OIL PLUG
  • 20
    10-16125 BOLT, GEAR HOUSING (FRONT)
    BOLT, GEAR HOUSING (FRONT)
  • 21
    12-16826 WASHER, Stainless Steel, GEAR HOUSING BOLT
    WASHER, Stainless Steel, GEAR HOUSING BOLT
  • 22
    10-16126 BOLT, GEAR HOUSING (REAR)
    BOLT, GEAR HOUSING (REAR)
  • 23
    12-16192 WASHER, REAR GEAR HOUSING BOLT
    WASHER, REAR GEAR HOUSING BOLT
  • 24
    16133 STRAINER, Water
    STRAINER, Water
  • 25
    10-16134 SCREW, WATER STRAINER
    SCREW, WATER STRAINER
  • 26
    30-16128 BEARING, Ball, BEVEL GEAR
    BEARING, Ball, BEVEL GEAR
  • 27
    30-16132 BEARING, Ball, PROPELLER SHAFT
    BEARING, Ball, PROPELLER SHAFT
  • 28
    26-16130 SEAL, Oil, PROPELLER SHAFT
    SEAL, Oil, PROPELLER SHAFT
  • 29
    25-16131 O-RING, PROPELLER SHAFT HOUSING
    O-RING, PROPELLER SHAFT HOUSING
  • 30
    825118T HOUSING, PROPELLER SHAFT
    HOUSING, PROPELLER SHAFT
  • 31
    10-16832 BOLT, PROPELLER SHAFT
    BOLT, PROPELLER SHAFT
  • 32
    12-16826 WASHER, Stainless Steel, PROPELLER SHAFT BOLT
    WASHER, Stainless Steel, PROPELLER SHAFT BOLT
