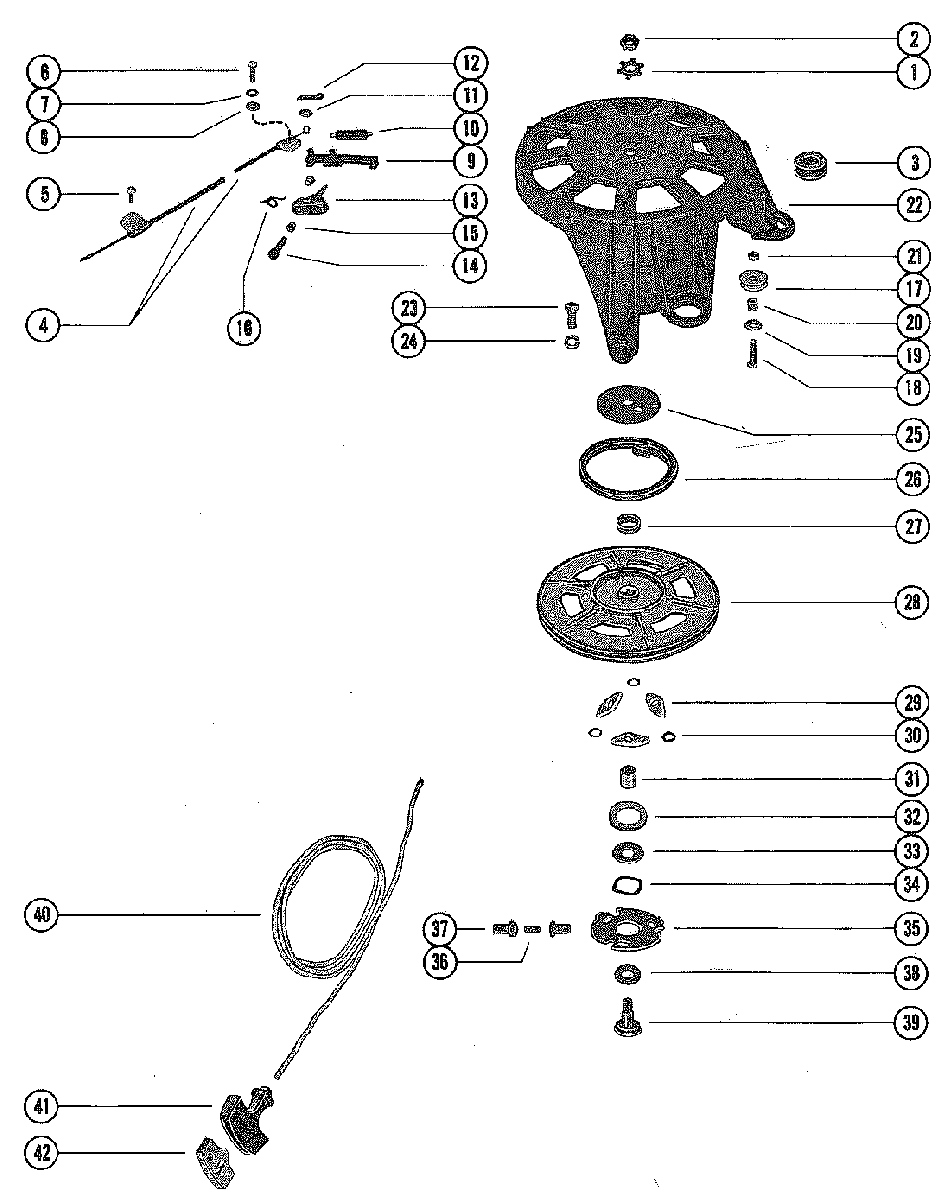

STARTER HOUSING для Mercury - 402 3336258 THRU 4117709

  • №
    Артикул
    Название
  • 1
    14-61004 TAB WASHER, SHEAVE SHAFT NUT
    TAB WASHER, SHEAVE SHAFT NUT
  • 2
    11-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)
    NUT, SHEAVE SHAFT (LEFT HAND THREAD)
  • 3
    25-39597 GROMMET, STARTER HOUSING
    GROMMET, STARTER HOUSING
  • 4
    70970 CABLE ASSEMBLY, INTERLOCK
    MANUAL
    CABLE ASSEMBLY, INTERLOCK
    MANUAL
  • 5
    10-32228 SCREW, INTERLOCK CABLE TO EXHAUST PLATE (5/8")
    MANUAL
    SCREW, INTERLOCK CABLE TO EXHAUST PLATE (5/8")
    MANUAL
  • 6
    10-69022 SCREW, INTERLOCK CABLE TO STARTER HOUSING (1/2")
    MANUAL
    SCREW, INTERLOCK CABLE TO STARTER HOUSING (1/2")
    MANUAL
  • 7
    13-27660 LOCKWASHER, INTERLOCK CABLE SCREW
    MANUAL
    LOCKWASHER, INTERLOCK CABLE SCREW
    MANUAL
  • 8
    12-26013 WASHER, INTERLOCK CABLE SCREW
    MANUAL
    WASHER, INTERLOCK CABLE SCREW
    MANUAL
  • 9
    57236 CAM, SLIDING - STARTER HOUSING
    MANUAL
    CAM, SLIDING - STARTER HOUSING
    MANUAL
  • 10
    24-70086 SPRING, SLIDING CAM
    MANUAL
    SPRING, SLIDING CAM
    MANUAL
  • 11
    12-37998 WASHER, INTERLOCK CABLE
    MANUAL
    WASHER, INTERLOCK CABLE
    MANUAL
  • 12
    18-26953 COTTER PIN, INTERLOCK CABLE TO SLIDING CAM
    MANUAL
    COTTER PIN, INTERLOCK CABLE TO SLIDING CAM
    MANUAL
  • 13
    65757A1 TOGGLE, STARTER INTERLOCK
    MANUAL UNITED STATES 3859434 AND BELOW
    AUSTRALIA 8016689 AND BELOW
    BELGIUM 9051458 AND BELOW
    CANADA 7006601 AND BELOW
    TOGGLE, STARTER INTERLOCK
    MANUAL UNITED STATES 3859434 AND BELOW
    AUSTRALIA 8016689 AND BELOW
    BELGIUM 9051458 AND BELOW
    CANADA 7006601 AND BELOW
  • 13
    65757A1 TOGGLE ASSEMBLY, STARTER INTERLOCK
    MANUAL UNITED STATES 3859435 AND UP
    AUSTRALIA 8016690 AND UP
    BELGIUM 9051459 AND UP
    CANADA 7032138 AND UP
    TOGGLE ASSEMBLY, STARTER INTERLOCK
    MANUAL UNITED STATES 3859435 AND UP
    AUSTRALIA 8016690 AND UP
    BELGIUM 9051459 AND UP
    CANADA 7032138 AND UP
  • 14
    10-57249 SCREW, TOGGLE TO STARTER HOUSING
    MANUAL
    SCREW, TOGGLE TO STARTER HOUSING
    MANUAL
  • 15
    23-26856 BUSHING, TOGGLE SCREW
    MANUAL
    BUSHING, TOGGLE SCREW
    MANUAL
  • 16
    24-57279 SPRING, TOGGLE SCREW
    MANUAL
    SPRING, TOGGLE SCREW
    MANUAL
  • 17
    55860 PULLEY, STARTER SCREW
    PULLEY, STARTER SCREW
  • 18
    10-45210 SCREW, PULLEY TO STARTER HOUSING (1 1/4")
    SCREW, PULLEY TO STARTER HOUSING (1 1/4")
  • 19
    12-22887 WASHER, PULLEY SCREW
    WASHER, PULLEY SCREW
  • 20
    23-309772 SPACER, PULLEY SCREW
    SPACER, PULLEY SCREW
  • 21
    11-24656 NUT, PULLEY SCREW
    NUT, PULLEY SCREW
  • 22
    76079A8 HOUSING, STARTER
    HOUSING, STARTER
  • 23
    10-37562 SCREW, STARTER HOUSING TO CRANKCASE (1")
    SCREW, STARTER HOUSING TO CRANKCASE (1")
  • 24
    13-26993 LOCKWASHER, STARTER HOUSING SCREW
    LOCKWASHER, STARTER HOUSING SCREW
  • 25
    61002 RETAINER, STARTER REWIND
    RETAINER, STARTER REWIND
  • 26
    24-39502T02 SPRING, STARTER REWIND
    SPRING, STARTER REWIND
  • 27
    23-63100 BUSHING, SPRING GUIDE
    BUSHING, SPRING GUIDE
  • 28
    76053A1 STARTER SHEAVE ASSEMBLY
    UNITED STATES 3859434 AND BELOW
    AUSTRALIA 8016689 AND BELOW
    BELGIUM 9051458 AND BELOW
    CANADA 7006601 AND BELOW
    STARTER SHEAVE ASSEMBLY
    UNITED STATES 3859434 AND BELOW
    AUSTRALIA 8016689 AND BELOW
    BELGIUM 9051458 AND BELOW
    CANADA 7006601 AND BELOW
  • 28
    76053A1 STARTER SHEAVE ASSEMBLY
    UNITED STATES 3859435 AND UP
    AUSTRALIA 8016690 AND UP
    BELGIUM 9051459 AND UP
    CANADA 7032138 AND UP
    STARTER SHEAVE ASSEMBLY
    UNITED STATES 3859435 AND UP
    AUSTRALIA 8016690 AND UP
    BELGIUM 9051459 AND UP
    CANADA 7032138 AND UP
  • 29
    30596 PAWL, STARTER
    PAWL, STARTER
  • 30
    13-36206 WASHER, WAVE - STARTER PAWL
    WASHER, WAVE - STARTER PAWL
  • 31
    23-63061 SPACER, SHEAVE SHAFT
    SPACER, SHEAVE SHAFT
  • 32
    39840 RETAINER, WAVE WASHER
    RETAINER, WAVE WASHER
  • 33
    12-57837 WASHER, WAVE WASHER RETAINER
    WASHER, WAVE WASHER RETAINER
  • 34
    13-20160 WASHER, WAVE - RETAINER TENSION
    WASHER, WAVE - RETAINER TENSION
  • 35
    66845 PLATE, RETAINER - STARTER PAWL
    UNITED STATES 3859434 AND BELOW
    AUSTRALIA 8016689 AND BELOW
    BELGIUM 9051458 AND BELOW
    CANADA 7006601 AND BELOW
    PLATE, RETAINER - STARTER PAWL
    UNITED STATES 3859434 AND BELOW
    AUSTRALIA 8016689 AND BELOW
    BELGIUM 9051458 AND BELOW
    CANADA 7006601 AND BELOW
  • 36
    24-26068 SPRING, RETAINER PLATE TO STARTER SHEAVE
    UNITED STATES 3859434 AND BELOW
    AUSTRALIA 8016689 AND BELOW
    BELGIUM 9051458 AND BELOW
    CANADA 7006601 AND BELOW
    SPRING, RETAINER PLATE TO STARTER SHEAVE
    UNITED STATES 3859434 AND BELOW
    AUSTRALIA 8016689 AND BELOW
    BELGIUM 9051458 AND BELOW
    CANADA 7006601 AND BELOW
  • 35
    66845 PLATE, RETAINER - STARTER PAWL
    UNITED STATES 3859435 AND UP
    AUSTRALIA 8016690 AND UP
    BELGIUM 9051459 AND UP
    CANADA 7032138 AND UP
    PLATE, RETAINER - STARTER PAWL
    UNITED STATES 3859435 AND UP
    AUSTRALIA 8016690 AND UP
    BELGIUM 9051459 AND UP
    CANADA 7032138 AND UP
  • 36
    24-66853 SPRING, RETAINER PLATE TO STARTER SHEAVE
    UNITED STATES 3859435 AND UP
    AUSTRALIA 8016690 AND UP
    BELGIUM 9051459 AND UP
    CANADA 7032138 AND UP
    SPRING, RETAINER PLATE TO STARTER SHEAVE
    UNITED STATES 3859435 AND UP
    AUSTRALIA 8016690 AND UP
    BELGIUM 9051459 AND UP
    CANADA 7032138 AND UP
  • 37
    66848 RETAINER, SPRING
    RETAINER, SPRING
  • 38
    12-57860 WASHER, SHEAVE SHAFT
    WASHER, SHEAVE SHAFT
  • 39
    61003 SHAFT, SHEAVE
    SHAFT, SHEAVE
  • 40
    50-12066Q10 STARTER CABLE ASSEMBLY
    STARTER CABLE ASSEMBLY
  • 41
    30782 HANDLE, STARTER CABLE
    HANDLE, STARTER CABLE
  • 42
    79470A1 RETAINER, STARTER CABLE AND HANDLE
    RETAINER, STARTER CABLE AND HANDLE
