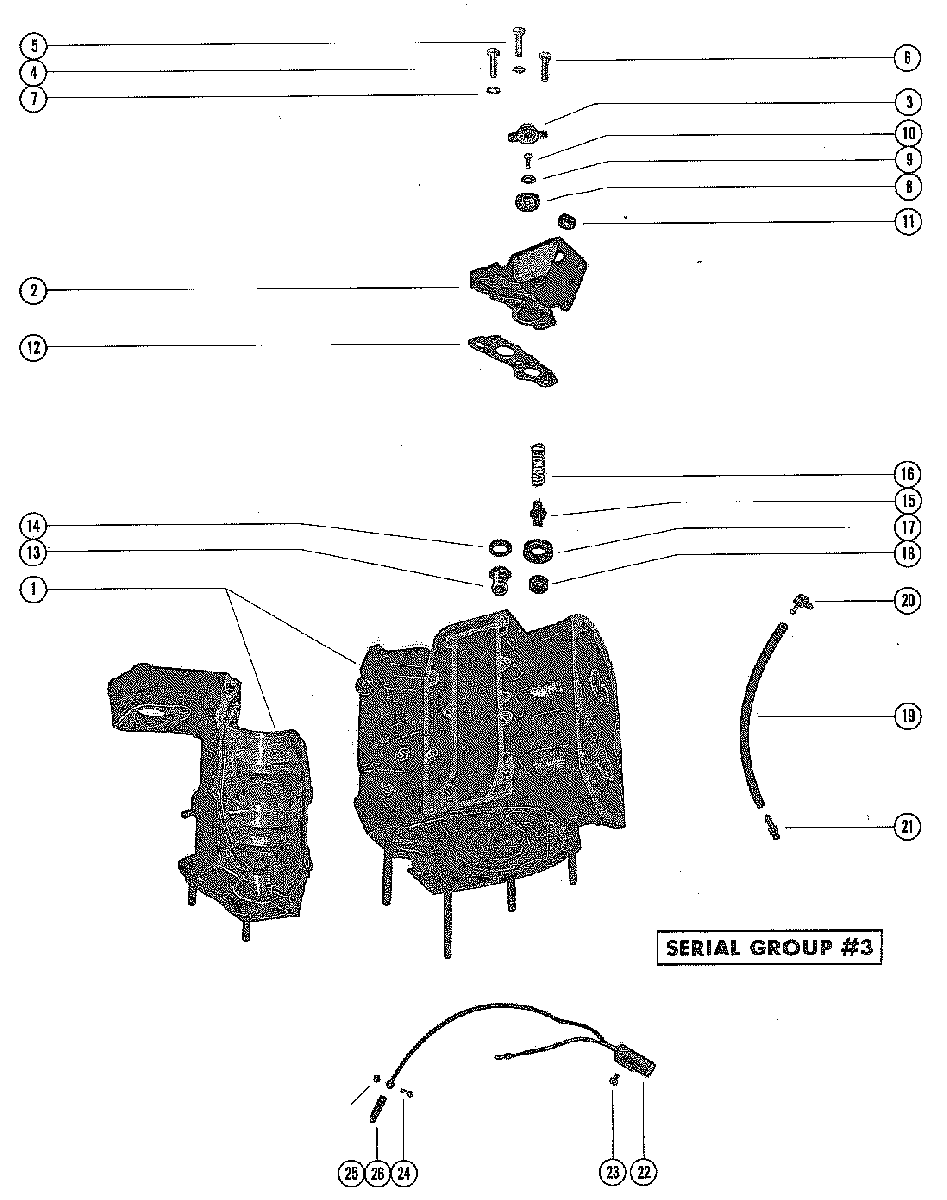

CYLINDER BLOCK AND COIL MOUNTING BRACKET (SERIAL GROUP #3) для Mercury - 402 3336258 THRU 4117709
-
№АртикулНазвание
-
1851-7940A6 CYLINDER BLOCK AND CRANKCASE ASS'YCYLINDER BLOCK AND CRANKCASE ASS'Y
-
266843T BRACKET, COIL MOUNTINGBRACKET, COIL MOUNTING
-
399436A1 COVER, DIAPHRAGMCOVER, DIAPHRAGM
-
410-31984 SCREW, COIL MOUNTING BRACKET TO BLOCK (1 3/8")SCREW, COIL MOUNTING BRACKET TO BLOCK (1 3/8")
-
510-37562 SCREW, STARTER BRACKET AND COVER TO COIL BRACKET (1")SCREW, STARTER BRACKET AND COVER TO COIL BRACKET (1")
-
610-58414 SCREW, COVER AND COIL BRACKET TO BLOCK (2 1/2")SCREW, COVER AND COIL BRACKET TO BLOCK (2 1/2")
-
713-26993 LOCKWASHER, COIL MOUNTING BRACKET SCREWLOCKWASHER, COIL MOUNTING BRACKET SCREW
-
8648771 DIAPHRAGM, POPPET VALVEDIAPHRAGM, POPPET VALVE
-
912-76451 WASHER, DIAPHRAGMWASHER, DIAPHRAGM
-
1010-45817 SCREW, WASHER AND DIAPHRAGM TO POPPET VALVESCREW, WASHER AND DIAPHRAGM TO POPPET VALVE
-
1125-39597 GROMMET, COIL MOUNTING BRACKETGROMMET, COIL MOUNTING BRACKET
-
1227-66847 GASKET, COIL MOUNTING BRACKET TO BLOCKGASKET, COIL MOUNTING BRACKET TO BLOCK
-
1375692 THERMOSTATTHERMOSTAT
-
1427-62386001 GASKET, THERMOSTATGASKET, THERMOSTAT
-
1564874 POPPET, RELIEF VALVEPOPPET, RELIEF VALVE
-
1624-66852 SPRING, COMPRESSION - POPPET RELIEF VALVESPRING, COMPRESSION - POPPET RELIEF VALVE
-
1765848 WASHER, POPPET VALVEWASHER, POPPET VALVE
-
1825-64872 GROMMET, POPPET VALVEGROMMET, POPPET VALVE
-
1932-9938779 HOSE, CYLINDER BLEED (8")HOSE, CYLINDER BLEED (8")
-
2021-64871A3 ELBOW ASSEMBLY, CYLINDER BLEEDELBOW ASSEMBLY, CYLINDER BLEED
-
2122-56759 FITTING, CYLINDERR BLEEDFITTING, CYLINDERR BLEED
-
2258124A17 SWITCH ASSEMBLY, MERCURYSWITCH ASSEMBLY, MERCURY
-
2310-48409 SCREW, MERCURY SWITCH TO EXHAUST COVER (5/8")SCREW, MERCURY SWITCH TO EXHAUST COVER (5/8")
-
2410-36046 SCREW, MERCURY SWITCH LEAD ATTACHINGSCREW, MERCURY SWITCH LEAD ATTACHING
-
2511-62590 NUT, MERCURY SWITCH LEAD SCREWNUT, MERCURY SWITCH LEAD SCREW
-
2685-640801 SLEEVE, MERCURY SWITCH LEAD SCREW (2")SLEEVE, MERCURY SWITCH LEAD SCREW (2")
