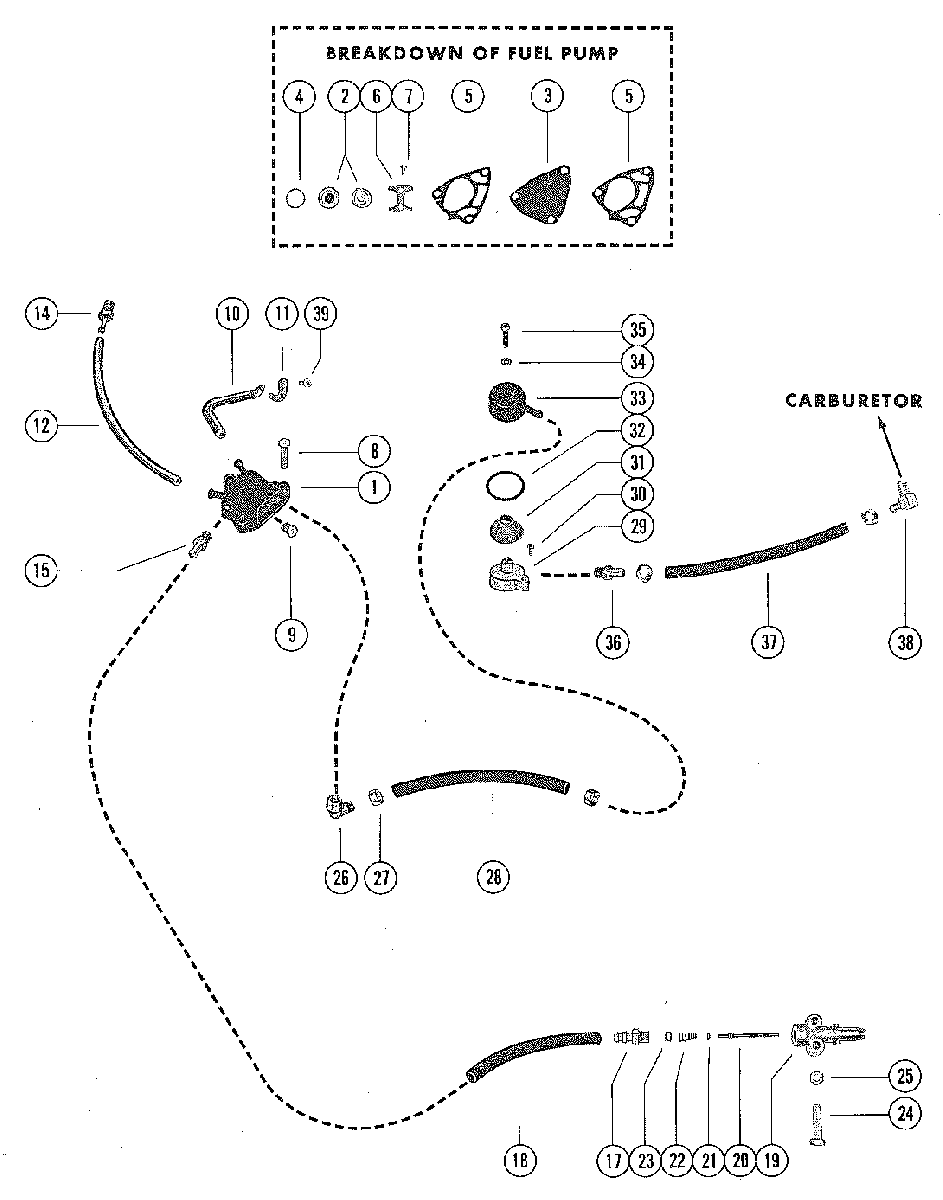

FUEL PUMP ASSEMBLY AND FUEL LINES для Mercury - 402, 40 (2 CYL.) 7112423 THRU 7144762
-
№АртикулНазвание
-
162973A4 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
221-30430A3 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
355278A1 DIAPHRAGM KITDIAPHRAGM KIT
-
490-8M0143356 GASKET, CHECK VALVE TO HOUSINGGASKET, CHECK VALVE TO HOUSING
-
590-8M0143356 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
623004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
710-43725 SCREW, RETAINER TO HOUSINGSCREW, RETAINER TO HOUSING
-
810-69093 SCREW, FUEL PUMP MOUNTING (1 1/2")SCREW, FUEL PUMP MOUNTING (1 1/2")
-
922-328022 PLUG, PIPE - FUEL PUMPPLUG, PIPE - FUEL PUMP
-
1069791A2 HOSE AND NOZZLE, TELL TALE
PART OF BOTTOM COWL ASSEMBLYHOSE AND NOZZLE, TELL TALE
PART OF BOTTOM COWL ASSEMBLY -
1166849 CLAMP, TELL TALE HOSE AND NOZZLE
PART OF BOTTOM COWL ASSEMBLYCLAMP, TELL TALE HOSE AND NOZZLE
PART OF BOTTOM COWL ASSEMBLY -
1232-8M0108355 HOSE ASSEMBLY, CYLINDER BLOCK TO FUEL PUMP
(11")HOSE ASSEMBLY, CYLINDER BLOCK TO FUEL PUMP
(11") -
1422-291112 FITTING, BLOCK TO FUEL PUMP HOSEFITTING, BLOCK TO FUEL PUMP HOSE
-
1522-64705 FITTING, PUMP INLETFITTING, PUMP INLET
-
1722-63187 FITTING, FUEL LINE TO ADAPTORFITTING, FUEL LINE TO ADAPTOR
-
1832-8M0108355 FUEL LINE, FUEL PUMP TO ADAPTOR (12 1/4")FUEL LINE, FUEL PUMP TO ADAPTOR (12 1/4")
-
1922833 ADAPTOR, CHECK UNIT (FUEL PUMP)ADAPTOR, CHECK UNIT (FUEL PUMP)
-
2023069 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
2125-16524 "O" RING, ADAPTOR STEM"O" RING, ADAPTOR STEM
-
2224-23067T SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
2330188 CUP WASHER, ADAPTORCUP WASHER, ADAPTOR
-
2410-56500 SCREW, ADAPTOR TO BOTTOM COWL (1 1/4")SCREW, ADAPTOR TO BOTTOM COWL (1 1/4")
-
2511-36069 NUT, ADAPTOR SCREWNUT, ADAPTOR SCREW
-
2622-19688 ELBOW, PUMP OUTLET (90)ELBOW, PUMP OUTLET (90)
-
2754-68424 CLAMP, FUEL LINE ATTACHINGCLAMP, FUEL LINE ATTACHING
-
2832-8M0108355 FUEL LINE, FUEL PUMP TO FILTER COVER (4 1/2")FUEL LINE, FUEL PUMP TO FILTER COVER (4 1/2")
-
2970929 BASE, FUEL PUMPBASE, FUEL PUMP
-
3010-71913 SCREW, BASE TO TRANSFER PORT COVERSCREW, BASE TO TRANSFER PORT COVER
-
3135-59072 SCREEN, FILTER - INLETSCREEN, FILTER - INLET
-
3225-35480 "O" RING, COVER TO HOUSING"O" RING, COVER TO HOUSING
-
3335-91078A1 COVER, FUEL INLETCOVER, FUEL INLET
-
3427-25848 GASKET, NYLON - FILTER COVER SCREWGASKET, NYLON - FILTER COVER SCREW
-
3510-37370 SCREW, COVER TO FUEL PUMP (5/8")SCREW, COVER TO FUEL PUMP (5/8")
-
3622-64705 FITTING, FILTER BASEFITTING, FILTER BASE
-
3732-8M0108355 FUEL LINE, FILTER COVER TO PUMP (6")FUEL LINE, FILTER COVER TO PUMP (6")
-
3822-19688 FITTING, ELBOW - CARBURETORFITTING, ELBOW - CARBURETOR
-
3910-48409 SCREW, CLAMP TO BOTTOM COWLSCREW, CLAMP TO BOTTOM COWL
