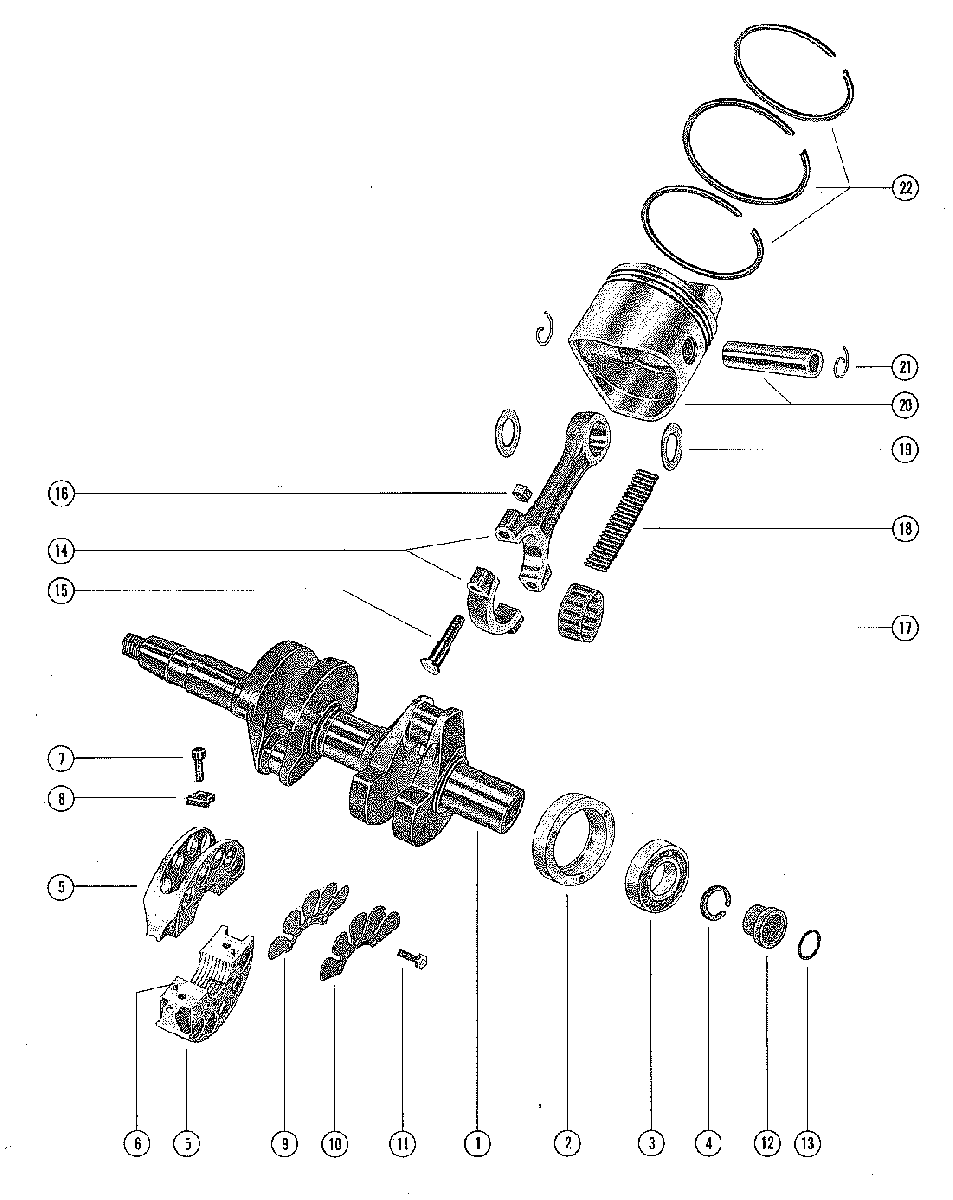

CRANKSHAFT, PISTON AND CONNECTING ROD ASSEMBLY для Mercury - 402, 40 (2 CYL.) 7112423 THRU 7144762
-
№АртикулНазвание
-
1454-9073A1 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
278308A1 RETAINER ASSEMBLY, BALL BEARINGRETAINER ASSEMBLY, BALL BEARING
-
330-63742T BALL BEARING, RETAINER (CRANKSHAFT)BALL BEARING, RETAINER (CRANKSHAFT)
-
453-63634 RETAINING RING, BALL BEARINGRETAINING RING, BALL BEARING
-
5540-7238A2 MAIN BEARING ASSEMBLY, VALVE TYPEMAIN BEARING ASSEMBLY, VALVE TYPE
-
610-22032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
710-45775 SCREW, MAIN BEARING CLAMPING (9/16")SCREW, MAIN BEARING CLAMPING (9/16")
-
811-45774 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
934-56007A1 REED SET, MAIN BEARING (MATCHED)REED SET, MAIN BEARING (MATCHED)
-
1034-56008 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
1110-20055 SCREW, REED STOP MOUNTING (3/8")SCREW, REED STOP MOUNTING (3/8")
-
1260834A3 CARRIER ASSEMBLY, SEAL
METAL SEAL CARRIER PRESSED IN CRANKSHAFT.CARRIER ASSEMBLY, SEAL
METAL SEAL CARRIER PRESSED IN CRANKSHAFT. -
1364254001 SEAL, CARRIER
METAL SEAL CARRIER PRESSED IN CRANKSHAFT.SEAL, CARRIER
METAL SEAL CARRIER PRESSED IN CRANKSHAFT. -
14624-8101A3 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1510-54803 SCREW, CONNECTING RODSCREW, CONNECTING ROD
-
1611-49091 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
1731-62596A1 BEARING, ASSEMBLY, CRANKPINBEARING, ASSEMBLY, CRANKPIN
-
1829-47270 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
1912-8M0032839 WASHER, NEEDLE BEARING RETAININGWASHER, NEEDLE BEARING RETAINING
-
20774-9137A12 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
2153-857196 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
2239-78816A12 RING, PISTONRING, PISTON
-
22774-9137A13 PISTON AND PISTON PIN ASSEMBLY (OVERSIZED)PISTON AND PISTON PIN ASSEMBLY (OVERSIZED)
-
2239-78811A12 RING, PISTON (.015 OVERSIZE)RING, PISTON (.015 OVERSIZE)
