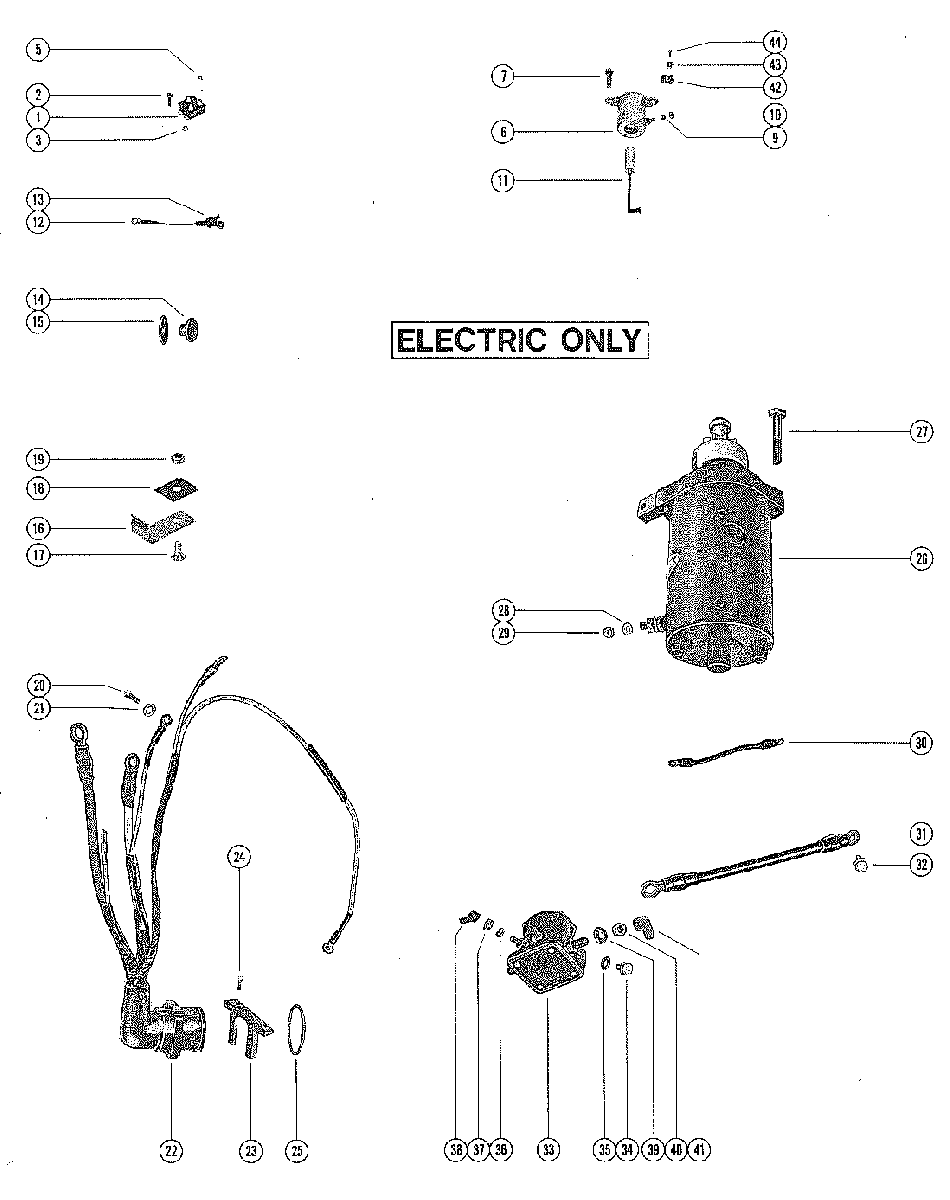

STARTER MOTOR, RECTIFIER AND WIRING HARNESS для Mercury - 402, 40 (2 CYL.) 4860103 THRU 5556229

  • №
    Артикул
    Название
  • 1
    8M0058226 RECTIFIER ASSEMBLY
    RECTIFIER ASSEMBLY
  • 2
    10-25764 SCREW, RECTIFIER TO FRONT SUPPORT BRACKET
    (1/2")
    SCREW, RECTIFIER TO FRONT SUPPORT BRACKET
    (1/2")
  • 3
    11-27164 NUT, RECTIFIER FASTENING SCREW
    NUT, RECTIFIER FASTENING SCREW
  • 5
    11-45076 NUT, RECTIFIER TERMINAL (10-32)
    NUT, RECTIFIER TERMINAL (10-32)
  • 6
    89-889274 CHOKE SOLENOID ASSEMBLY
    CHOKE SOLENOID ASSEMBLY
  • 7
    10-25299 SCREW
    CHOKE SOLENOID FRONT SUPPORT BRACKET (3/4")
    SCREW
    CHOKE SOLENOID FRONT SUPPORT BRACKET (3/4")
  • 9
    13-26996 LOCKWASHER, CHOKE SOLENOID TERMINAL
    LOCKWASHER, CHOKE SOLENOID TERMINAL
  • 10
    11-45076 NUT, CHOKE SOLENOID TERMINAL
    NUT, CHOKE SOLENOID TERMINAL
  • 11
    89008A2 PLUNGER ASSEMBLY, CHOKE SOLENOID
    PLUNGER ASSEMBLY, CHOKE SOLENOID
  • 12
    84-61393A1 LEAD ASSEMBLY
    RECTIFIER TO STARTER SOLENOID (4 7/8")
    LEAD ASSEMBLY
    RECTIFIER TO STARTER SOLENOID (4 7/8")
  • 13
    85-62453 BOOT, LEAD WIRE
    BOOT, LEAD WIRE
  • 14
    19-35827 PLUG, BOTTOM COWL
    PART OF BOTTOM COWL ASSEMBLY
    PLUG, BOTTOM COWL
    PART OF BOTTOM COWL ASSEMBLY
  • 15
    11-30428 FASTENER, PLUG TO BOTTOM COWL
    PART OF BOTTOM COWL ASSEMBLY
    FASTENER, PLUG TO BOTTOM COWL
    PART OF BOTTOM COWL ASSEMBLY
  • 16
    34228 SUPPORT, EXTERNAL WIRING HARNESS
    SUPPORT, EXTERNAL WIRING HARNESS
  • 17
    10-67917 SCREW, SUPPORT TO BOTTOM COWL (5/8")
    SCREW, SUPPORT TO BOTTOM COWL (5/8")
  • 18
    52907 INSULATOR, SUPPORT TO BOTTOM COWL
    INSULATOR, SUPPORT TO BOTTOM COWL
  • 19
    11-35888 NUT, SUPPORT FASTENING SCREW
    NUT, SUPPORT FASTENING SCREW
  • 20
    10-98256 SCREW
    WIRING HARNESS GROUND TO BOTTOM COWL (1/2")
    SCREW
    WIRING HARNESS GROUND TO BOTTOM COWL (1/2")
  • 21
    13-24669 LOCKWASHER, WIRING HARNESS GROUND SCREW
    LOCKWASHER, WIRING HARNESS GROUND SCREW
  • 22
    84-73826A1 WIRING HARNESS (INTERNAL)
    WIRING HARNESS (INTERNAL)
  • 23
    54-76368 CLAMP, WIRING HARNESS ATTACHING
    CLAMP, WIRING HARNESS ATTACHING
  • 24
    10-69013 SCREW
    WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")
    SCREW
    WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")
  • 25
    24-28975 SPRING, GARTER - INTERNAL WIRING HARNESS
    SPRING, GARTER - INTERNAL WIRING HARNESS
  • 26
    50-55601A2 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 27
    10-35213 SCREW, STARTER MOTOR TO CRANKCASE (1 5/8")
    SCREW, STARTER MOTOR TO CRANKCASE (1 5/8")
  • 28
    13-26993 LOCKWASHER, CABLE TO STARTER MOTOR NUT
    LOCKWASHER, CABLE TO STARTER MOTOR NUT
  • 29
    11-20890 NUT, CABLE TO STARTER MOTOR
    NUT, CABLE TO STARTER MOTOR
  • 30
    84-93389A3 CABLE, STARTER MOTOR TO STARTER SOLENOID
    (YELLOW)
    CABLE, STARTER MOTOR TO STARTER SOLENOID
    (YELLOW)
  • 31
    84-93388A14 GROUND WIRE
    STARTER MOTOR TO FRONT SUPPORT BRACKET
    GROUND WIRE
    STARTER MOTOR TO FRONT SUPPORT BRACKET
  • 32
    10-69035 SCREW, GROUND WIRE TO STARTER MOTOR (5/8")
    SCREW, GROUND WIRE TO STARTER MOTOR (5/8")
  • 33
    25661T1 SOLENOID, STARTER
    SOLENOID, STARTER
  • 34
    10-69028 SCREW, STARTER SOLENOID TO FRONT
    SUPPORT BRACKET (3/4")
    SCREW, STARTER SOLENOID TO FRONT
    SUPPORT BRACKET (3/4")
  • 35
    13-26992 WASHER, STARTER SOLENOID SCREW
    WASHER, STARTER SOLENOID SCREW
  • 36
    13-26996 LOCKWASHER, STARTER SOLENOID TERMINAL
    (#10)
    LOCKWASHER, STARTER SOLENOID TERMINAL
    (#10)
  • 37
    11-68219 NUT, STARTER SOLENOID TERMINAL
    (#10)
    NUT, STARTER SOLENOID TERMINAL
    (#10)
  • 38
    38938 BOOT, RUBBER - STARTER SOLENOID TERMINAL
    (SMALL)
    BOOT, RUBBER - STARTER SOLENOID TERMINAL
    (SMALL)
  • 39
    13-26993 LOCKWASHER, STARTER SOLENOID TERMINAL
    (5/16")
    LOCKWASHER, STARTER SOLENOID TERMINAL
    (5/16")
  • 40
    11-22053 NUT, STARTER SOLENOID TERMINAL (5/16")
    NUT, STARTER SOLENOID TERMINAL (5/16")
  • 41
    46265 BOOT, RUBBER - STARTER SOLENOID TERMINAL
    (LARGE)
    BOOT, RUBBER - STARTER SOLENOID TERMINAL
    (LARGE)
  • 42
    54-24871 CLAMP, CHOKE SOLENOID LEAD WIRE
    CLAMP, CHOKE SOLENOID LEAD WIRE
  • 43
    8M0084613 "C" WASHER, LEAD WIRE CLAMP
    "C" WASHER, LEAD WIRE CLAMP
  • 44
    10-62568 SCREW, CLAMP ATTACHING (3/8")
    SCREW, CLAMP ATTACHING (3/8")
