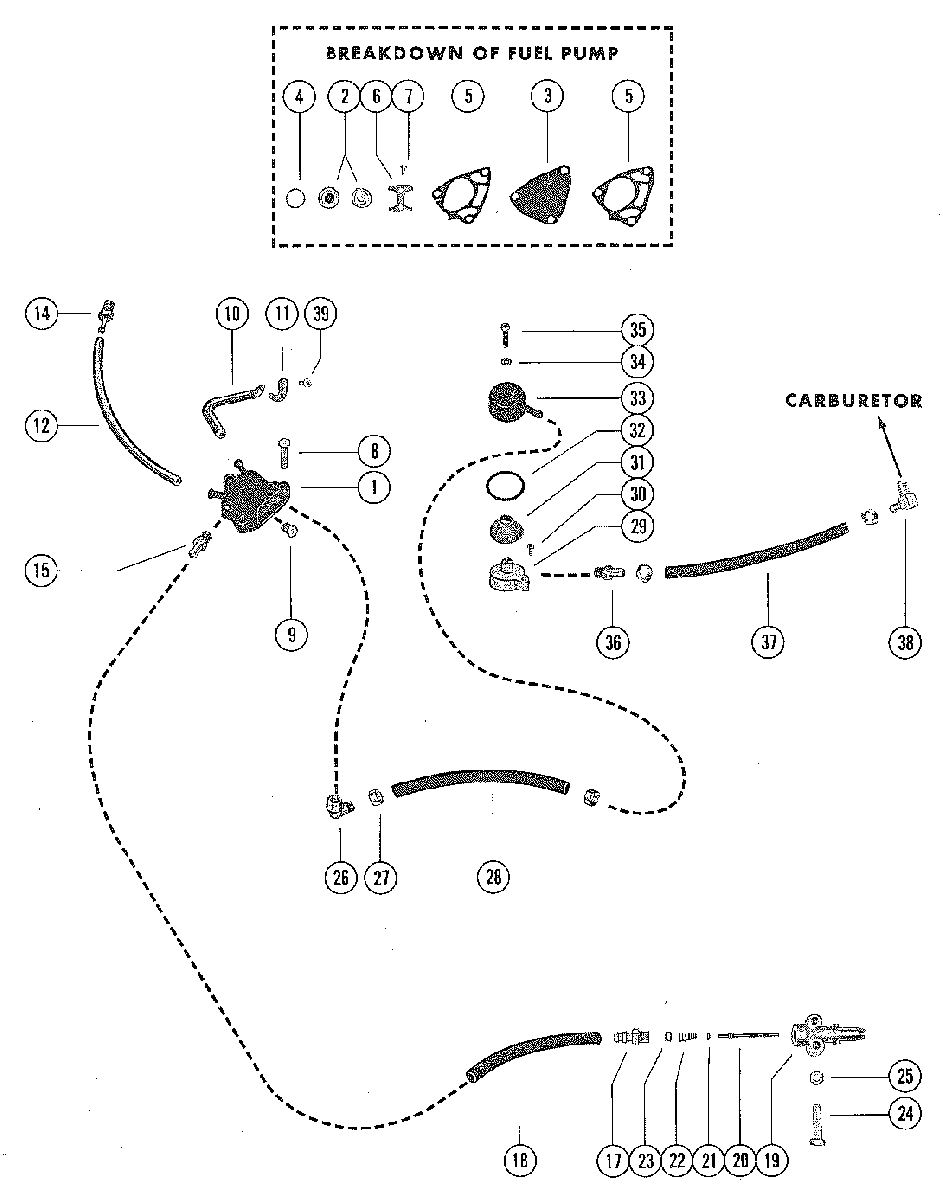

FUEL PUMP ASSEMBLY AND FUEL LINES для Mercury - 402, 40 (2 CYL.) 4860103 THRU 5556229

  • №
    Артикул
    Название
  • 1
    62973A4 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 2
    21-30430A3 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    55278A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 4
    90-8M0143356 GASKET, CHECK VALVE TO HOUSING
    GASKET, CHECK VALVE TO HOUSING
  • 5
    90-8M0143356 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 6
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 7
    10-43725 SCREW, RETAINER TO HOUSING
    SCREW, RETAINER TO HOUSING
  • 8
    10-69093 SCREW, FUEL PUMP MOUNTING (1 1/2")
    SCREW, FUEL PUMP MOUNTING (1 1/2")
  • 9
    22-328022 PLUG, PIPE - FUEL PUMP
    PLUG, PIPE - FUEL PUMP
  • 10
    69791A2 HOSE AND NOZZLE, TELL TALE
    PART OF BOTTOM COWL ASSEMBLY
    HOSE AND NOZZLE, TELL TALE
    PART OF BOTTOM COWL ASSEMBLY
  • 11
    66849 CLAMP, TELL TALE HOSE AND NOZZLE
    PART OF BOTTOM COWL ASSEMBLY
    CLAMP, TELL TALE HOSE AND NOZZLE
    PART OF BOTTOM COWL ASSEMBLY
  • 12
    32-8M0108355 HOSE ASSEMBLY, CYLINDER BLOCK TO FUEL PUMP
    (11")
    HOSE ASSEMBLY, CYLINDER BLOCK TO FUEL PUMP
    (11")
  • 14
    22-291112 FITTING, BLOCK TO FUEL PUMP HOSE
    FITTING, BLOCK TO FUEL PUMP HOSE
  • 15
    22-64705 FITTING, PUMP INLET
    FITTING, PUMP INLET
  • 17
    22-63187 FITTING, FUEL LINE TO ADAPTOR
    FITTING, FUEL LINE TO ADAPTOR
  • 18
    32-8M0108355 FUEL LINE, FUEL PUMP TO ADAPTOR (12 1/4")
    FUEL LINE, FUEL PUMP TO ADAPTOR (12 1/4")
  • 19
    22833 ADAPTOR, CHECK UNIT (FUEL PUMP)
    ADAPTOR, CHECK UNIT (FUEL PUMP)
  • 20
    23069 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 21
    25-16524 "O" RING, ADAPTOR STEM
    "O" RING, ADAPTOR STEM
  • 22
    24-23067T SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 23
    30188 CUP WASHER, ADAPTOR
    CUP WASHER, ADAPTOR
  • 24
    10-56500 SCREW, ADAPTOR TO BOTTOM COWL (1 1/4")
    SCREW, ADAPTOR TO BOTTOM COWL (1 1/4")
  • 25
    11-36069 NUT, ADAPTOR SCREW
    NUT, ADAPTOR SCREW
  • 26
    22-19688 ELBOW, PUMP OUTLET (90)
    ELBOW, PUMP OUTLET (90)
  • 27
    54-68424 CLAMP, FUEL LINE ATTACHING
    CLAMP, FUEL LINE ATTACHING
  • 28
    32-8M0108355 FUEL LINE, FUEL PUMP TO FILTER COVER (4 1/2")
    FUEL LINE, FUEL PUMP TO FILTER COVER (4 1/2")
  • 29
    70929 BASE, FUEL PUMP
    BASE, FUEL PUMP
  • 30
    10-71913 SCREW, BASE TO TRANSFER PORT COVER
    SCREW, BASE TO TRANSFER PORT COVER
  • 31
    35-59072 SCREEN, FILTER - INLET
    SCREEN, FILTER - INLET
  • 32
    25-35480 "O" RING, COVER TO HOUSING
    "O" RING, COVER TO HOUSING
  • 33
    35-91078A1 COVER, FUEL INLET
    COVER, FUEL INLET
  • 34
    27-25848 GASKET, NYLON - FILTER COVER SCREW
    GASKET, NYLON - FILTER COVER SCREW
  • 35
    10-37370 SCREW, COVER TO FUEL PUMP (5/8")
    SCREW, COVER TO FUEL PUMP (5/8")
  • 36
    22-64705 FITTING, FILTER BASE
    FITTING, FILTER BASE
  • 37
    32-8M0108355 FUEL LINE, FILTER COVER TO PUMP (6")
    FUEL LINE, FILTER COVER TO PUMP (6")
  • 38
    22-19688 FITTING, ELBOW - CARBURETOR
    FITTING, ELBOW - CARBURETOR
  • 39
    10-48409 SCREW, CLAMP TO BOTTOM COWL
    SCREW, CLAMP TO BOTTOM COWL
