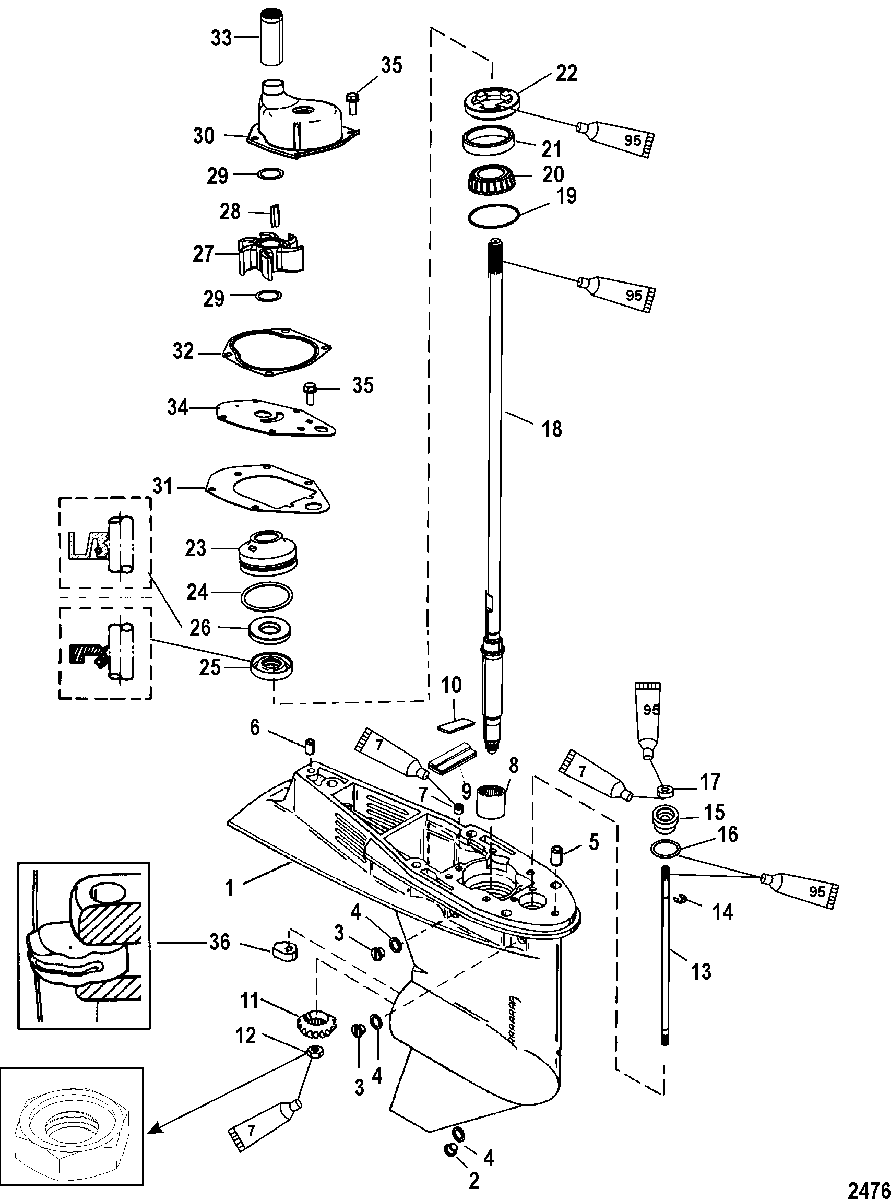

Gear Housing, Driveshaft 1.64:1 Gear Ratio для Mercury - 40 JET 0P094500 THRU 0P325499
-
№АртикулНазвание
-
01671-9760T23 GEAR HOUSING ASSEMBLY, Complete
(Short)GEAR HOUSING ASSEMBLY, Complete
(Short) -
01671-9760T25 GEAR HOUSING ASSEMBLY, Complete
(Long)GEAR HOUSING ASSEMBLY, Complete
(Long) -
01671-9760T28 GEAR HOUSING ASSEMBLY, Complete
(LL)GEAR HOUSING ASSEMBLY, Complete
(LL) -
11671-9760T42 GEAR HOUSING ASSEMBLY, Basic
(Basic)GEAR HOUSING ASSEMBLY, Basic
(Basic) -
210-79953Q04 SCREW KIT, (.375-16 x .250) DrainSCREW KIT, (.375-16 x .250) Drain
-
222-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain
(Magnetic)FITTING KIT, Magnetic, Plug Fill/Drain
(Magnetic) -
310-79953Q04 SCREW KIT, (.375-16 x .250) DrainSCREW KIT, (.375-16 x .250) Drain
-
412-191833 WASHERWASHER
-
517-8M0084244 PIN, Dowel - With Hole (.375 x .625)PIN, Dowel - With Hole (.375 x .625)
-
617-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
722-56800 PLUG, Pipe (.0625-27)PLUG, Pipe (.0625-27)
-
831-812768 BEARING, RollerBEARING, Roller
-
9818226A1 SEAL/PLATE KITSEAL/PLATE KIT
-
10NSS NOT SOLD SEPARATE, Filler PlateNOT SOLD SEPARATE, Filler Plate
-
1143-813694T GEAR, Pinion, 14 TeethGEAR, Pinion, 14 Teeth
-
1211-55910 NUT, (.437-20)NUT, (.437-20)
-
13812732A1 SHIFT SHAFT ASSEMBLY
(Short/LongSHIFT SHAFT ASSEMBLY
(Short/Long -
13815420 SHIFT SHAFT
(LL)SHIFT SHAFT
(LL) -
1453-29641 E RINGE RING
-
1523-813696A2 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
1625-45258 O-RING, (.987 x .103)O-RING, (.987 x .103)
-
1726-8164641 SEAL, OilSEAL, Oil
-
1845-815422 DRIVESHAFT
(Short-60 Electric)DRIVESHAFT
(Short-60 Electric) -
1845-812731 DRIVESHAFT
(Long-60 Electric)DRIVESHAFT
(Long-60 Electric) -
1845-815421 DRIVESHAFT
(LL)(60 Electric)DRIVESHAFT
(LL)(60 Electric) -
1845-812731 DRIVESHAFT
(55 Manual)DRIVESHAFT
(55 Manual) -
1915-8M0063262 SHIM SETSHIM SET
-
2031-77420A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
21NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
2211-8128201 NUTNUT
-
2346-812966A7 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
2425-30224 O-RING, (1.859 x .139)O-RING, (1.859 x .139)
-
2526-814669 SEAL, OilSEAL, Oil
-
2626-814670 SEAL, OilSEAL, Oil
-
2747-19453T IMPELLERIMPELLER
-
2828-8M0032831 KEYKEY
-
2912-8M0005777 WASHERWASHER
-
3046-812966A12 PUMP ASSEMBLY, WaterPUMP ASSEMBLY, Water
-
3127-8M4502052 GASKET
(Lower)GASKET
(Lower) -
3227-822189 GASKET, Upper Water Pump
(Upper)GASKET, Upper Water Pump
(Upper) -
3343023 SEAL
(Short/Long)SEAL
(Short/Long) -
3419700A2 FACE PLATEFACE PLATE
-
3510-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
36760394 CAM, Shift ControlCAM, Shift Control
-
-27-812867A97 GASKET SETGASKET SET
-
-46-812966A12 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
-
-26-814669A2 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
