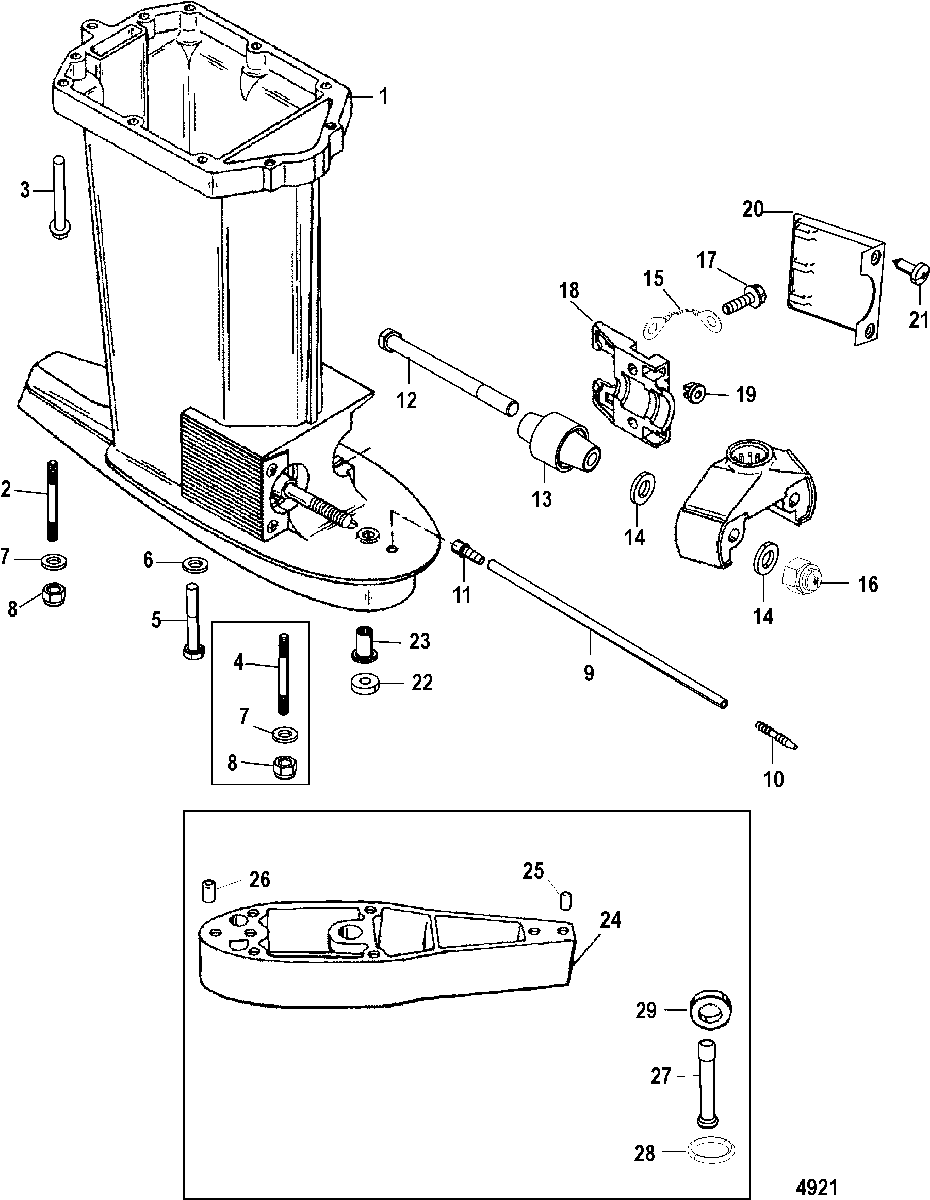

Driveshaft Housing для Mercury - 40 JET 0P094500 THRU 0P325499

  • №
    Артикул
    Название
  • 1
    3516-816528A1 HOUSING ASSEMBLY, Driveshaft
    (Short-15 Inch)
    HOUSING ASSEMBLY, Driveshaft
    (Short-15 Inch)
  • 1
    3510-9864T6 HOUSING, Driveshaft
    (Long-20 Inch)
    HOUSING, Driveshaft
    (Long-20 Inch)
  • 1
    3516-816528A3 HOUSING ASSEMBLY, Driveshaft
    (Jet 40/45)
    HOUSING ASSEMBLY, Driveshaft
    (Jet 40/45)
  • 2
    16-903507 STUD, (M10 x 60)
    (Short/Long)
    STUD, (M10 x 60)
    (Short/Long)
  • 2
    16-903501 STUD, (M10 x 100)
    (60 Bigfoot - Long)
    STUD, (M10 x 100)
    (60 Bigfoot - Long)
  • 2
    16-8M0034445 STUD, (M10 x 166)
    (60 Bigfoot - LL)
    STUD, (M10 x 166)
    (60 Bigfoot - LL)
  • 3
    10-817430110 SCREW, (M10 x 110)
    SCREW, (M10 x 110)
  • 4
    16-8M0034446 STUD, (M10 x 124)
    (60 Bigfoot - LL - Front)
    STUD, (M10 x 124)
    (60 Bigfoot - LL - Front)
  • 4
    16-8M0034425 STUD, (M10 x 120)
    (55 LL - Front)
    STUD, (M10 x 120)
    (55 LL - Front)
  • 5
    10-4000380 SCREW, (M10 x 45)
    (Short/Long)(Non Jet Models)
    SCREW, (M10 x 45)
    (Short/Long)(Non Jet Models)
  • 6
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    (Non Bigfoot Models)
    WASHER, (.406 x .750 x .105) Stainless Steel
    (Non Bigfoot Models)
  • 6
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    (Bigfoot Models)
    WASHER, (.406 x .750 x .105) Stainless Steel
    (Bigfoot Models)
  • 7
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    (Non Bigfoot Models)
    WASHER, (.406 x .750 x .105) Stainless Steel
    (Non Bigfoot Models)
  • 7
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    (Bigfoot Models)
    WASHER, (.406 x .750 x .105) Stainless Steel
    (Bigfoot Models)
  • 8
    11-40140 NUT, (M10)
    (Non Bigfoot Models)
    NUT, (M10)
    (Non Bigfoot Models)
  • 8
    11-40140 NUT, (M10)
    (Bigfoot Models)
    NUT, (M10)
    (Bigfoot Models)
  • 9
    22-85822A7 SPEEDOMETER PICK UP
    SPEEDOMETER PICK UP
  • 10
    22-85822T CONNECTOR, Straight
    CONNECTOR, Straight
  • 11
    22-13035002 FITTING
    FITTING
  • 12
    10-898835001 BOLT, (M12 x 154)
    BOLT, (M12 x 154)
  • 13
    42930A1 MOUNT ASSEMBLY, Lower
    MOUNT ASSEMBLY, Lower
  • 14
    12-20959 WASHER
    WASHER
  • 15
    88238A10 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 16
    11-43528 NUT, (M12)
    NUT, (M12)
  • 17
    10-40011149 SCREW, (M8 x 25) Stainless Steel
    SCREW, (M8 x 25) Stainless Steel
  • 18
    8M0036730 CLAMP
    CLAMP
  • 19
    11-35521 NUT
    NUT
  • 20
    100-8M4500752 COVER, Black
    (Black)
    COVER, Black
    (Black)
  • 21
    10-88417 SCREW, (#12-24 x .620)
    SCREW, (#12-24 x .620)
  • 22
    23-813745 SPACER
    SPACER
  • 22
    23-8137451 SPACER (LL)
    SPACER (LL)
  • 23
    43585 COUPLING
    COUPLING
  • 24
    816696A3 SPACER
    (Black-55)
    SPACER
    (Black-55)
  • 24
    816696T5 SPACER
    (Black-60)
    SPACER
    (Black-60)
  • 25
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 26
    17-8M0084244 PIN, Dowel - With Hole (.375 x .625)
    PIN, Dowel - With Hole (.375 x .625)
  • 27
    817401A1 TUBE ASSEMBLY, Water
    (55)
    TUBE ASSEMBLY, Water
    (55)
  • 29
    25-21836 O-RING, (.796 x .139)
    O-RING, (.796 x .139)
  • 29
    26-821093 SEAL
    SEAL
