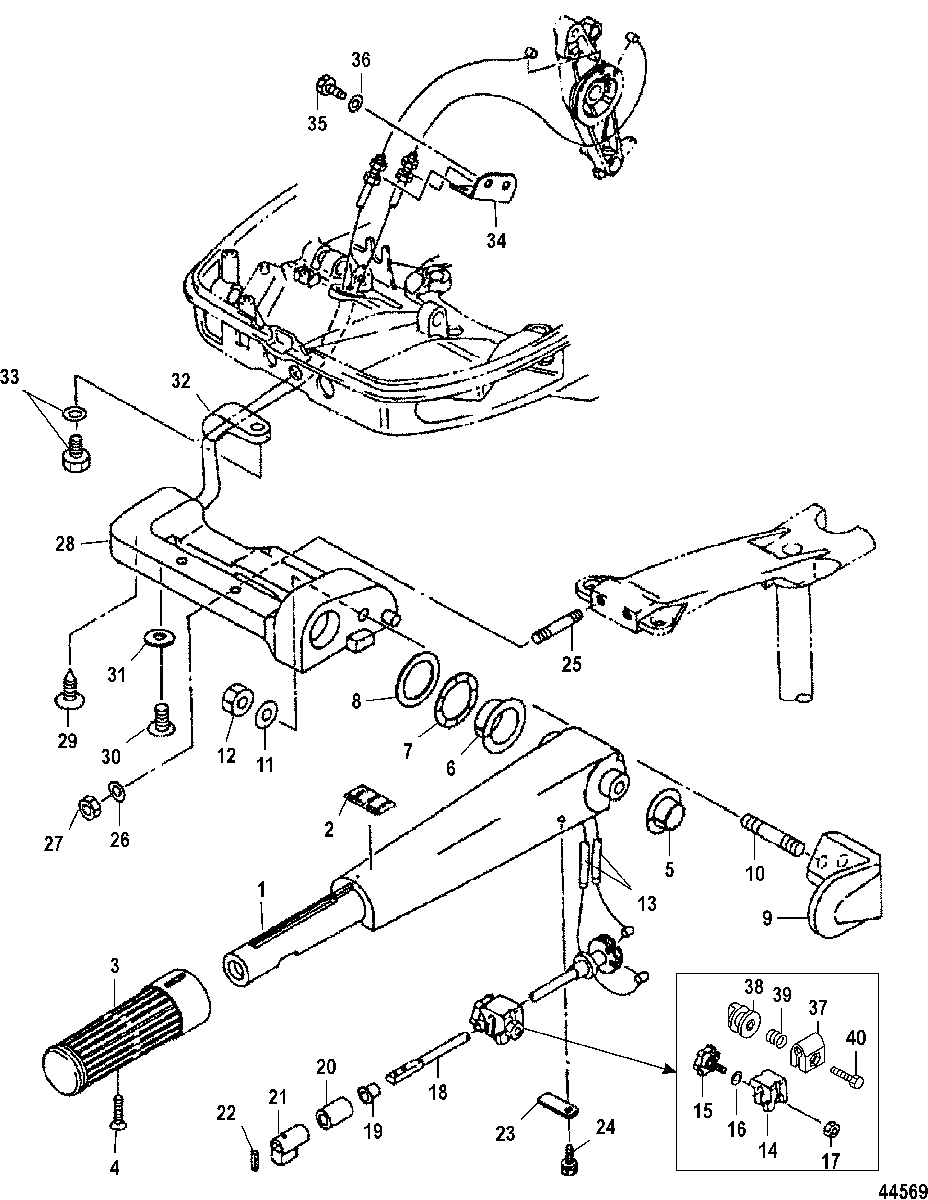

Steering Handle для Mercury - 40 (International) 0N056165 & Up

  • №
    Артикул
    Название
  • -
    8M0133053 HANDLE KIT
    SN# 0N114790 & Below
    HANDLE KIT
    SN# 0N114790 & Below
  • -
    8M0133053 HANDLE KIT
    SN# 0N114791 & Up
    HANDLE KIT
    SN# 0N114791 & Up
  • 1
    803996T04 HANDLE, Steering
    SN# 0N114790 & Below
    HANDLE, Steering
    SN# 0N114790 & Below
  • 1
    8M0047218 HANDLE, Steering
    SN# 0N114791 & Up
    HANDLE, Steering
    SN# 0N114791 & Up
  • 2
    37-8M0097201 DECAL
    DECAL
  • 3
    160861 GRIP
    GRIP
  • 4
    10-8150461 SCREW
    SCREW
  • 5
    23-8518582 BUSHING
    BUSHING
  • 6
    23-8518581 BUSHING
    BUSHING
  • 7
    13-804017 WAVE WASHER
    WAVE WASHER
  • 8
    12-804508 WASHER
    WASHER
  • 9
    8M0077708 HOLDER ASSEMBLY, Steering Handle
    HOLDER ASSEMBLY, Steering Handle
  • 10
    16-879194300 STUD
    STUD
  • 11
    12-168261 WASHER
    WASHER
  • 12
    11-85372215 NUT
    NUT
  • 13
    84-804018001 WIRE, Throttle
    WIRE, Throttle
  • 14
    813026 FRICTION PIECE
    SN# 0N114790 & Below
    FRICTION PIECE
    SN# 0N114790 & Below
  • 15
    10-16087 SCREW, Adjusting
    SN# 0N114790 & Below
    SCREW, Adjusting
    SN# 0N114790 & Below
  • 16
    12-16826 WASHER, Stainless Steel
    SN# 0N114790 & Below
    WASHER, Stainless Steel
    SN# 0N114790 & Below
  • 17
    11-400212 NUT, (M6) Stainless Steel
    SN# 0N114790 & Below
    NUT, (M6) Stainless Steel
    SN# 0N114790 & Below
  • 18
    803998 SHAFT, Throttle
    SHAFT, Throttle
  • 19
    23-8M0130166 BUSHING
    BUSHING
  • 20
    23-16191 SPACER
    SPACER
  • 21
    23-8537152 SPACER
    SPACER
  • 22
    18-8150263 COTTER PIN
    COTTER PIN
  • 23
    804055 BRACKET, Support
    BRACKET, Support
  • 24
    10-8230427 BOLT, (M6 x 12)
    BOLT, (M6 x 12)
  • 25
    16-879194297 STUD
    SN# ON175257 & Below
    STUD
    SN# ON175257 & Below
  • 25
    8M0074787 STUD
    SN# ON175258 & Up
    STUD
    SN# ON175258 & Up
  • 26
    12-16192 WASHER
    SN# ON175257 & Below
    WASHER
    SN# ON175257 & Below
  • 26
    12-8M0074789 WASHER
    SN# ON175258 & Up
    WASHER
    SN# ON175258 & Up
  • 27
    11-95374 NUT, Nylon
    SN# ON175257 & Below
    NUT, Nylon
    SN# ON175257 & Below
  • 27
    11-8M0074788 NUT
    SN# ON175258 & Up
    NUT
    SN# ON175258 & Up
  • 28
    804019005 BRACKET, Steering
    SN# ON175257 & Below
    BRACKET, Steering
    SN# ON175257 & Below
  • 28
    8M0074786 BRACKET, Steering
    SN# ON175258 & Up
    BRACKET, Steering
    SN# ON175258 & Up
  • 29
    10-162636 BOLT
    BOLT
  • 30
    10-85554410 SCREW
    SCREW
  • 31
    12-953921 WASHER
    WASHER
  • 32
    54-953951 CLAMP
    CLAMP
  • 33
    10-8230427 BOLT
    BOLT
  • 34
    8537392 BRACKET, Throttle Link
    BRACKET, Throttle Link
  • 35
    10-16223 BOLT, (M6 x 14)
    BOLT, (M6 x 14)
  • 36
    12-16826 WASHER, Stainless Steel
    WASHER, Stainless Steel
  • 37
    898101311 FRICTION PIECE
    SN# 0N114791 & Up
    FRICTION PIECE
    SN# 0N114791 & Up
  • 38
    8M0051383 NUT
    SN# 0N114791 & Up
    NUT
    SN# 0N114791 & Up
  • 39
    24-8M0051384 SPRING, Stainless Steel
    SN# 0N114791 & Up
    SPRING, Stainless Steel
    SN# 0N114791 & Up
  • 40
    10-4000330 BOLT
    SN# 0N114791 & Up
    BOLT
    SN# 0N114791 & Up
