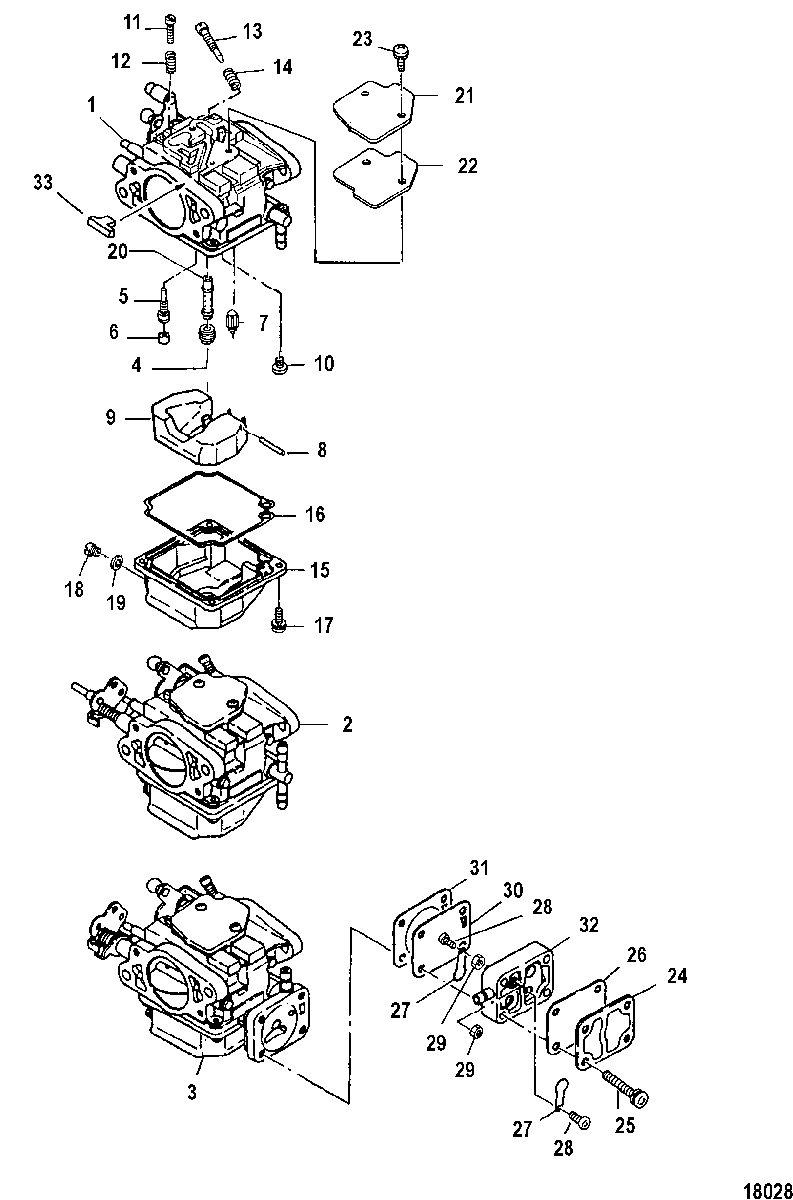

Carburetor для Mercury - 40 (International) 0N056165 & Up

  • №
    Артикул
    Название
  • 1
    3303-853720A10 CARBURETOR (Upper)
    (40)
    CARBURETOR (Upper)
    (40)
  • 1
    3303-853720A09 CARBURETOR (Upper)
    (40 Lightning XR/50)
    CARBURETOR (Upper)
    (40 Lightning XR/50)
  • 2
    3303-853720A11 CARBURETOR (Center)
    (40)
    CARBURETOR (Center)
    (40)
  • 2
    3303-853720A6 CARBURETOR (Center)
    (40 Lightning XR/50)
    CARBURETOR (Center)
    (40 Lightning XR/50)
  • 3
    3303-853720A13 CARBURETOR (Lower)
    (40)
    CARBURETOR (Lower)
    (40)
  • 3
    3303-853720T12 CARBURETOR (Lower)
    (40 Lightning XR/50)
    CARBURETOR (Lower)
    (40 Lightning XR/50)
  • 4
    162503 JET, Main (#122)
    (40)
    JET, Main (#122)
    (40)
  • 4
    803883 JET, Main (#132) (Upper/Center)
    (40 Lightning XR/50)
    JET, Main (#132) (Upper/Center)
    (40 Lightning XR/50)
  • 4
    162504 JET, Main (#135) (Lower)
    (40 Lightning XR/50)
    JET, Main (#135) (Lower)
    (40 Lightning XR/50)
  • 5
    162513 JET, Pilot (#66)
    (40)
    JET, Pilot (#66)
    (40)
  • 5
    803689 JET, Pilot (#80)
    (40 Lightning XR/50)
    JET, Pilot (#80)
    (40 Lightning XR/50)
  • 6
    19-855566 PLUG
    PLUG
  • 7
    162545 FLOAT NEEDLE
    FLOAT NEEDLE
  • 8
    17-162561 PIN
    PIN
  • 9
    162532 FLOAT
    FLOAT
  • 10
    10-8536981 SCREW
    SCREW
  • 11
    10-8M0054702 SCREW (Upper Carburetor)
    SCREW (Upper Carburetor)
  • 12
    10-803509A17 SPRING, (11 mm) (Upper Carburetor)
    SPRING, (11 mm) (Upper Carburetor)
  • 13
    10-8129355 SCREW, Idle Adjusting
    SCREW, Idle Adjusting
  • 14
    10-803509A17 SPRING, (11 mm)
    SPRING, (11 mm)
  • 15
    162583 FLOAT BOWL (Upper/Center Carburetor)
    FLOAT BOWL (Upper/Center Carburetor)
  • 15
    162584 FLOAT BOWL (Lower Carburetor)
    FLOAT BOWL (Lower Carburetor)
  • 16
    27-855567 GASKET
    GASKET
  • 17
    10-162603 SCREW
    SCREW
  • 18
    10-8M0054703 SCREW, Drain
    SCREW, Drain
  • 19
    27-8555671 GASKET
    GASKET
  • 20
    8126502 MAIN NOZZLE
    (40)
    MAIN NOZZLE
    (40)
  • 20
    812650018 MAIN NOZZLE
    (40 Lightning XR/50)
    MAIN NOZZLE
    (40 Lightning XR/50)
  • 21
    8555401 COVER, Carburetor
    COVER, Carburetor
  • 22
    27-8555412 GASKET
    GASKET
  • 23
    10-809571003 SCREW
    SCREW
  • 24
    855568 COVER (Lower Carburetor)
    COVER (Lower Carburetor)
  • 25
    10-8M0062252 SCREW (Lower Carburetor)
    SCREW (Lower Carburetor)
  • 26
    27-855569 GASKET (Lower Carburetor)
    GASKET (Lower Carburetor)
  • 27
    21-851812 CHECK VALVE (Lower Carburetor)
    CHECK VALVE (Lower Carburetor)
  • 28
    10-851813 SCREW (Lower Carburetor)
    SCREW (Lower Carburetor)
  • 29
    11-851814 NUT (Lower Carburetor)
    NUT (Lower Carburetor)
  • 30
    8537312 DIAPHRAGM (Lower Carburetor)
    DIAPHRAGM (Lower Carburetor)
  • 31
    27-8555691 GASKET (Lower Carburetor)
    GASKET (Lower Carburetor)
  • 32
    8537291 HOUSING, Pump (Lower Carburetor)
    HOUSING, Pump (Lower Carburetor)
  • 33
    25-8M0065583 GROMMET
    GROMMET
  • -
    853780A2 REPAIR KIT, Carburetor
    REPAIR KIT, Carburetor
