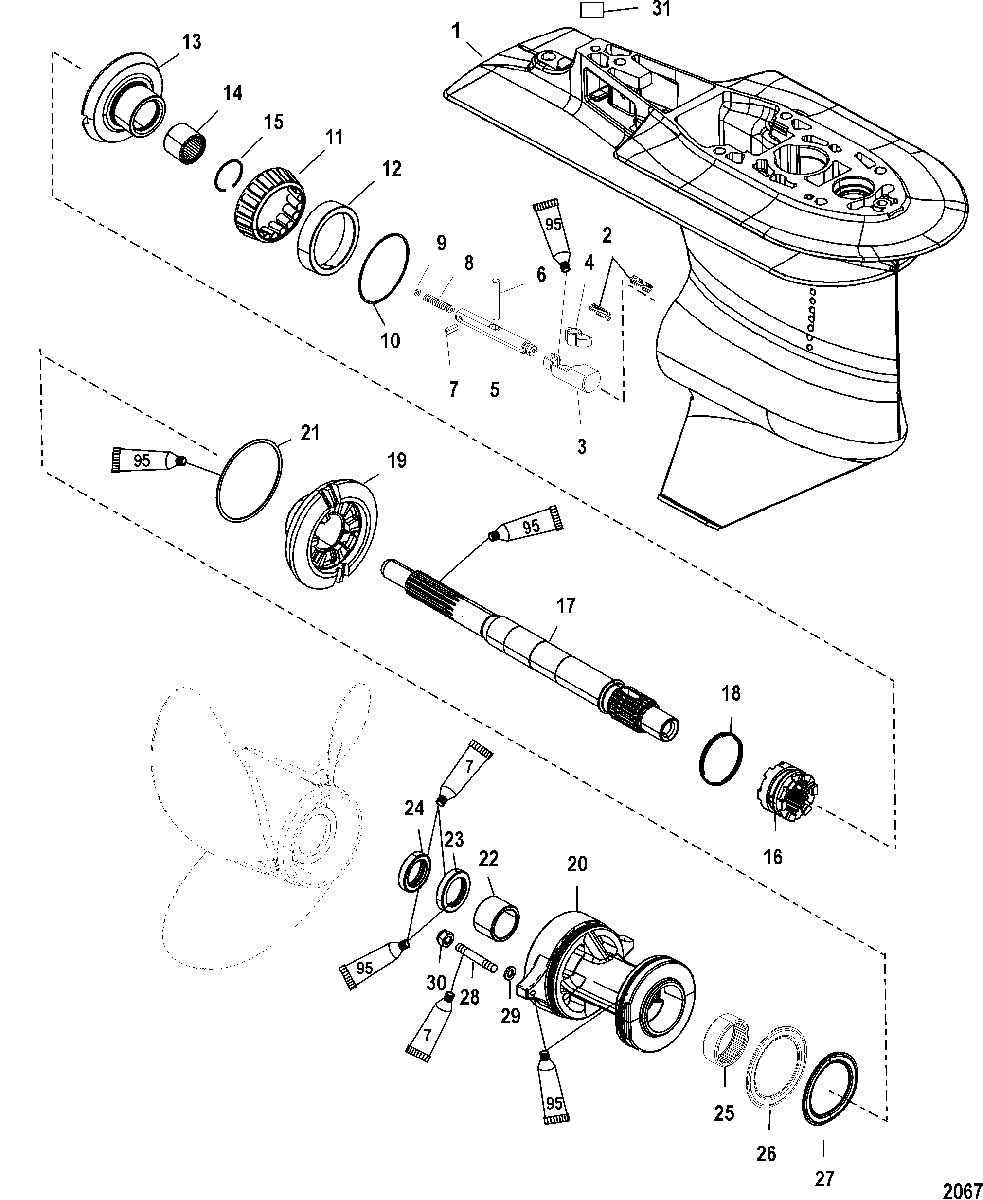

Gear Housing, Propeller Shaft - 2.33:1 Gear Ratio для Mercury - 40 EFI (4 CYL.)(4-STROKE)(JET) 1C051324 & Up
-
№АртикулНазвание
-
-1600-8M0118186 GEAR HOUSING ASSEMBLY, Complete (Long)GEAR HOUSING ASSEMBLY, Complete (Long)
-
-1600-8M0118188 GEAR HOUSING ASSEMBLY, Complete (X-Long)GEAR HOUSING ASSEMBLY, Complete (X-Long)
-
11600-8M0118594 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
28227731 INSERT, ThreadedINSERT, Threaded
-
3899070 FOLLOWER, CamFOLLOWER, Cam
-
48M4504018 CAM, ShiftCAM, Shift
-
5888806 ROD, Clutch ActuatorROD, Clutch Actuator
-
617-8M0084243 PIN, CrossPIN, Cross
-
717-8M0084245 PIN, Spring LocatorPIN, Spring Locator
-
824-79910 SPRINGSPRING
-
912-78910 WASHERWASHER
-
1015-8M0063266 SHIM SETSHIM SET
-
1131-30894A1 BEARING SET, Cup And ConeBEARING SET, Cup And Cone
-
12NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
1343-882813A3 GEAR KIT, Forward And Pinion 28 TeethGEAR KIT, Forward And Pinion 28 Teeth
-
1431-30895T BEARING, NeedleBEARING, Needle
-
1553-856823 RING, RetainingRING, Retaining
-
1652-888805T CLUTCHCLUTCH
-
1744-8M0140444 PROPELLER SHAFTPROPELLER SHAFT
-
1824-30893 SPRINGSPRING
-
1943-889990T GEAR, ReverseGEAR, Reverse
-
2012596T2 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
2125-861844 O-RINGO-RING
-
2231-30956T BEARING, NeedleBEARING, Needle
-
2326-70080 SEAL, Oil, InnerSEAL, Oil, Inner
-
2426-70081 SEAL, Oil, OuterSEAL, Oil, Outer
-
2531-12578T BEARING, RollerBEARING, Roller
-
2612-12577 THRUST WASHERTHRUST WASHER
-
2731-12576 BEARING, ThrustBEARING, Thrust
-
2816-8M0034456 STUD, (M8 x 48)STUD, (M8 x 48)
-
2912-855941 WASHER, (.323 x .590 x .112) Stainless SteelWASHER, (.323 x .590 x .112) Stainless Steel
-
3011-401378 NUT, (M8)NUT, (M8)
-
31NSS NOT SOLD SEPARATE, Decal-Gearcase Pinion IdentificationNOT SOLD SEPARATE, Decal-Gearcase Pinion Identification
-
-26-43035A05 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-43-882813A3 GEAR KIT, Forward And Pinion 28 TeethGEAR KIT, Forward And Pinion 28 Teeth
-
-31-803496T2 BEARING/SEAL KITBEARING/SEAL KIT
-
-52-888805A00 REPAIR KIT, Clutch And Cam FollowerREPAIR KIT, Clutch And Cam Follower
