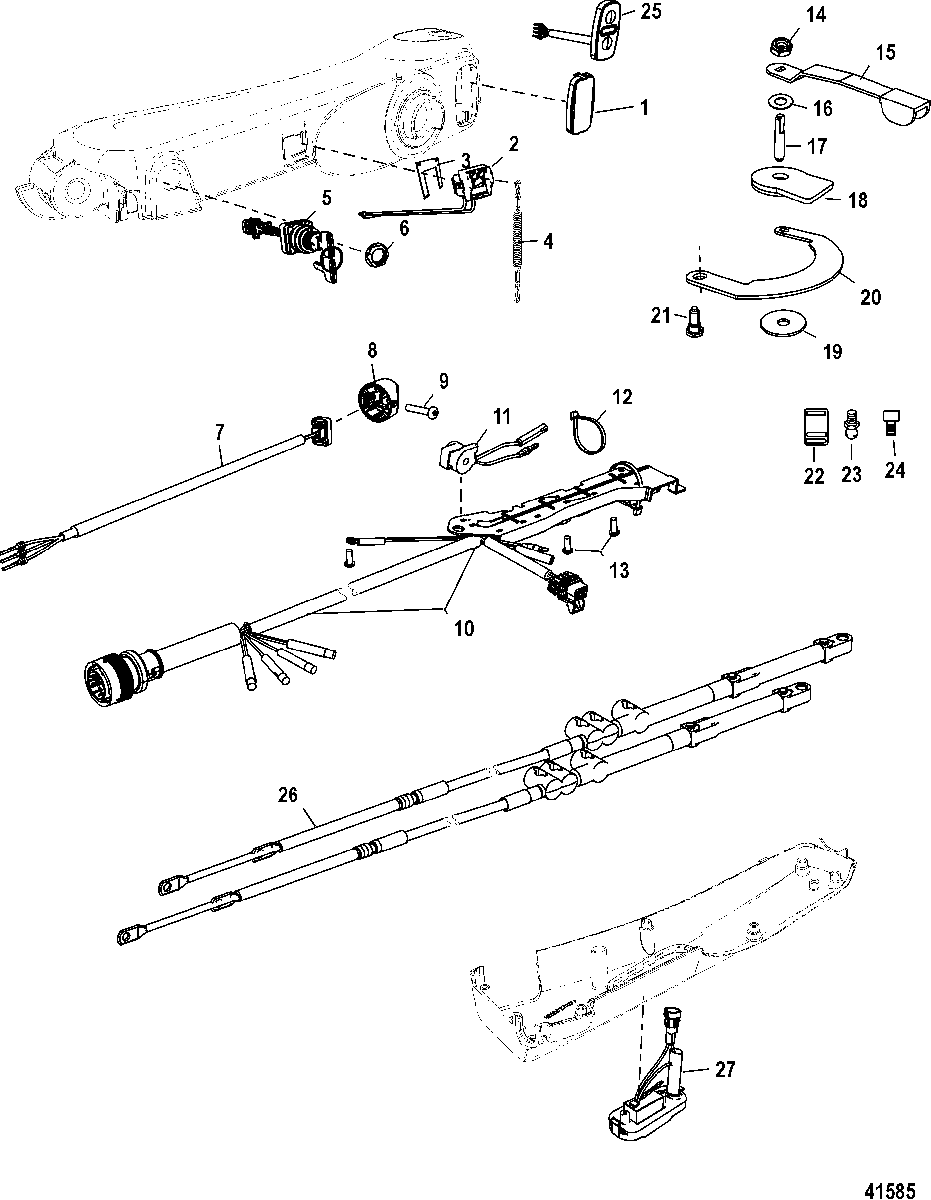

Big Tiller Handle Kit Components, 40-60 EFI 4-Stroke, Manual для Mercury - 40 EFI (4 CYL.)(4-STROKE)(JET) 1C051324 & Up
-
№АртикулНазвание
-
-879291A04 TILLER HANDLE ASSEMBLY, Big Tiller, 40-60 EFI FourStroke, Manual Mechanical Non Power Steering
40-50-60 EFI FourStrokeTILLER HANDLE ASSEMBLY, Big Tiller, 40-60 EFI FourStroke, Manual Mechanical Non Power Steering
40-50-60 EFI FourStroke -
1879346T20 COVERCOVER
-
2879347A01 EMERGENCY STOP SWITCHEMERGENCY STOP SWITCH
-
38M0032846 RETAINER, BrassRETAINER, Brass
-
48M0092851 LANYARD ASSEMBLY, Stop Switch - 70 inchLANYARD ASSEMBLY, Stop Switch - 70 inch
-
587-897716K01 SWITCH KIT, Ignition (3 Position) With Keys
See Switch Kit parts breakdown for replacement keys.SWITCH KIT, Ignition (3 Position) With Keys
See Switch Kit parts breakdown for replacement keys. -
611-897716001 NUT, Plastic-Key SwitchNUT, Plastic-Key Switch
-
78M0125238 TRIM SWITCH ASSEMBLYTRIM SWITCH ASSEMBLY
-
88M0030401 CAP, Handle Trim SwitchCAP, Handle Trim Switch
-
910-4005685 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
10879347A03 HARNESS AND PLATE ASSEMBLYHARNESS AND PLATE ASSEMBLY
-
1184-8M3001068 ALARM ASSEMBLY, Audio WarningALARM ASSEMBLY, Audio Warning
-
1254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1310-4005685 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
1411-8M0042636 NUT, (.375-24) Stainless SteelNUT, (.375-24) Stainless Steel
-
15823792 LEVERLEVER
-
1612-29330 WASHERWASHER
-
17821961 RODROD
-
188M0006845 PLATE/DISC ASSEMBLY, BrakePLATE/DISC ASSEMBLY, Brake
-
198165621 DISCDISC
-
208M0007471 PLATE, Swivel HeadPLATE, Swivel Head
-
2110-768042 SHOULDER SCREW, HexSHOULDER SCREW, Hex
-
2237-8237011 DECAL, Co-PilotDECAL, Co-Pilot
-
2322-74036 FITTING, GreaseFITTING, Grease
-
2410-4008910 SCREW, (M8 x 10) Stainless SteelSCREW, (M8 x 10) Stainless Steel
-
2587-8M0083437 CONTROL KIT, TrollingCONTROL KIT, Trolling
-
268M0082354 THROTTLE AND SHIFT KIT, 40-60 EFI FourStroke (32.5 In. Shift, 36 In. Throttle)
Order Separate-Mechanical ApplicationTHROTTLE AND SHIFT KIT, 40-60 EFI FourStroke (32.5 In. Shift, 36 In. Throttle)
Order Separate-Mechanical Application -
2787-897978T02 LED LIGHT AND SWITCH KIT
Optional - Order SeparateLED LIGHT AND SWITCH KIT
Optional - Order Separate
