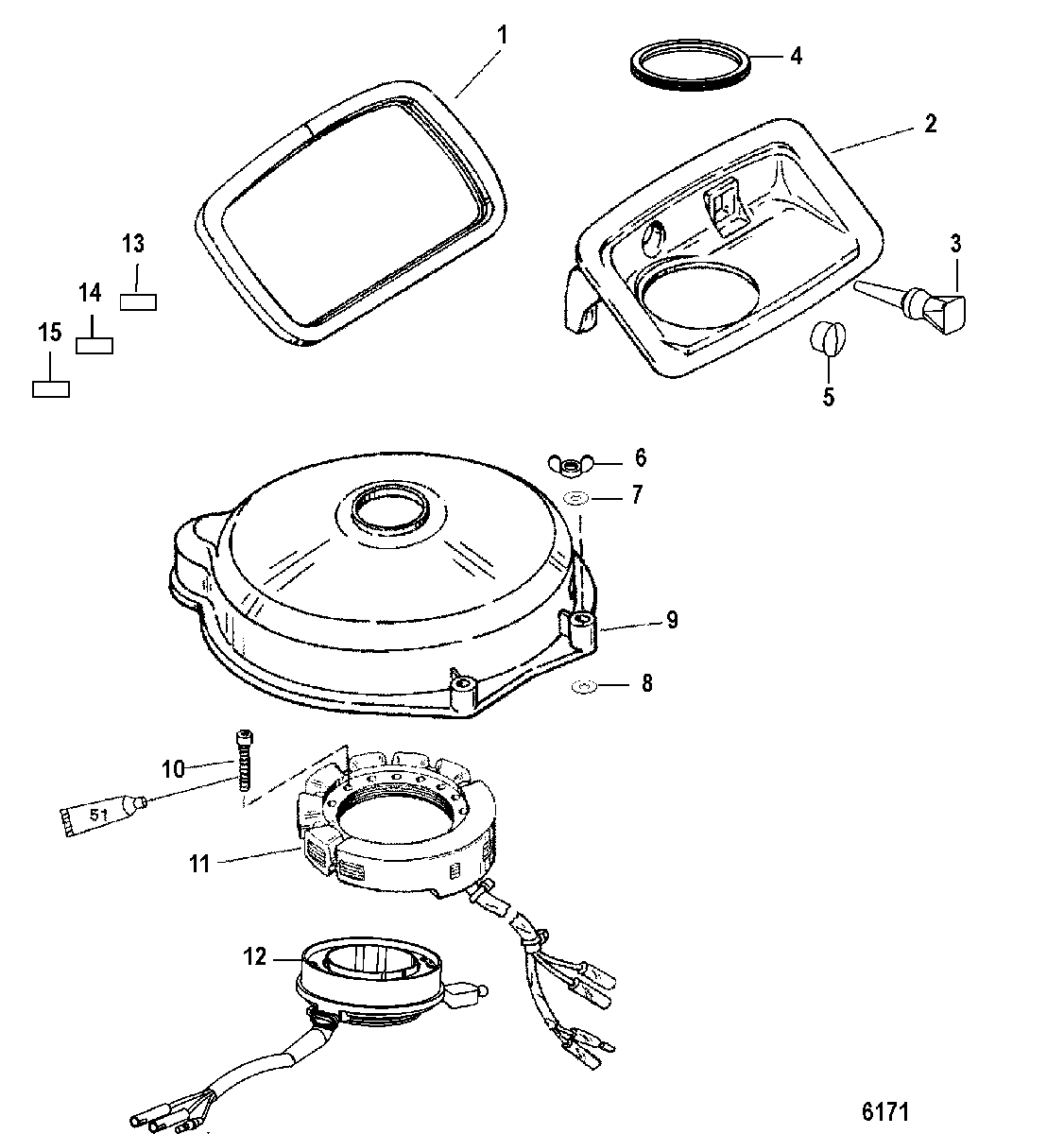

Stator/Trigger(Electric Models) для Mercury - 40 (2 CYL.) 0T980000 THRU 0T999999

  • №
    Артикул
    Название
  • 1
    8M0043416 SEAL
    SEAL
  • 2
    821788A1 REST KIT, Oil Injection
    REST KIT, Oil Injection
  • 3
    19-822513002 PLUG, Starter Handle
    PLUG, Starter Handle
  • 4
    823771001 GROMMET, Oil Tank
    GROMMET, Oil Tank
  • 5
    19-822464 PLUG
    PLUG
  • 6
    11-816872 WING NUT
    WING NUT
  • 7
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 8
    12-49221 WASHER, (.187 x .500 x .062) Neoprene, Neoprene
    WASHER, (.187 x .500 x .062) Neoprene, Neoprene
  • 9
    812777T1 COVER ASSEMBLY
    COVER ASSEMBLY
  • 10
    10-4013930 SCREW, (M5 x 30)
    SCREW, (M5 x 30)
  • 11
    398-832075A21 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • -
    84-11149A27 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 12
    853960T TRIGGER
    TRIGGER
  • 13
    37-804664A05 DECAL, EPA Label Information (2005)
    DECAL, EPA Label Information (2005)
  • 13
    37-804664A06 DECAL, EPA Label Information (2006)
    DECAL, EPA Label Information (2006)
  • 14
    NSS NOT SOLD SEPARATE, Decal-Caution in Gear Idle
    NOT SOLD SEPARATE, Decal-Caution in Gear Idle
  • 15
    NSS NOT SOLD SEPARATE, Decal-Timing
    NOT SOLD SEPARATE, Decal-Timing
